4 Tube ZC Fireplace Heater-With Blower - ZC Combo

Custom Firescreen
SKU:
NLE5GS_FHZCK
|
UPC:
190140862115
Availability:
In Stock: Ships in 1 to 2 weeks
$880.00
Low Stock!
Available

The ZCFH Fireplace Heater (for smaller fireplaces) was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500'F and will produce up to 48,000 BTUs of heat, enough to heat a large room or two. It's perfect for smaller fireplaces and zero-clearance fireplaces!

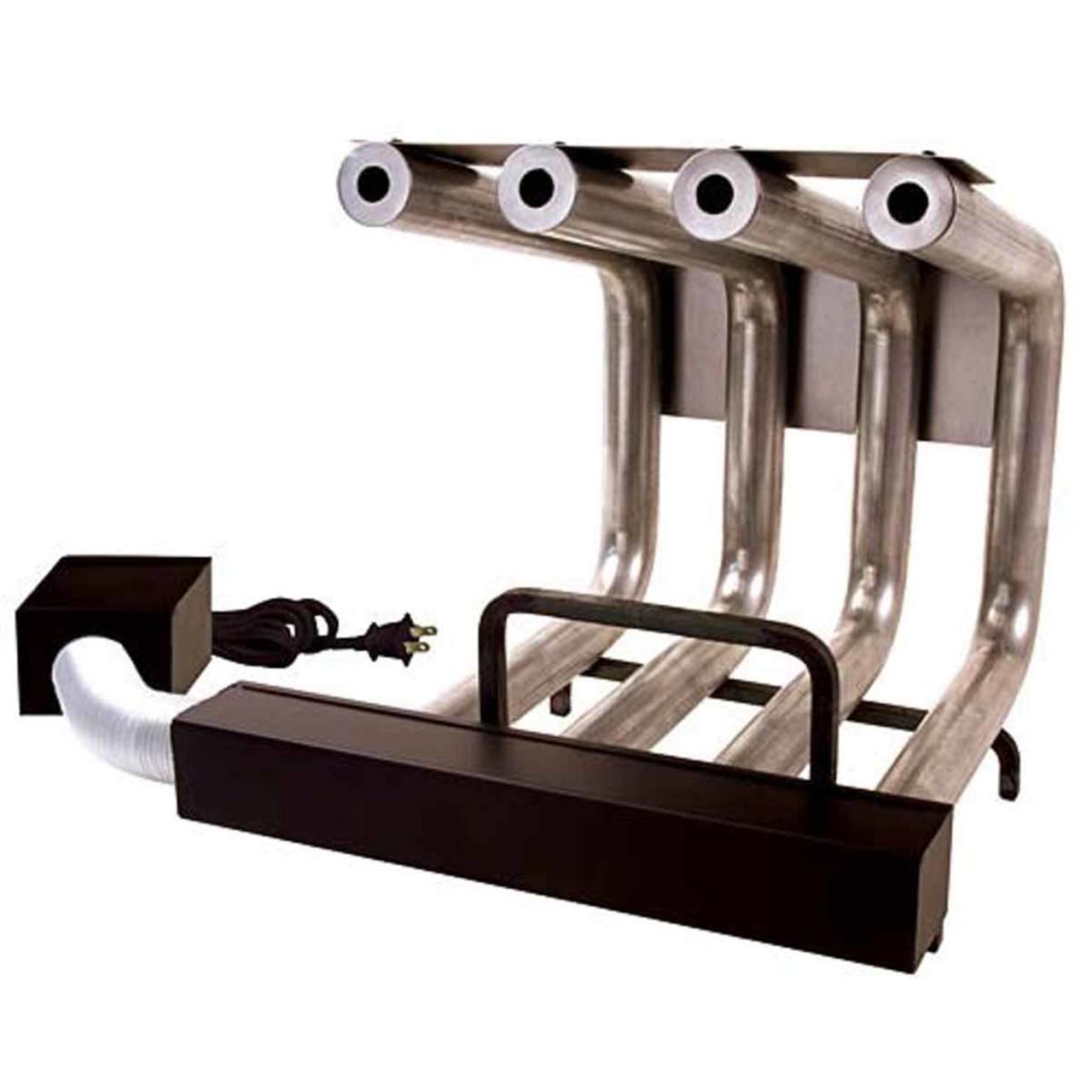

Image of 4 Tube ZC Fireplace Heater-With Blower
The Zero Clearance Fireplace Heater (FHZCK) is easy to install. Simply assemble the blower on the tubes and seal with supplied silicone sealer. Place heater into your fireplace, plug it in and build a fire. The FHZCK Hearth Heater still works during a power outage by converting heat naturally through the tubing and into your home. The blower is connected to the grate by means of a flexible tube, which allows the blower to be positioned in front of the fireplace opening. Tubes are made of heavy gauge aluminized steel for long life. Limited 1-Year Warranty. Measures: Height 17 7/8" , Depth 17 1/4", and Width 14 1/8". For wider fireplaces a custom Fireplace Heater can be ordered consisting of 5, 6, 7, 8, or 9 steel tubes. Custom sizes will take approx 2 to 4 weeks to receive.

For larger fireplaces see theFH Fireplace Heater.
Click here for a brochure.

  • Low Cost
  • Simple Installation
  • Works during a power outage
  • Fits most small fireplaces (See additional information tab for sizing)
  • Heavy gauge aluminized steel tubing for long life
  • Blower Box can mount on left or right side by flipping the manifold
  • 2 speed blower (50 CFM - High, 30 CFM - Low) delivers up to 48,000 BTU's of heat for a 500% heat output increase!
  • Can be used with a glass fireplace door but additional flexible hose may be needed and must be removed to close the doors when not in use.

Note: May be used with a gas log lighter as long as clearances allow for placement under the grate.

BEFORE YOU BURN: There will be a smell on the first burn as the oil in the tubes will burn off. This is normal. WARNING: If you have birds and animals in the house. They should be removed from the house on the first burn. People that are asthmatic and children should also not be in the area during the first burn.


Specifications:
  • 2 speed blower (50 CFM - High, 30 CFM - Low).
  • Delivers up to 48,000 BTU's of heat
  • Diameter of tubes 1-3/4"
  • Heat Pipes are made of .063 heavy gauge aluminized steel which inhibits burn through and rust
  • Flexible blower connector is adjustable from 8" to 18" and can be extended if necessary by ordering an additional flexible tube

Unit Size

  • Front Width: 14 1/8"
  • Rear Width: 14 1/8"
  • Front Height: 17 7/8"
  • Rear Height: 14 1/2"
  • Depth: 17 1/4"

  • 2 speed blower (50 CFM - High, 30 CFM - Low).
  • 160 CFM Fan
  • Delivers up to 48,000 BTU's of heat
  • Diameter of tubes 1-3/4"
  • Heat Pipes are made of .063 heavy gauge aluminized steel which inhibits burn through and rust
  • Flexible blower connector is adjustable from 8" to 18" and can be extended if necessary by ordering an additional flexible tube
1 Year Warranty
Width:
19.50 (in)
Height:
18.50 (in)
Depth:
20.00 (in)
_PDF:
fireplaceheaterinstructions|pdf|Fireplace Heater Instructions
Clearance:
Non-Clearance
Country Of Origin:
United States
Product Type:
Fireplace Grates
Color:
Silver
Color Name:
Silver
Additional Information:

Adobe PDF File Icon Fireplace Heater Instructions
