7'' DuraPlus Round Ceiling Support Kit - DP710-KIT

Item Code: 5SP-DP710-KIT

Availability: In Stock - See individual options for shipping time.

As low as: $426.29

Price as configured: $0.00

$0.00
Calculate Shipping
Question

DuraVent DuraPlus Chimney Cap


A chimney cap is required where the pipe terminates above the roofline. It is important for not only preventing rain & debris from getiing into your chimney but to keep critters from creating a home in your chimney pipe. With out a cap you could end up with a chimney fire due to debris and animal nesting material or a critter finding its way into your stove.

The DuraPlus Chimney Cap is made of stainless steel and designed to twist-lock on to DuraPlus chimney pipe. Removable screws allow for cleaning of the chimney system. spark arrestor. Depending on your local code you may be required to use a spark guard for your installation to be up to code.

Close
1 x 7'' DuraPlus Chimney Cap - 7DP-VC   (In Stock, Only 1 left, Ships in 1 to 2 business days.)   +$107.72
Question

DuraVent DuraPlus Storm Collar


The DuraPlus aluminum storm collar is required for use on any through-the-roof installations using a roof flashing. The storm collar is placed over the flashing and sealed to the chimney pipe with a high temp silicone to prevent water from running down the chimney.

Close
1 x 6'' - 8'' DuraPlus Storm Collar - 6DP-SC   (In Stock, Ships in 1 to 2 business days.)   +$13.32
Question

DuraVent DuraPlus Round Ceiling Support Box

The DuraVent DuraPlus Round Ceiling Support Box should be used if you are installing your chimney straight up and out your roof and you have a flat ceiling. This round support box is the chimney pipe component that will allow you to transition from stove pipe to chimney pipe at your ceiling.

It includes a built-in, twist-lock starter section for DuraPlus Chimney. Use a Snap-Lock Adaptor, or a DuraBlack Slip Connector to transition to single-wall stovepipe or use a close clearance adaptor to transition to DVL Double-Wall Stovepipe. The Round Ceiling Support requires a 14 1/2" x 14 1/2" framed opening. Included is a 1 1/2" wide trim collar. This round ceiling support will support up to 35' of DuraPlus Chimney. This ceiling support is compatible with single wall DuraBlack or Snap Lock stove pipe as well as DVL double wall stove pipe. You will need to choose the appropriate adapter based on which type of stove pipe that you will be using.

The DuraTech Round Ceiling Support Box is available for 5-8" diameter Duratech chimney systems and will require a finishing trim collar which is sold separately.

Close
1 x 7'' DuraPlus Round Ceiling Support - 7DP-RCS   (This item is a Special Order item and ships in 7 business days. Review our return policy on special order products.)   +$132.10
Question

What is an Attic Insulation Shield?

An attic insulation shield is required when running a chimney through a ceiling or attic space. It keeps insulation and debris from gathering around the pipe and causing a fire hazard. The DuraPlus Attic Insulation Shield works with a support box, or the Firestop Radiation Shield. It consists of two parts, a collar, and a base. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. Made from galvanized steel. Comes with a collar to go aroung the top.

Close
1 x 6'' to 8'' DuraPlus Attic Insulation Shield - 6DP-IS   (In Stock, Ships in 1 to 2 business days.)   +$78.54
Question

What is a Chimney Adapter?


DuraVent manufacturers two lines of black stove pipe, DuraBlack (single-wall) and DVL (double-wall). Both require a chimney adapter to properly connect the stove pipe to DuraTech or DuraPlus Class A Chimney Pipe. Depending on your installation, you will need one of the following chimney adapters:

  • Slip Connector - Item Number 1771 - Use to connect DuraBlack single wall stove pipe to the ceiling support box. Use the slip connector if you do not have any other adjustable stove pipe length between your stove and support box. This adapter will provide a 3" to 13" slip fitting without having to cut pipe for a perfect fit. Only connects to rigid DuraBlack stove pipe, and cannot be used with telescoping pipe lengths.
  • DuraBlack Chimney Adapter - 8778 - This adapter is recommended to connect DuraBlack single-wall stove pipe to DuraPlus or DuraTech chimney pipe if you do not require adjustability in your stove pipe height. You can also use this adapter to connect DVL double-wall stove pipe to DuraPlus or DuraTech chimney.
  • Snap Lock Adapter - Item Number 6791 - Snaps into your ceiling support boxor finishing collar and extends down to fit into the stovepipe. Provides a drip-free connection to DuraTech, DuraPlus, DuraPlus HTC chimney pipe or DuraLiner chimney liner.
  • DVL Adapter - Item Number 8775 - Use to connect from double-wall DVL to DuraTech, DuraPlus, DuraPlus HTC, and DuraLiner for a through-the-wall or ceiling support installation. Required for proper connection. Provides a strong mechanical connection. Painted black.
Close
Question

7" DuraPlus Roof Flashing


Select roof flashing based on pitch of roof. For example, a 6/12 pitch has a vertical rise of 6" over a horizontal distance of 12".


Roof Pitch DuraVent Flashing Item Number
Flat Roof 9151V
0/12 - 6/12 9149V
7/12 - 12/12 9150V
13/12 - 18/12 9181V
19/12 - 24/12 9152V
Close
  • Add to Wishlist

Price as configured: $0.00

* Required Fields




     pinterest​      like​



Product Details


This 7'' DuraPlus Round Ceiling Support Kit is a perfect option for the homeowner and it does not require professional installation and carries a lifetime warranty.

Materials and Construction

  • .016'' 430 stainless steel outer wall or .018'' galvanized steel outer wall.
  • .018'' aluminized steel intermediate liner.
  • .016'' 430 stainless steel inner liner.
  • Insulated layers of ceramic blanket plus ventilated air space.
  • Locks tightly with a precision twist-lock connection.

The 7" DuraPlus Ceiling Support Kit contains all the components needed to install an 7" chimney (excluding black stove pipe and DuraPlus chimney sections) straight up through a normal flat ceiling.

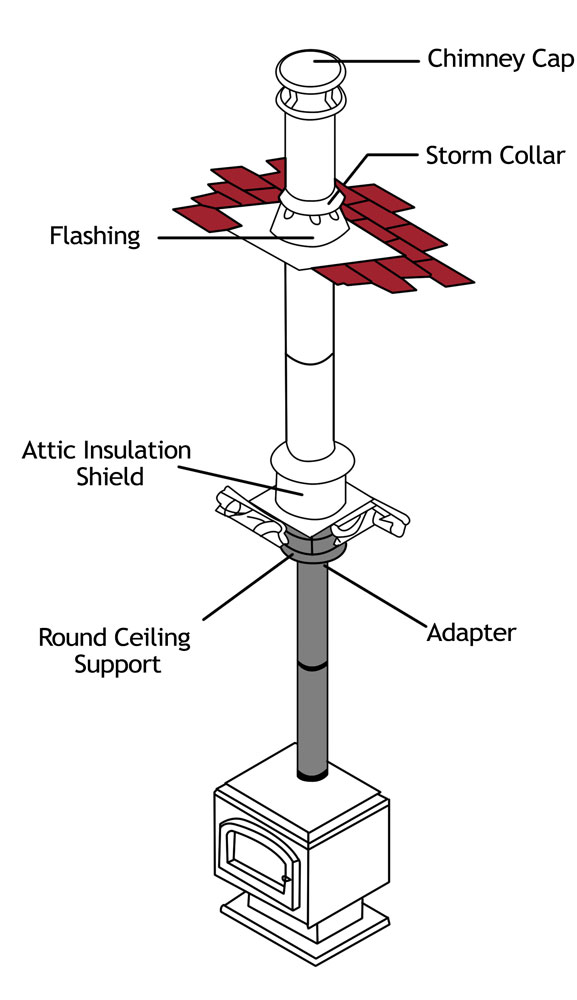

This kit includes the following: (from the cap down)

height=

7" DuraPlus Chimney Cap is required where the chimney pipe terminates above the roof line. This Chimney Cap has removable screws to allow for easier cleaning of the chimney and spark arrestor screen. Includes spark arrestor screen.

7" DuraPlus Storm Collar this aluminum storm collar is required for use on any through-the-roof installations using a roof flashing.

7" DuraPlus Roof Flashing provides leak proof roof penetration. The purpose of the roof flashing is to weatherproof the roof where the chimney penetrates the roof. The flashing gets tucked under the shingles and the shingles are cut around the flashing if needed. The flashing is sealed to the roof with silicone to provide that needed seal to prevent water from getting under the flashing and getting into the attic or house, then a storm collar is placed over the flashing and sealed to the chimney pipe with a high temp silicone to prevent water from running down the chimney.

7" DuraPlus Attic Insulation Shield is required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. The Attic Insulation Shield fits over the Firestop Radiation Shield or Support box and consists of two-parts - a collar and a base.

7" DuraPlus Round Ceiling Support is used when passing through a flat ceiling. It includes a built-in, twist-lock starter section for DuraPlus Chimney. Use a Snap-Lock Adaptor, or a DuraBlack Slip Connector to transition to single-wall stovepipe or use a close clearance adaptor to transition to DVL Double-Wall Stovepipe. The Round Ceiling Support requires a 14 1/2" x 14 1/2" framed opening. Included is a 1 1/2" wide trim collar. This round ceiling support will support up to 35' of Dura/Plus Chimney.

7" Stove Pipe Adapter is required to connect the stove pipe to the chimney pipe and there are several options to choose from depending on your requirements.

  • height=Slip Connector - Item Number 1771 - Use to connect DuraBlack single wall stove pipe to the ceiling support box. Use the slip connector if you do not have any other adjustable stove pipe length between your stove and support box. This adapter will provide a 3" to 13" slip fitting without having to cut pipe for a perfect fit. Only connects to rigid DuraBlack stove pipe, and cannot be used with telescoping pipe lengths.
  • /> <strong>DuraBlack Chimney Adapter - 8778 - </strong>This adapter is recommended to connect DuraBlack single-wall stove pipe to DuraPlus or DuraTech chimney pipe if you do not require adjustability in your stove pipe height. You can also use this adapter to connect DVL double-wall stove pipe to DuraPlus or DuraTech chimney.</li> <li><img style=.

Additional Information

Specifications
  • 7" Diameter
  • .016'' 430 stainless steel outer wall or .018'' galvanized steel outer wall.
  • .018'' aluminized steel intermediate liner.
  • .016'' 430 stainless steel inner liner.
  • Insulated layers of ceramic blanket plus ventilated air space.
  • Locks tightly with a precision twist-lock connection.
Additional Information

The DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters and other appliances fueled by wood, oil, coal or gas. The innovative triple wall construction is designed to stay cool on the outside and provide hot drafts on the inside to boost stove efficiency which, in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers; a ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulation. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.

DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.

  Installation Instructions for DuraPlus All-Fuel Chimney System.
Brand DuraPlus, DuraVent, Simpson
Model DP710-KIT
Made In USA
Shipping Weight (lbs) 0.0000
Actual Weight (lbs) 0
Product Type Ceiling Support Boxes, Chimney Kits
Diameter 6 Inch
Wall Construction Triple Wall

Warranty

Manufacturer's Limited Lifetime Warranty - (only when installed by a Qualified Professional Installer)
