Details
Designed for appliances tested and listed for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood oil, coal, or gas. To calculate the installed length of DuraPlus chimney pipe, subtract 1 1/2" from each length of chimney pipe.

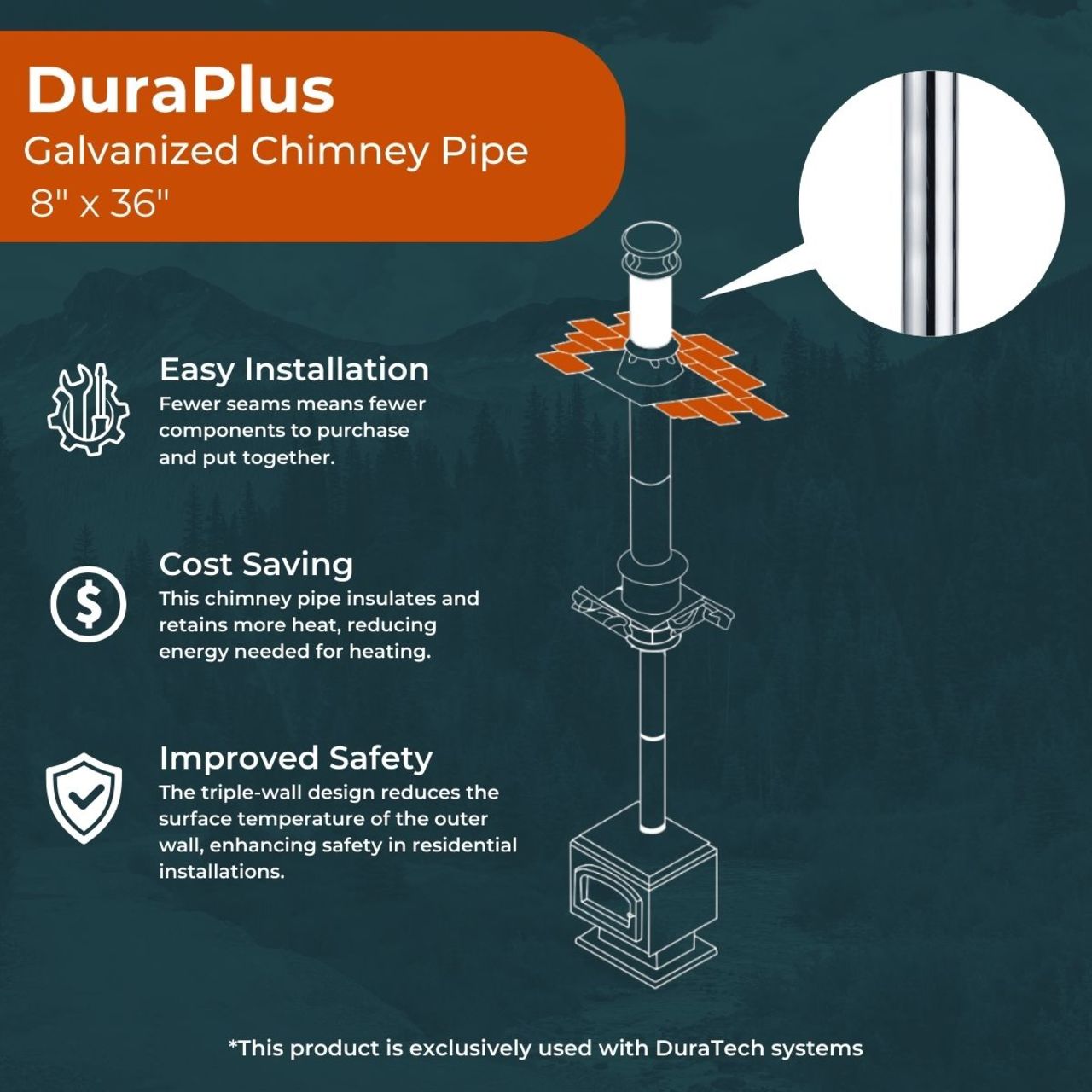

DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
See all 8" DuraPlus Chimney Pipe.
Additional Information:The Simpson DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. The innovative triple wall construction is designed to stay cool on the outside, and provide hot drafts on the inside to boost stove efficiency which in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers. A ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.
DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.
Specifications:- Diameter: 8"
- Construction materials: .018" galvanized steel outer wall, .018" aluminized intermediate liner, .016" 430 stainless steel inner liner
- Clearance: 2"
- Listings: UL listed to UL 103 (MH7399)
- 1/2" insulation blanket
- Locks tightly with a precision twist lock connection
WARNING:
This product can expose you to chemicals including Chromium, which
is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov.
-
Additional Information
Clearance Non-Clearance Country Of Origin United States Pipe Wall Triple Wall Pipe Piece Chimney Pipe Type Class A Pipe Diameter 8 Inch Size 36in Product Type Chimney Pipe Left Overlay Image ets-made-usa-prod.png Brand DuraPlus -
1 Review
1 Review
-
Nice chimney
I haven't installed yet, but looks like pretty good quality. Probably not as durable as hardpack, but better than double-wall with airspace in between.
-
Designed for appliances tested and listed for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood oil, coal, or gas. To calculate the installed length of DuraPlus chimney pipe, subtract 1 1/2" from each length of chimney pipe.
DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
See all 8" DuraPlus Chimney Pipe.
Additional Information:
The Simpson DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. The innovative triple wall construction is designed to stay cool on the outside, and provide hot drafts on the inside to boost stove efficiency which in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers. A ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.
DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.
Specifications:
- Diameter: 8"
- Construction materials: .018" galvanized steel outer wall, .018" aluminized intermediate liner, .016" 430 stainless steel inner liner
- Clearance: 2"
- Listings: UL listed to UL 103 (MH7399)
- 1/2" insulation blanket
- Locks tightly with a precision twist lock connection
WARNING:
This product can expose you to chemicals including Chromium, which
is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov.
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | United States |
| Pipe Wall | Triple Wall |
| Pipe Piece | Chimney Pipe |
| Type | Class A Pipe |
| Diameter | 8 Inch |
| Size | 36in |
| Product Type | Chimney Pipe |
| Left Overlay Image | ets-made-usa-prod.png |
| Brand | DuraPlus |
1 Review
-
Nice chimney
I haven't installed yet, but looks like pretty good quality. Probably not as durable as hardpack, but better than double-wall with airspace in between.
