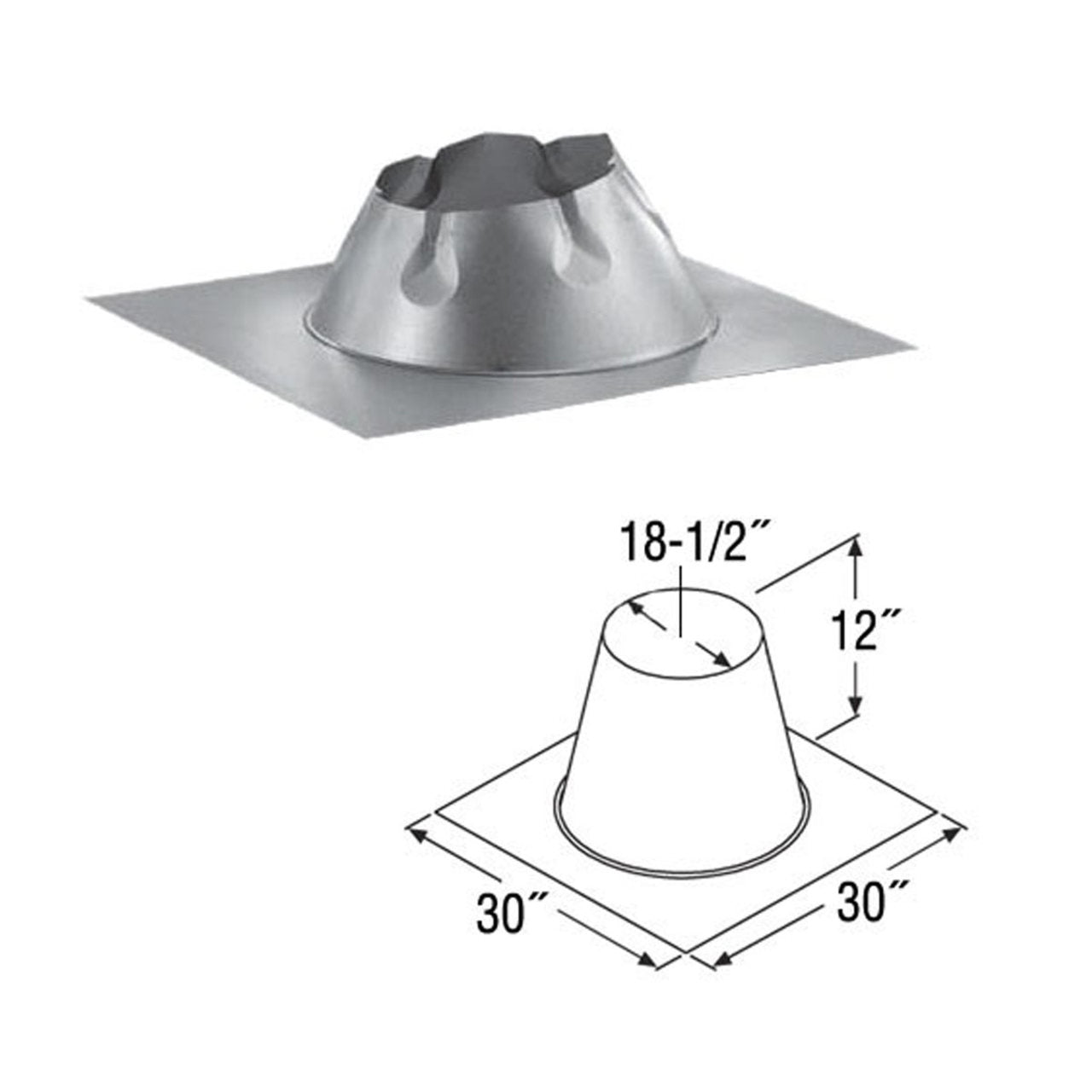

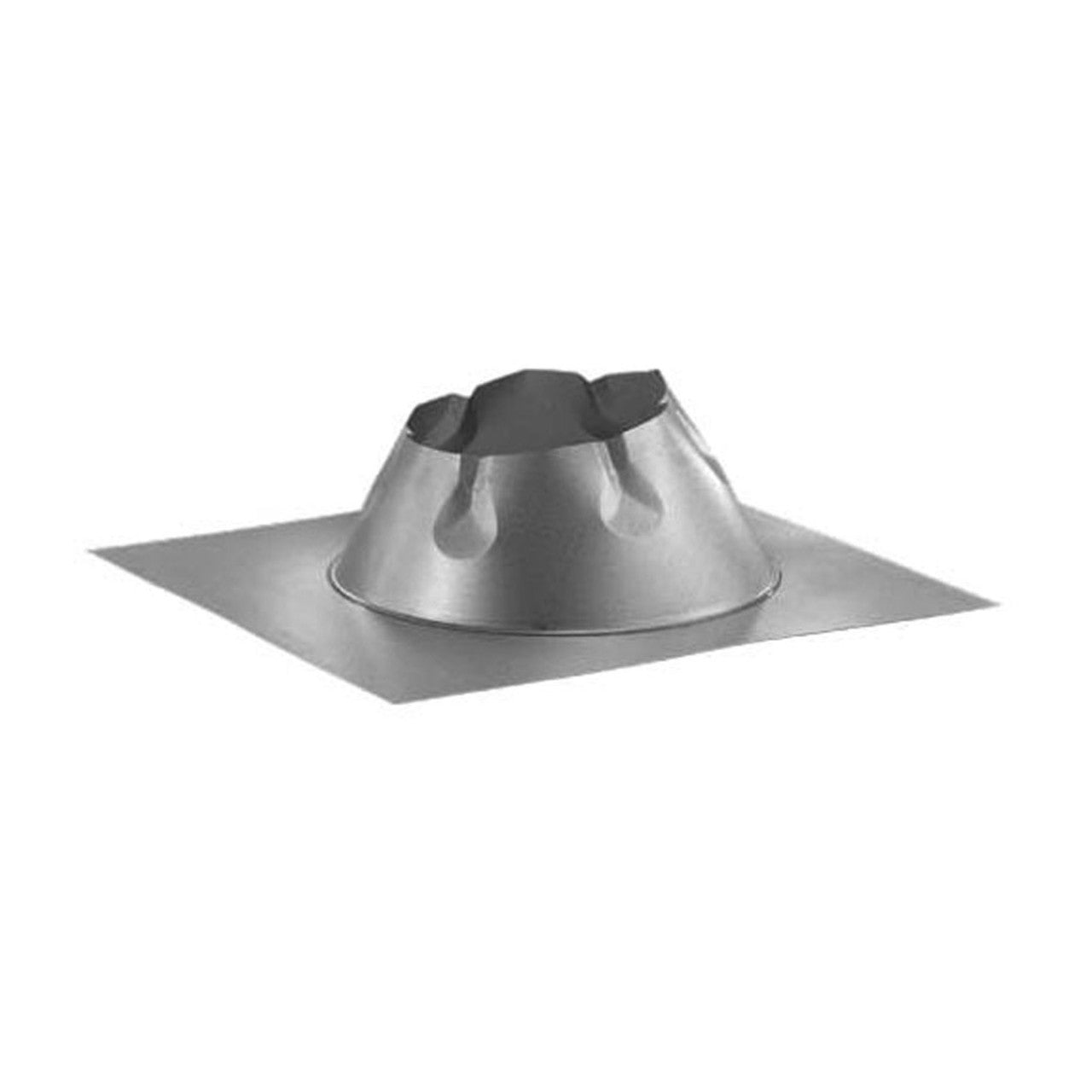

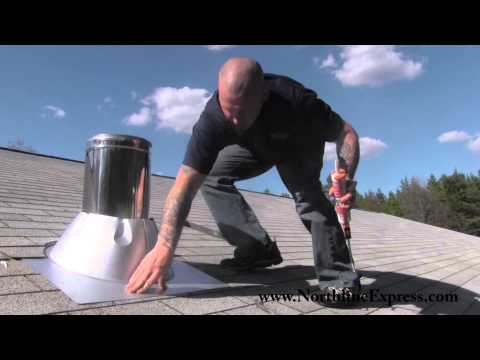

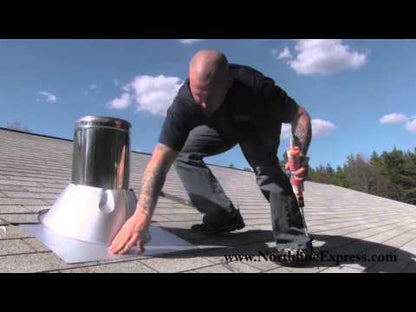

Roof Flashing is used to weather proof the penetration of chimney pip through the roof. A storm collar is required (not included). Select the proper roof flashing based on the pitch of the roof. For example, a 6/12 pitch has a vertical rise of 6" over a horizontal distance of 12".
DuraTech is a 1" wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
See all 16" DuraTech Chimney Pipe.
| DuraPlus Elbow Offset Chart | |||||||
|---|---|---|---|---|---|---|---|
| Size | 6" Diameter | 7" Diameter | 8" Diameter | ||||
| Elbow Degrees |
Chimney Section |
Offset Inches |
Rise Inches |
Offset Inches |
Rise Inches |
Offset Inches |
Rise Inches |
| 15° | 0" | 1 1/2" | 12" | 1 3/4" | 13 1/2" | 1 3/4" | 15 1/4" |
| 15° | 6" | 2 3/4" | 18" | 3" | 19 3/8" | 3" | 19 1/2" |
| 15° | 9" | 3 1/2" | 21" | 3 3/4" | 22 1/4" | 3 3/4" | 22 1/2" |
| 15° | 12" | 4 3/8" | 24" | 4 1/2" | 25 1/8" | 4 1/2" | 25 1/2" |
| 15° | 24" | 7 1/2" | 35 1/2" | 7 3/4" | 36 3/4" | 7 1/2" | 37" |
| 15° | 36" | 10 1/2" | 47" | 10 3/4" | 48 1/8" | 10 3/4" | 48 1/2" |
| 15° | 24"+24" | 13 1/4" | 57 1/4" | 13 1/2" | 58 1/2" | 13 1/2" | 58 3/4" |
| 30° | 0" | 3 3/4" | 16" | 3 3/4" | 14 1/4" | 3 3/4" | 14 3/4" |
| 30° | 6" | 6" | 20" | 6" | 20" | 6 1/2" | 20 3/4" |
| 30° | 9" | 7 1/2" | 22 1/2" | 7 1/2" | 22 3/4" | 8" | 23 1/4" |
| 30° | 12" | 9" | 25" | 9" | 24" | 9" | 24" |
| 30° | 24" | 15" | 35 1/2" | 15" | 35 3/4" | 15 1/4" | 36 1/4" |
| 30° | 36" | 21" | 45 3/4" | 21" | 46" | 21 1/4" | 46 3/4" |
| 30° | 24"+24" | 26 3/8" | 54 3/4" | 26 1/2" | 55" | 26 3/4" | 55 3/4" |
Additional Information:
With a Thermal Tech blanket insulation encased between duel walls, DuraTech offers superior safety and performance. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys, for an extra margin of safety. DuraTech chimney is tested and listed for continuous operation at 1000° F flue gas temperatures, one hour at 1400° F and ten minutes at 1700° F, in accordance with the UL 103 test standard.
