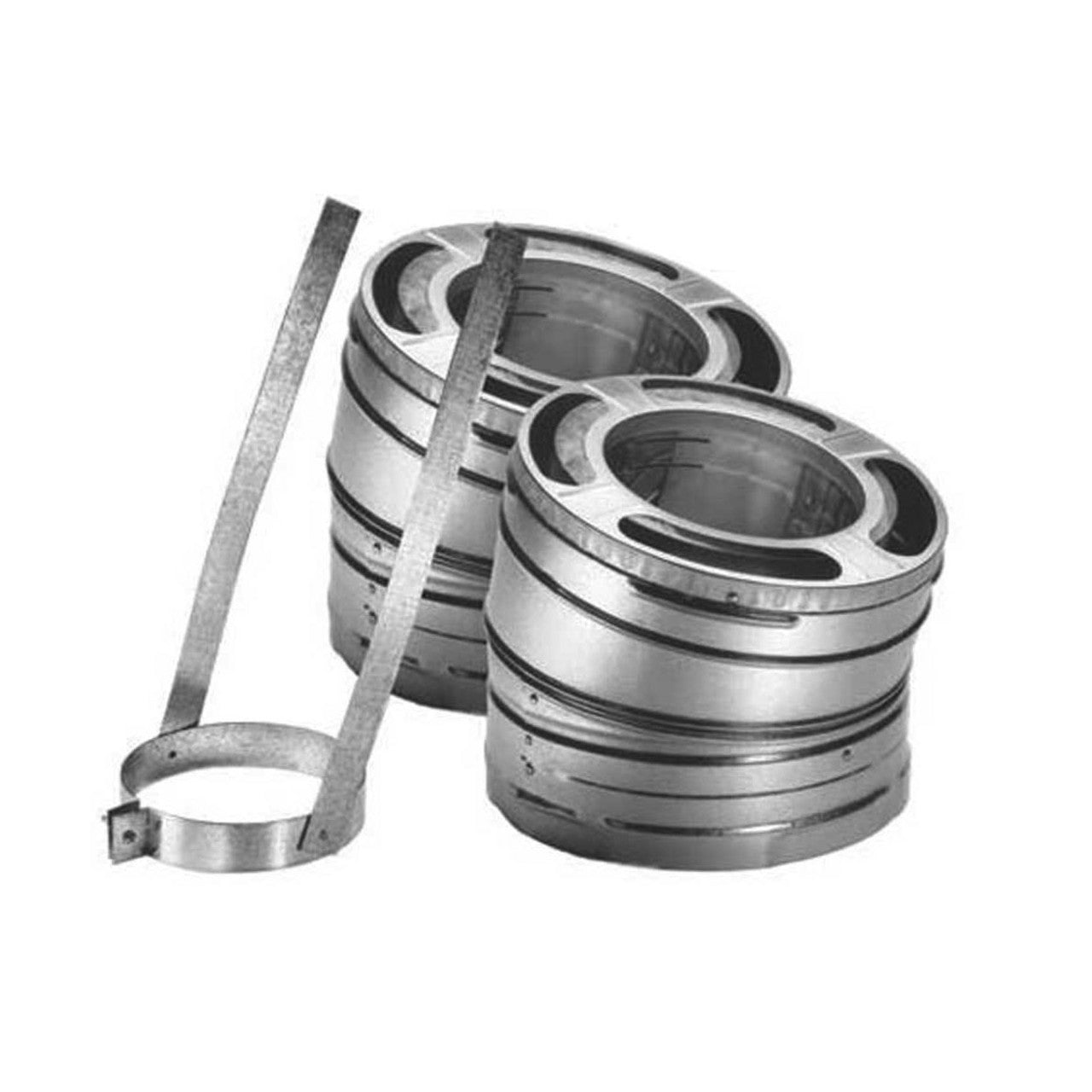

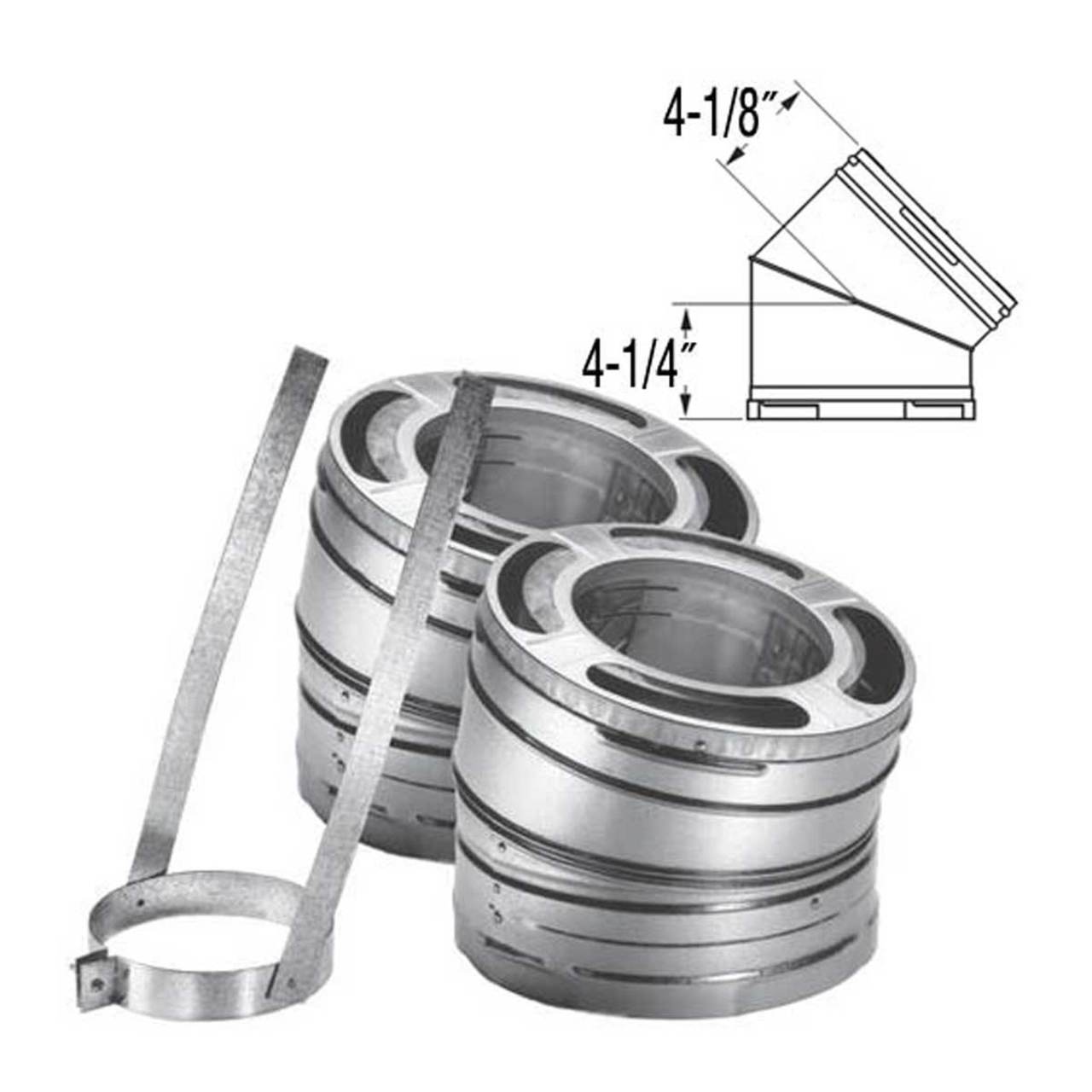

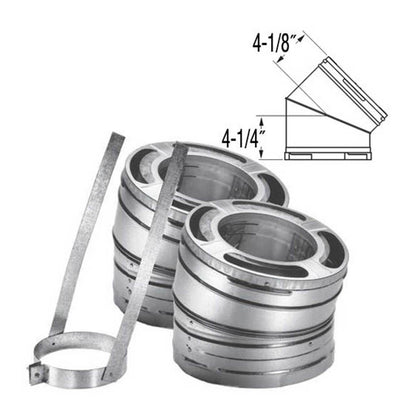

7'' DuraPlus 15 Degree Stainless Steel Elbow Kit - 7DP-E15SS

Use for offsets around obstructions such as rafters, ridgepoles, or joists. May have a pair of elbows if needed. Offsets greater than 30° are not permitted in accordance to the UL 103 standards. Elbow swivels at 360° at base (angles are not adjustable). A pair of elbows is required to return an offset chimney back to vertical.

DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

See all 7" DuraPlus Chimney Pipe.

The Simpson DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. The innovative triple wall construction is designed to stay cool on the outside, and provide hot drafts on the inside to boost stove efficiency which in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers. A ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.

DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.

  Installation Instructions for Simpson DuraPlus All-Fuel Chimney System.

WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
