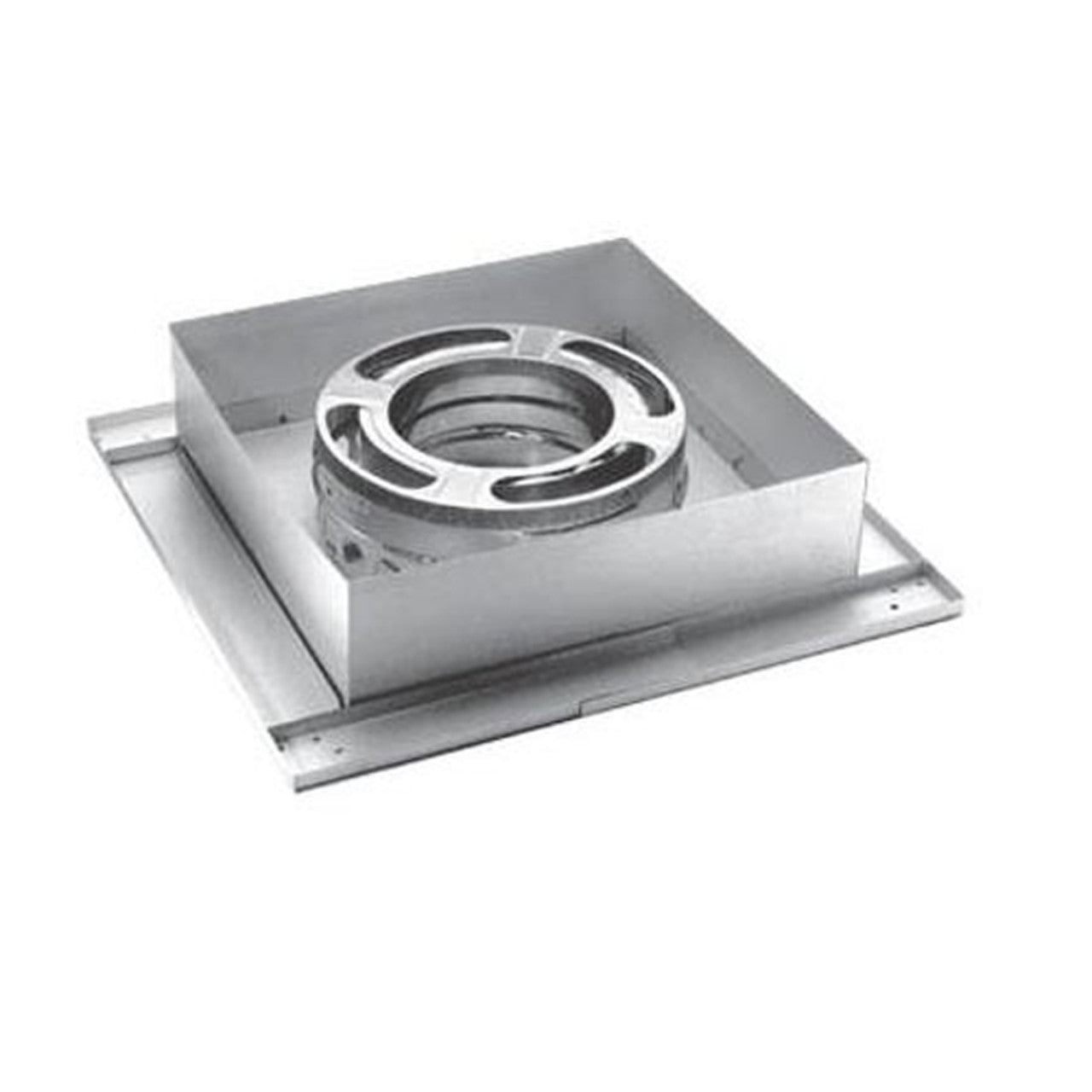

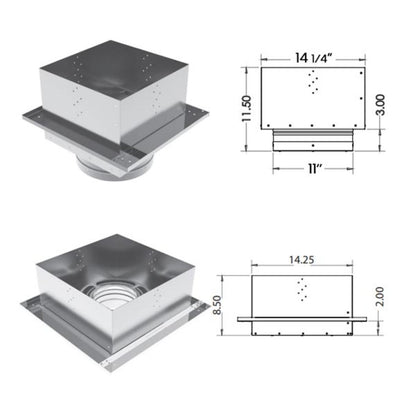

8" DuraPlus Flat Ceiling Support - 8DP-FCS

Supports chimney pipe and provides a positive connection between support box and chimney with a built-in-twist-lock. This DuraPlus component supports up to 35' of chimney pipe and provides a positive connection between the support box and chimney. Designed for installation in flat ceilings only. When attaching DVL or DuraBlack to the support box, use an adapter. A 2" trim collar is included with the support box to complete your installation.

DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.

See all 8" DuraPlus Chimney Pipe.

Additional Information:

The Simpson DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. The innovative triple wall construction is designed to stay cool on the outside, and provide hot drafts on the inside to boost stove efficiency which in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers. A ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.

DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.

  Installation Instructions for Simpson DuraPlus All-Fuel Chimney System.
