9 Tube Fireplace Heater-With Blower

Custom Size Heaters cannot be returned nor exchanged. Please verify your measurements before ordering. This unit is a custom size.

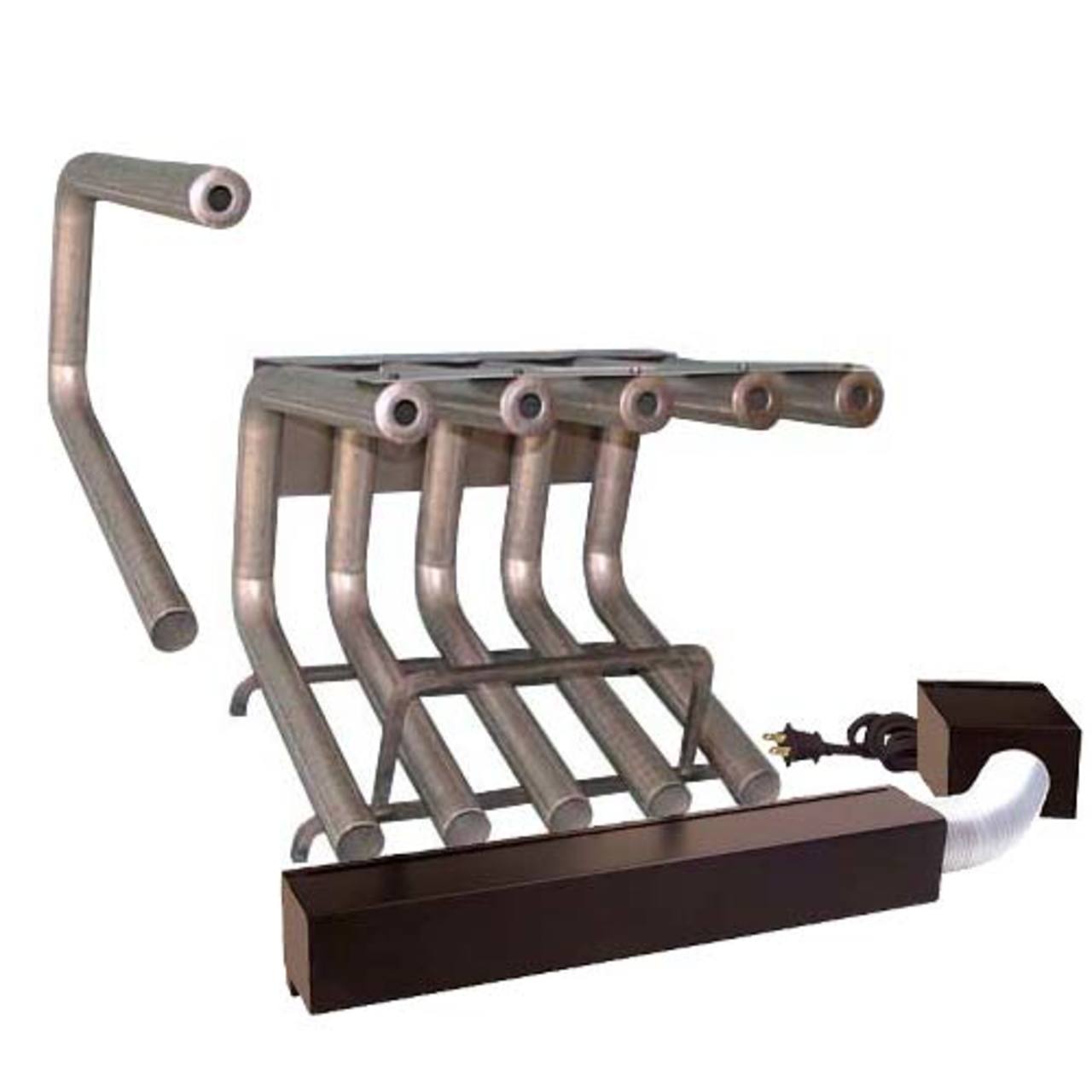

The Fireplace Heater was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500'F and will produce up to 50,000+ BTUs of heat, enough to heat a large room or two. It fits into most fireplaces and has a limited one-year warranty. The FHK is easy to install, simply assemble the blower on the tubes, seal it with the supplied silicone seale,r and set into your fireplace. Measures: 20-1/2" High , 20" Deep, 41" Front Width, and 33" Back Width.

Click here for a brochure. For smaller fireplaces see the FHZC Fireplace Heater.

Product Note: This fireplace heater is a custom size and will take approx 2 to 4 weeks to receive.

• Low Cost
• Simple Installation
• Works during a power outage
• Fits most fireplaces (See additional information tab for sizing)
• Heavy gauge aluminized steel tubing for long life
• Blower Box can mount on left or right side by flipping the manifold
• 2 Speed blower delivers up to 108,000 BTU's of heat for a 500% heat output increase!
• Can be used with a glass fireplace door but additional flexible hose may be needed and must be removed to close the doors when not in use.

Additional Information:

Number of Tubes	Front Width	Rear width	Front Height	Rear Height	Depth	BTU per Hour (max)
5 Tube (standard size)	25"	17"	20 1/2"	13 1/2"	18"	60,000
6 Tubes	29"	21"	20 1/2"	13 1/2"	18"	72,000
7 Tubes	33"	25"	20 1/2"	13 1/2"	18"	84,000
8 Tubes	37"	29"	20 1/2"	13 1/2"	18"	96,000
9 Tubes	41"	33"	20 1/2"	13 1/2"	18"	108,000
10 Tubes	45"	37"	20 1/2"	13 1/2"	18"	120,000
