US Stove Wall Mount Direct Vent Pellet Stove with 28 lb Hopper and Remote

US Stove
In Stock: Ships in 5 to 7 business days
Low Stock!

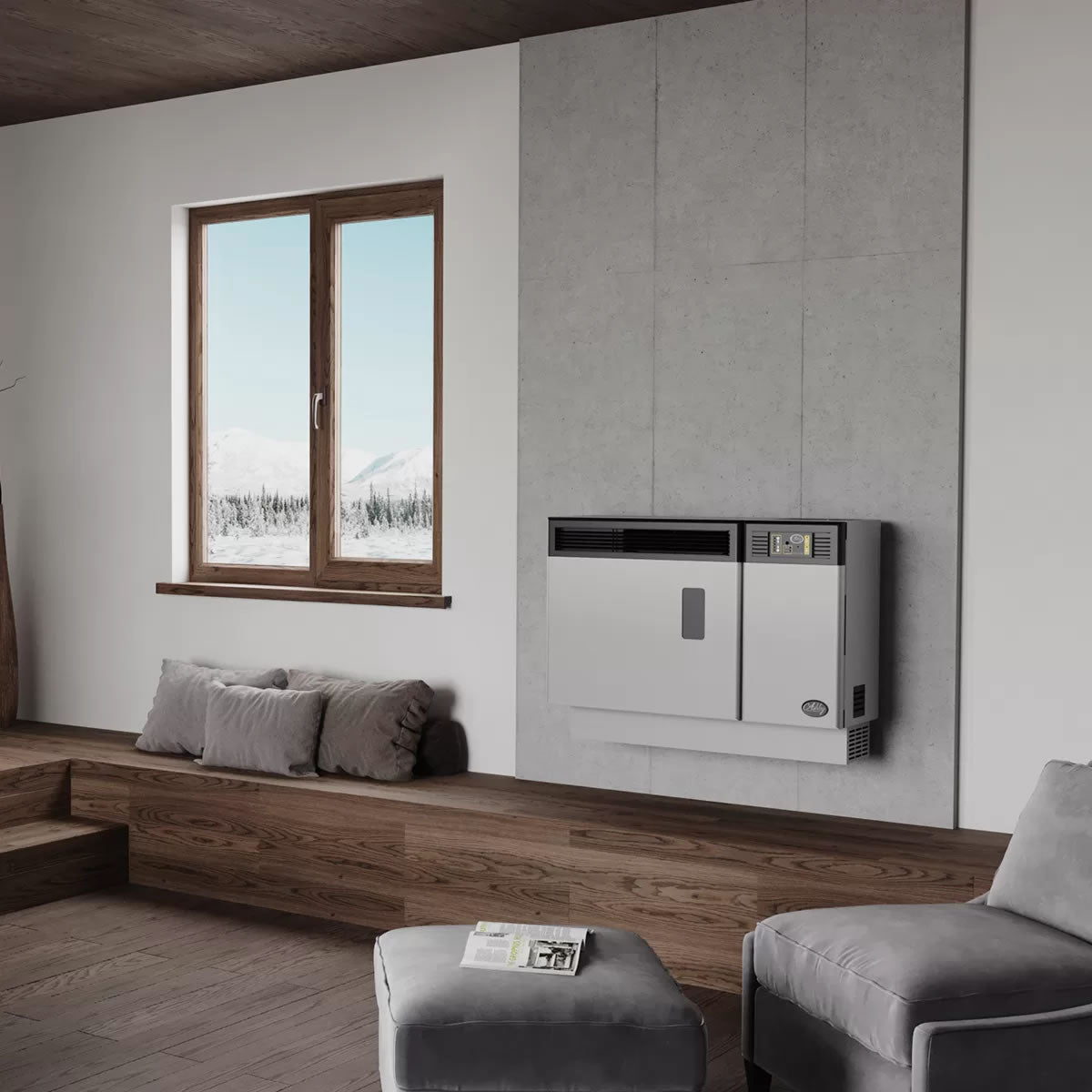

US Stove Wall Mount Direct Vent Pellet Stove with 28 lb Hopper and Remote

If you're looking for a way to heat an area of up to 1,000 square feet, but don't want to worry about adding an expensive and home-invasive venting system, then you should consider the wall-mounted direct Vent Pellet Stove. This wall-mounted pellet stove is made by US Stove and comes with a 28-pound hopper and a remote control. The 28-pound hopper can heat and keep your area warm for nearly 35 hours.

The Wall Mounted heater runs on wood pellet fuel and can heat your home up to 35 hours between refills

The amazingly designed Wall Mount Direct Vent Pellet Stove, model number AP5000, is capable of heating a space up to 1,000 square feet. The modern euro-styled design delivers amazing heat performance and features an integrated hopper that can hold up to 28 pounds of quality wood pellet fuel. This is enough fuel to heat your area up to 35 hours between refills on its lowest setting. If the low setting isn't enough, the unit also comes with a remote to make adjusting the heating output a quick and easy process. So whether you want the unit to produce low heat to take the chill out of the room, or you want to crank the heat up and warm up quickly this unit has a setting for you.

US Stove has crafted a great wall-mount direct vent pellet stove

The wall mount direct vent pellet stove is crafted from durable steel to ensure long-lasting use and is manufactured by the United States Stove Company. The US Stove company has been manufacturing high-quality stoves since 1869. Based out of South Pittsburg, Tennessee, US Stove manufacturing utilizes components sourced both domestically and globally for assembly in various manufacturing facilities at home and abroad. They are working to bring customers quality, affordability, and value.

The US Stove Company offers a variety of home heating appliances including wood stoves, pellet fuel stoves, and more. They have products that can heat any size square foot living space. Check out their products to see if you can find a unit that is perfect for your room.

Shop More US Stove Company Products Here!

The Wall Mounted Direct Vent Pellet Stove is one of the best types of pellet stoves on the market when it comes to installation and venting

One of the best features of the US Stove Wall Mount Direct Vent Pellet Stove is that the stove comes with all of the venting components included in the packaging. The venting components include a mounting bracket, a stove adapter, a twist lock pipe, a vent attachment, a wall thimble, and a cap. The Pellet Stove will mount much like a flat-screen TV once installed and will heat a space of up to about 1,000 square feet.

It is important to review the installation manual for the Pellet Stove prior to beginning your project. The manual lists all of the clearance requirements as well as determine where the best place to install the unit in your home will be. The manual also guides you step by step through the installation project.

Here are a few key points on the installation of the Wall Mount Direct Vent Pellet Stove:

  • This Pellet Stove is not approved for use in commercial environments.
  • The Pellet Stove should never be installed in a sleeping room.
  • It must always be installed on an exterior wall.
  • The heater must be permanently attached to the wall.
  • The Pellet Stove is approved for use in Mobile Homes unless otherwise prohibited by your state and local building codes.
  • The Pellet Stove will not operate during a power outage.
  • The Direct Vent Stove should never be left running when you are not at home.
  • It is recommended to visually inspect the venting system bimonthly to make sure there are no blockages or build-up of soot or creosote.
  • Routine cleaning and maintenance are required to keep the entire system running properly. There is a handy guide on page 15 of the manual that lists how frequently the different parts of the unit should be cleaned.
  • Using high-quality pellet fuel will keep your system running more efficiently and will help produce more heat in the room
  • WARNING: This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to

It is always a good idea to keep detailed records of cleaning, service calls, and maintenance. There is a section in the back of the manual for you to keep these records.

The US Stove Wall Mount Direct Vent Pellet Stove also requires adequate floor protection beneath the unit. One of the best ways to provide that protection is with a Hearth Pad.

US Stove Wall Mount Direct Vent Pellet Stove Specifications

    • Assembled Width: 36 inches
    • Assembled Depth: 12.43 inches
    • Assembled Height: 27 inches
    • Product Weight: 185 pounds
    • Package Weight: 230 pounds
    • Package Width: 46.5 inches
    • Package Depth: 18 inches
    • Package Height: 33.5 inches
    • Heats up to 1,000 Sq Ft with 24,000 BTUs (British Thermal Units)
    • 28-pound pellet hopper capacity
    • 150 CFM blower and all venting components included (including mounting bracket, stove adapter, cap, wall thimble, vent attachment, and twist lock pipe)
    • Digital controls with remote control
    • Automatic ignition makes starting easy and quick
    • 78 percent efficiency rating
    • EPA Approved and CSA-certified
    • Mobile home approved (USA only)

US Stove backs the wall mount direct vent pellet stove with a warranty

The firebox has a limited lifetime warranty. All other components, including electrical component parts, are covered for 1 year from the date of purchase. Some dealers may sell extended warranties. You will need to contact your dealer for assistance if you have purchased one and are outside of the US Stove coverage time frame.

At Northline Express, you can shop for a variety of Pellet and Wood Stove options

Click the following to check our full line of Wood Stove and Pellet Stove Products

Also, feel free to check out all of our US Stove Company Products Here

Also don't forget to check out our full line of Pellet Stove Accessories to help add additional function and design to the area around the pellet stove. We have pellet and Ash Buckets along with fire starters and ash shovels just to name a few items you may want to check out.

FAQ - US Stove Wall Mount Direct Vent Pellet Stove

What is a pellet stove?

A pellet stove is a type of heating appliance that uses compressed pellets as its fuel source. These pellets could be made from a variety of organic materials such as sawdust, wood waste, or even biofuels such as corn kernels or nutshells. The pellets come in different quality grades of pellets, some are good for heating the house and some can be used for cooking food.

Pellet stoves can be standalone units or be installed as inserts into existing fireplaces. They work by storing these pellets in a hopper which is then automatically fed into a burn pot for combustion. This process produces heat which is then circulated throughout the room or house. Pellet stoves are known for their efficiency and are generally considered a more environmentally friendly option than traditional wood-burning stoves because they often use recycled materials and produce less ash and fewer pollutants.

How do pellet stoves work?

Pellet stoves operate through a series of steps that usually all happen with the push of a single button start. First, the operator loads the pellets into the hopper. From there, a motorized device called an auger transports the pellets from the hopper to the burn pot. The rate at which the pellets are fed can usually be adjusted to control the heat output. The speed of the auger and burn is controlled by the thermostat, meaning the higher the desired temperature, the faster the auger will deliver pellets to the burn pot.

Once the pellets are in the burn pot the pellet stove will use either an automatic ignition system or will need to be started manually to ignite the pellets. Automatic systems use electric elements or hot air to ignite the pellets. After the initial ignition pellets are delivered to the combustion chamber where they burn. Then as combustion begins, gas and smoke are created and they are pushed through exhaust pipes and fans to ensure proper ventilation and to expel all of the combustion byproducts.

The heat generated in the combustion chamber is then distributed into the room through a heat exchanger. The heat exchanger may consist of tubes or channels that pass air over the hot surfaces to heat. Some stoves use fans to circulate the heated air more effectively while others rely on natural convection.

After the pellets burn, they leave behind a residue that is called ash. Some stoves have an automatic ash removal system, that moves the ash into a separate compartment which makes cleaning and maintenance easier. Others require manual ash removal which needs to be performed periodically depending on how often the stove is used.

How much are pellets for a pellet stove?

The cost of pellets for a pellet stove can vary depending on the type and quality of the pellets, as well as the brand. The location you live in also can affect the price of pellets. On average, wood pellet prices typically range between $5 and $12 for a 40-pound bag.

Homeowners who feel like they are going to go through a lot of pellets in a season can also opt to purchase pellets by ton. Usually purchasing in bulk will lower the price per unit.

How and where should I store bags of pellets?

When storing bags of pellets, the key is to keep them dry and cool. Moisture absorption can degrade pellets and lower their energy content. Choose a place like a shed, garage, or basement that is not prone to flooding or high humidity. If storing indoors is not an option, outdoor storage can be considered.

For outdoor storage, select a raised, dry place away from tall trees and protected from wind and rain. Ensure the pellets are fully wrapped and protected with a plastic shroud to prevent moisture seepage. For outdoor storage, you want to make sure you keep them as wrapped and protected as possible because exposed pellets can attract pests, animals, and insects.

In both cases, it's advisable to store the pellets in their original bags, stacked on a cardboard-covered pallet to prevent moisture from the ground. Avoid areas with extreme temperature fluctuations as they can affect the quality of the pellets. Aim for a temperature range between 60° F and 70° F (15° C and 21° C).

Can I burn corn in my pellet stove?

No. In the US Stove Wall Mount Direct Vent Pellet Stove, corn is not approved for use and it will damage your unit. It can create a safety hazard and will void all warranties on the product. You would want to look for units that are approved for corn burning. US Stoves does carry stoves that are approved for this unit. Contact our Customer Service Team to ask about these products. They can be reached toll-free by calling 1-866-667-8454

What is the second opening for the back of the Wall Mount Direct Vent Pellet Stove?

The second opening is for the unit’s air intake. This is where you would hook up the Fresh Air Kit (Part # 69FAK is a 2-inch opening and Part # 4 FK for a 4-inch opening). Piping the intake to the outside allows combustion air to enter the fire pot from the outside. This will keep negative pressure from forming within the building. It will also increase the efficiency of your stove.

This kit is a requirement for mobile/manufactured homes!

Northline Express offers the 69 FAK Fresh Air Kit

Do I need a fresh air kit for my Wall Mount Direct Vent Pellet Stove, model AP5000?

This will depend on how air-tight the home or building is. If it is very airtight, negative pressure can form and interfere with the proper functioning of the stove.

If the unit is installed in a mobile/manufactured home, the fresh air kit is REQUIRED!

Where can I go to learn more about Pellet Stoves?

Northline Express offers a Resource Center filled with helpful articles and how-to instructions that are sure to provide knowledge and guidance on a wide range of products. Here are some of our most popular articles on Pellet Stoves:

The Northline Express YouTube Page also is a great resource for product videos, how-to instructional videos, and a variety of other heating-related content.

California Proposition 65 Warning SymbolWARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.For more information go to

  • Heats up to 1,000 Sq Ft with 24,000 BTUs
  • 28 pound pellet hopper capacity
  • 150 CFM blower and all venting components included (including mounting bracket, stove adapter, cap, wall thimble, vent attachment and twist lock pipe)
  • Digital controls with remote control
  • Automatic ignition makes starting easy and quick
  • Mobile home approved (USA only)
46.50 (in)
33.50 (in)
18.00 (in)
Color Name:
Country Of Origin:
10 Year
Heat Output (BTU's):
20,000 - 29,999
500 Sq Ft - 1499 Sq Ft
Product Type:
Pellet Stoves
Assembly Required:
Assembly Required
Product Weight:
