Details

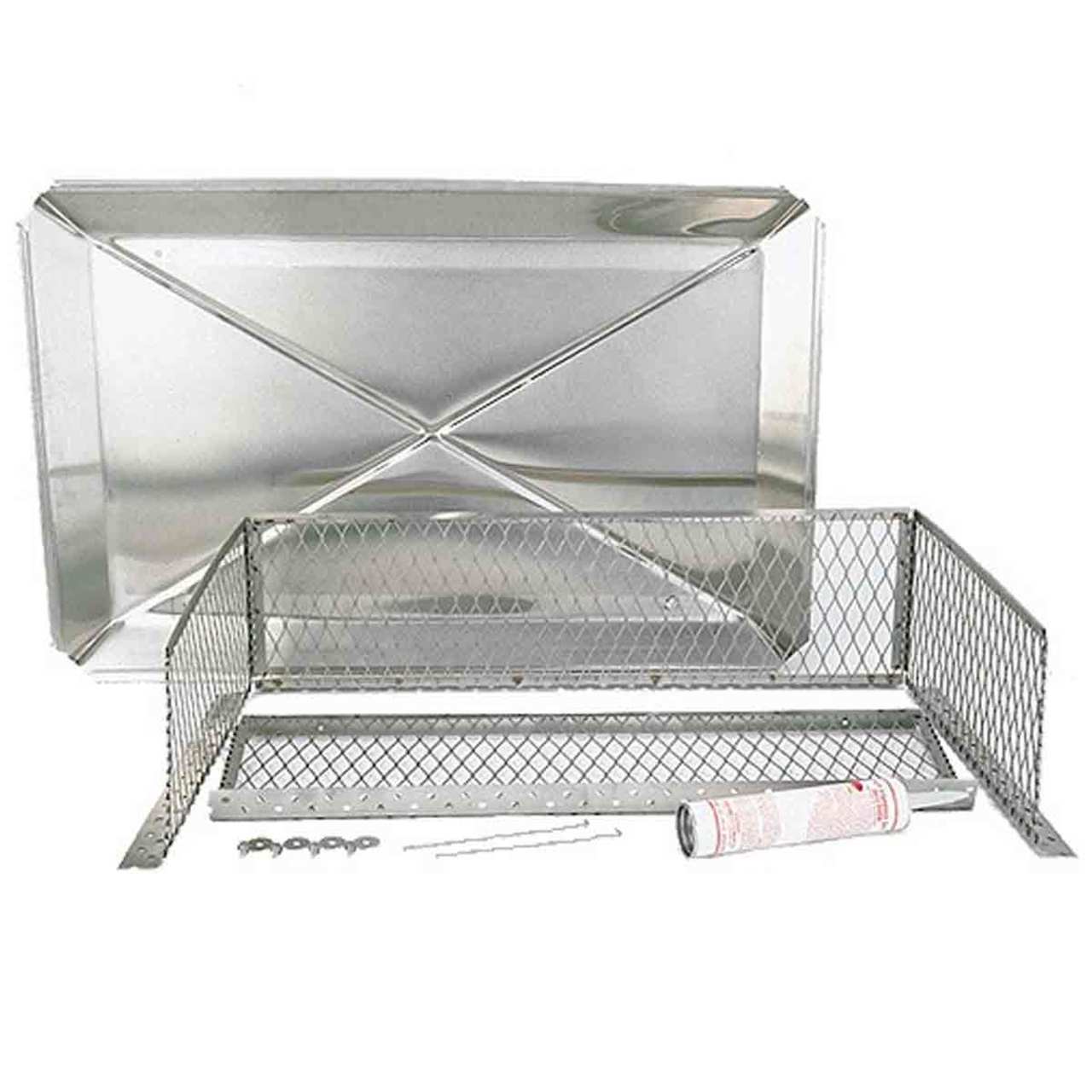

Gelco Stainless Knock-Down Multi-Flue Chimney Top Model A 14" x 14" x 12" Screen - Assembling the Knock-Down Chimney Top is made easy with two drop in hinge pins to assemble the screen, and either four cap screws or wing nuts to mount the lid (both included). The Knock-Down Chimney Top features a durable 304 stainless steel construction and weld nut technology in the top mounting strip to completely eliminate stripped threads. Masonry fasteners are included for convenient mounting. For proper draft, the space between the top of the flue tile and the bottom of the cap lid needs to be at least 5". To figure the correct cap height, add 5" to the height of the flue tile above the crown, then round up to the next height.
- Easy assembly
- 12" Screen height
- 19 1/2'' x 19 1/2'' Lid size
- 14" x 14" Screen-to-screen
- Lifetime warranty
Specifications:- Lid dimension: 19 1/2'' x 19 1/2''
- Screen-to-screen size: 14" x 14". 12" High, 3/4" mesh screen
- Construction materials: 304 Stainless steel, 3/4" mesh
- Listings: UL listed as part of HomeSaver relining system using Pro, UltraPro, RoundFlex, RectangleFlex, or OvalFlex
- Masonry fasteners are included
- Two options for attaching the lid - wing nuts, or cap screws
-
Additional Information
Clearance Non-Clearance Country Of Origin United States Fits Lengths From 14 Inch Fits Widths From 14 Inch Mesh Height 12 Inches Product Type Chimney Caps Pipe Piece Chimney Cap Mesh 3/4in Mesh Left Overlay Image ets-made-usa-prod.png Brand Gelco
Gelco Stainless Knock-Down Multi-Flue Chimney Top Model A 14" x 14" x 12" Screen - Assembling the Knock-Down Chimney Top is made easy with two drop in hinge pins to assemble the screen, and either four cap screws or wing nuts to mount the lid (both included). The Knock-Down Chimney Top features a durable 304 stainless steel construction and weld nut technology in the top mounting strip to completely eliminate stripped threads. Masonry fasteners are included for convenient mounting. For proper draft, the space between the top of the flue tile and the bottom of the cap lid needs to be at least 5". To figure the correct cap height, add 5" to the height of the flue tile above the crown, then round up to the next height.
- Easy assembly
- 12" Screen height
- 19 1/2'' x 19 1/2'' Lid size
- 14" x 14" Screen-to-screen
- Lifetime warranty
Specifications:
- Lid dimension: 19 1/2'' x 19 1/2''
- Screen-to-screen size: 14" x 14". 12" High, 3/4" mesh screen
- Construction materials: 304 Stainless steel, 3/4" mesh
- Listings: UL listed as part of HomeSaver relining system using Pro, UltraPro, RoundFlex, RectangleFlex, or OvalFlex
- Masonry fasteners are included
- Two options for attaching the lid - wing nuts, or cap screws
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | United States |
| Fits Lengths From | 14 Inch |
| Fits Widths From | 14 Inch |
| Mesh Height | 12 Inches |
| Product Type | Chimney Caps |
| Pipe Piece | Chimney Cap |
| Mesh | 3/4in Mesh |
| Left Overlay Image | ets-made-usa-prod.png |
| Brand | Gelco |
