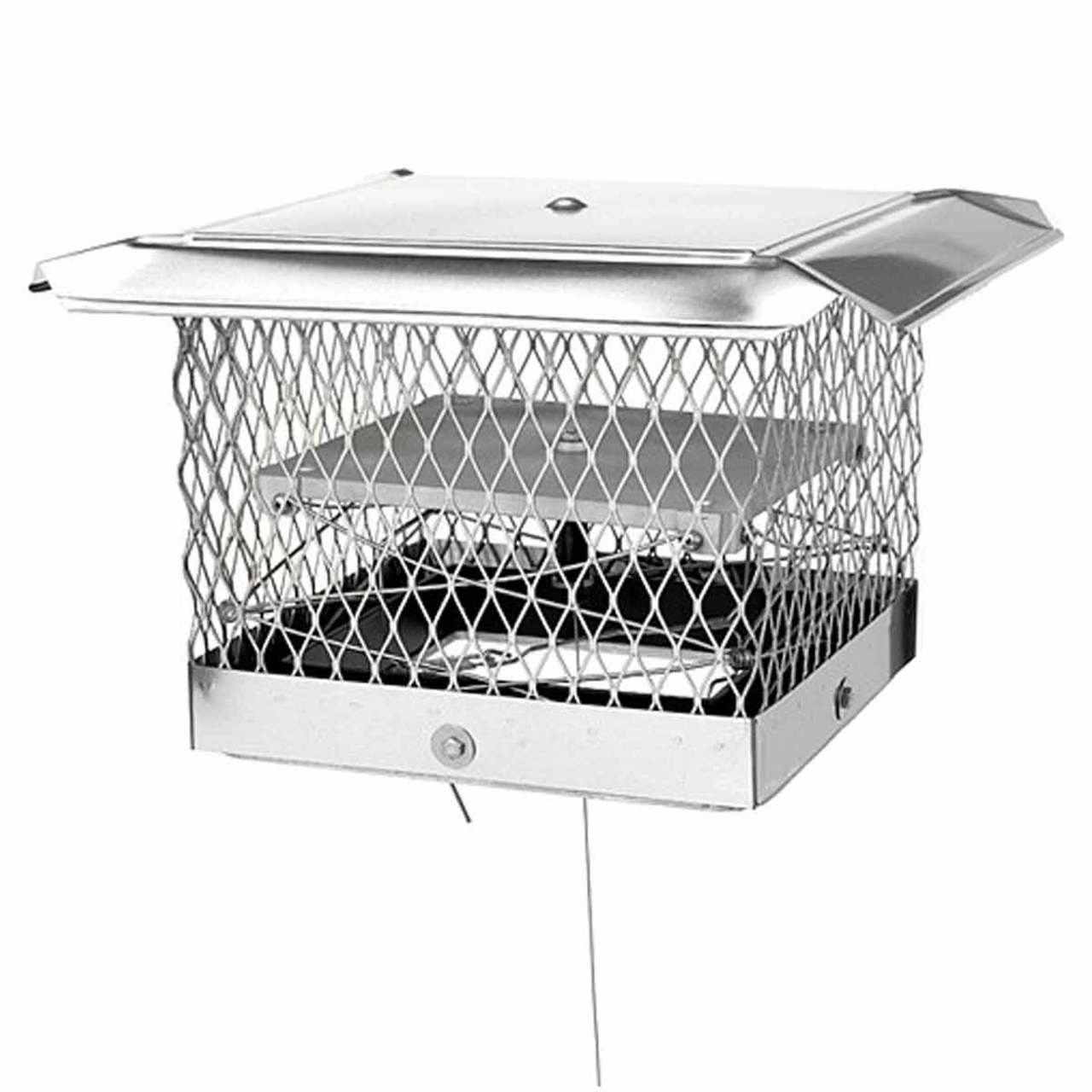

17''x17'' Lock-Top II Chimney Cap-Damper 3/4'' Mesh

17''x17'' Lock-Top II Chimney Cap-Damper 3/4'' Mesh
SKU: NLE5CO_09510
MPN: 9510
$811.16
$477.15


(No reviews yet) Write a Review
RECOMMENDED USES
    New Lock-Top II 17" x 17" Chimney Cap/Damper - This premier energy-saving product is 90% more efficient than a traditional throat damper. With todays skyrocketing energy costs, the dollars saved in heat loss make a cap/damper combination a better choice than a chimney cap alone. The energy savings will quickly pay for the installation. The Lock-Top II Chimney Cap/Damper arrives fully assembled and ready to install. Its...
In Stock
$811.16
$477.15
  • Details

    New Lock-Top II 17" x 17" Chimney Cap/Damper - This premier energy-saving product is 90% more efficient than a traditional throat damper. With todays skyrocketing energy costs, the dollars saved in heat loss make a cap/damper combination a better choice than a chimney cap alone. The energy savings will quickly pay for the installation.

    The Lock-Top II Chimney Cap/Damper arrives fully assembled and ready to install. Its base mounts to the sweep's ring which attaches to the flue tile with silicone sealant. A 30' stainless steel cable drops down the flue, and a hardware set mounts in the firebox. The end result is a damper that opens and closes with ease at the tug of a drop down cable. The Lock-Top II is equipped with a fire safety device that enables the damper to remain open in case of a chimney fire.

    *Top-sealing dampers are not recommended with gas logs- failure to open could cause carbon monoxide to back up into the house.

    • Measures 17" x 17"
    • 3/4" mesh screen
    • 11 3/8" Overall height
    • 225 sq. in. cross-sectional area
    • Fits inside flue sizes 14" x 14" to 17 1/2" x 17 1/2"
    • 30' Stainless steel cable included
    • Silicone sealant included
    • Sweep's ring included



    Specifications:
    • Measures 17" x 17"
    • 3/4" Mesh screen
    • 11 3/4" Overall height
    • Fits inside flue sizes 14" x 14" to 17 1/2" x 17 1/2"
    • Stainless steel and cast aluminum construction
    • Silicone sealant, sweep's ring, 30' stainless steel cable included
  • Additional Information
    Clearance Non-Clearance
    Country Of Origin United States
    Fits Lengths From 14 Inch
    Fits Lengths From 16.5 Inch
    Fits Lengths From 17 Inch
    Fits Lengths From 17.5 Inch
    Fits Lengths From 14.5 Inch
    Fits Lengths From 15 Inch
    Fits Lengths From 15.5 Inch
    Fits Lengths From 16 Inch
    Fits Widths From 14 Inch
    Fits Widths From 14.5 Inch
    Fits Widths From 15 Inch
    Fits Widths From 15.5 Inch
    Fits Widths From 16 Inch
    Fits Widths From 16.5 Inch
    Fits Widths From 17 Inch
    Fits Widths From 17.5 Inch
    Product Type Chimney Caps
    Pipe Piece Damper
    Pipe Piece Chimney Cap
    Mesh 3/4in Mesh
    Left Overlay Image ets-made-usa-prod.png
    Additional Information

     Installation Instructions

    Brand LockTop

New Lock-Top II 17" x 17" Chimney Cap/Damper - This premier energy-saving product is 90% more efficient than a traditional throat damper. With todays skyrocketing energy costs, the dollars saved in heat loss make a cap/damper combination a better choice than a chimney cap alone. The energy savings will quickly pay for the installation.

The Lock-Top II Chimney Cap/Damper arrives fully assembled and ready to install. Its base mounts to the sweep's ring which attaches to the flue tile with silicone sealant. A 30' stainless steel cable drops down the flue, and a hardware set mounts in the firebox. The end result is a damper that opens and closes with ease at the tug of a drop down cable. The Lock-Top II is equipped with a fire safety device that enables the damper to remain open in case of a chimney fire.

*Top-sealing dampers are not recommended with gas logs- failure to open could cause carbon monoxide to back up into the house.

  • Measures 17" x 17"
  • 3/4" mesh screen
  • 11 3/8" Overall height
  • 225 sq. in. cross-sectional area
  • Fits inside flue sizes 14" x 14" to 17 1/2" x 17 1/2"
  • 30' Stainless steel cable included
  • Silicone sealant included
  • Sweep's ring included



Specifications:
  • Measures 17" x 17"
  • 3/4" Mesh screen
  • 11 3/4" Overall height
  • Fits inside flue sizes 14" x 14" to 17 1/2" x 17 1/2"
  • Stainless steel and cast aluminum construction
  • Silicone sealant, sweep's ring, 30' stainless steel cable included
