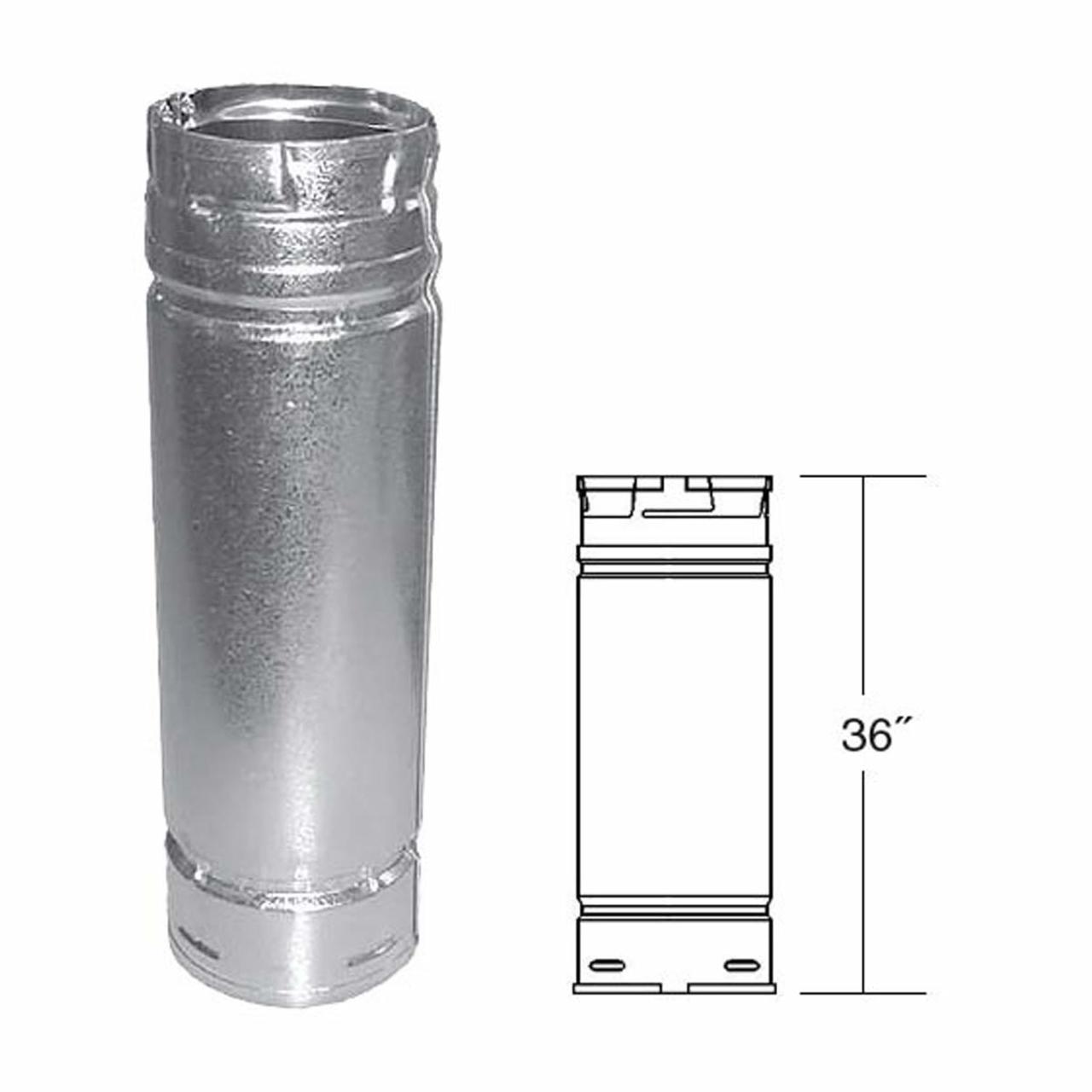

4" x 36" PelletVent Pro Galvalume Pellet Stove Chimney Pipe - 4PVP-36

PelletVent Pro
SKU:
NLE5SP_4PVP_36
|
UPC:
662492764633
Availability:
In Stock: Ships in 1-3 Business Days
$128.31 $147.99
Low Stock!
Available

PelletVent Pro pipe features fully unitized twist-lock construction in 3" and 4" diameters. Listed at 1" clearance to combustibles, in the USA, it can be used in both vertical and horizontal installations. Made from 304 stainless steel welded seam inner wall, combined with a galvalume welded seam outer wall for wood pellet, corn, oil fuel and biofuel burning appliances. Pipe OD is diameter + 5/8".

PelletVent Pro is a venting system designed for stoves and inserts that use wood pellets and oil fuel. It is also built to vent corn and other biofuel products (Rated for continuous use flue temperatures up to 570° F).

See all 4" PelletVent Pro Chimney Components.

Additional Information:

PelletVent Pro is a revolutionary concept for venting both pellet and corn-burning stoves and inserts. As a result of Simpson Dura-Vent's cutting edge manufacturing process and commitment to innovation, PelletVent Pro is uncompromised in attention to detail and performance. The precise twist -lock connection requires no gaskets or sealants to achieve leak-resistant connections. PelletVent Pro's perfect fit and finish is made possible with laser-welded stainless steel inner walls and galvalume outer walls which results in a clean, streamline appearance. Today, approximately 3 out of every 4 pellet stoves in the US and Canada are vented with a Simpson Dura-Vent pellet system.

Adobe PDF Icon  Installation Instructions.

California Proposition 65 Warning SymbolWARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
Specifications:

  • Diameter: 4"
  • Construction Materials: Laser-welded, double-wall pipe with an inner wall of .012" stainless steel and a .018" laser-welded galvalume outer wall
  • Clearances: 1" clearance to combustibles in the USA for appliances using wood pellets or oil. 1" clearance to combustibles in Canada for oil-burning (type L vent) appliances. 3" clearance to combustibles in Canada for wood pellet-burning appliances
  • Listings: c-UL-us Listed to UL 641 (MH8381 and MH14420). ULC Listed to ULC S609, ULC/ORD C441 (CMH1439 and CMH1440)
  • Twist-lock connection
  • Diameter: 4"
  • Construction Materials: Laser-welded, double-wall pipe with an inner wall of .012" stainless steel and a .018" laser-welded galvalume outer wall
  • Clearances: 1" clearance to combustibles in the USA for appliances using wood pellets or oil. 1" clearance to combustibles in Canada for oil-burning (type L vent) appliances. 3" clearance to combustibles in Canada for wood pellet-burning appliances
  • Listings: c-UL-us Listed to UL 641 (MH8381 and MH14420). ULC Listed to ULC S609, ULC/ORD C441 (CMH1439 and CMH1440)
  • Twist-lock connection

Manufacturer's Limited Lifetime Warranty - (only when installed by a Qualified Professional Installer)

Width:
5.00 (in)
Height:
5.00 (in)
Depth:
36.00 (in)
_PDF:
pelletventproinstallation|pdf|Installation Instructions
Clearance:
Non-Clearance
Country Of Origin:
United States
Pipe Wall:
Double Wall
Pipe Piece:
Chimney Pipe
Type:
Pellet Vent Pipe
Diameter:
4 Inch
Size:
36in
Product Type:
Chimney Pipe
