6'' DSP Vertical Installation Kit - DSP-6-VK

6'' DSP Vertical Installation Kit - DSP-6-VK
SKU: NLE5SE_DSP_6_VK
MPN: 266610
$356.60
Quantity Discounts


RECOMMENDED USES
    Our Vertical Installation Kit includes everything you need for most ceiling supported installations with Ultra-Temp and Galva-Temp Chimney. Kit includes: Ultra-Temp and Galva-Temp Chimney Adapter DSP Finishing Band DSP Telescopic Length See all 6" DSP Double Wall Chimney Pipe Components .
Availability: In Stock
$356.60
  • Details

    Our Vertical Installation Kit includes everything you need for most ceiling supported installations with Ultra-Temp and Galva-Temp Chimney.

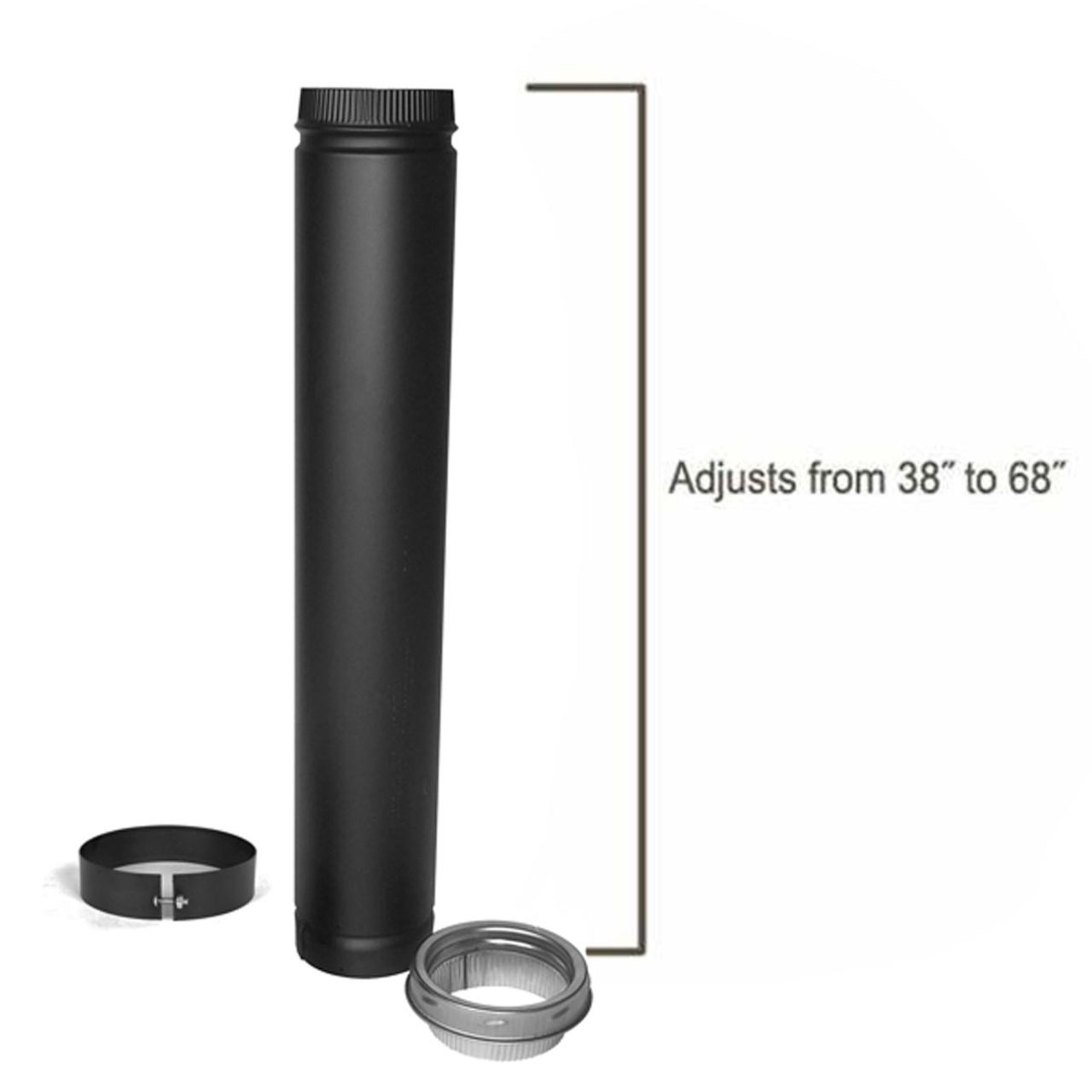

    Kit includes:

    • Ultra-Temp and Galva-Temp Chimney Adapter
    • DSP Finishing Band
    • DSP Telescopic Length

    See all 6" DSP Double Wall Chimney Pipe Components.

    Additional Information:

    Model DSP Double Wall Stove Pipe is a connector pipe that links your wood stove to an insulated chimney. The connector is an important component of a woodburning system because its correct size, arrangement and installation improve the performance and safety of the heating system. DSP Double Wall Stove Pipe is listed and tested to ULC S641 and UL 103 standards. Model DSP has an attractive outer black surface made of durable aluminized steel to withstand temperatures up to 1200 degrees F in continuous operation. Double Wall construction with a 1/4" air space between inner and outer pipes provides a superior insulating value compared to single wall pipe. Double Wall Stove Pipe not only keeps the flue temperatures higher, it also keeps the outer pipe temperatures cooler, allowing for reduced clearances to combustibles.

    Adobe PDF Icon  Installation Instructions

    Adobe PDF Icon  DSP Double Wall Stovepipe Catalog


    Specifications:
    • Color: Black
    • Dimensions: 6'' ID x 6 1/2'' OD x 38'' - 68'' Long
    • Construction materials: Aluminized steel outer casting with stainless steel inner liner
    • Clearance to combustibles: 6"
    • Listings: Listed and tested to ULC S641 and UL 103 standards
  • Additional Information
    Clearance Non-Clearance
    Country Of Origin United States
    Product Type Stove Pipe
    Pipe Piece Connector
    Type Stove Pipe
    Diameter 6 Inch
    Left Overlay Image Made in America.png
    Lowest Bulk Price 320.94
    Brand DSP Double Wall

Our Vertical Installation Kit includes everything you need for most ceiling supported installations with Ultra-Temp and Galva-Temp Chimney.

Kit includes:

  • Ultra-Temp and Galva-Temp Chimney Adapter
  • DSP Finishing Band
  • DSP Telescopic Length

See all 6" DSP Double Wall Chimney Pipe Components.

Additional Information:

Model DSP Double Wall Stove Pipe is a connector pipe that links your wood stove to an insulated chimney. The connector is an important component of a woodburning system because its correct size, arrangement and installation improve the performance and safety of the heating system. DSP Double Wall Stove Pipe is listed and tested to ULC S641 and UL 103 standards. Model DSP has an attractive outer black surface made of durable aluminized steel to withstand temperatures up to 1200 degrees F in continuous operation. Double Wall construction with a 1/4" air space between inner and outer pipes provides a superior insulating value compared to single wall pipe. Double Wall Stove Pipe not only keeps the flue temperatures higher, it also keeps the outer pipe temperatures cooler, allowing for reduced clearances to combustibles.

Adobe PDF Icon  Installation Instructions

Adobe PDF Icon  DSP Double Wall Stovepipe Catalog


Specifications:
  • Color: Black
  • Dimensions: 6'' ID x 6 1/2'' OD x 38'' - 68'' Long
  • Construction materials: Aluminized steel outer casting with stainless steel inner liner
  • Clearance to combustibles: 6"
  • Listings: Listed and tested to ULC S641 and UL 103 standards
Clearance Non-Clearance
Country Of Origin United States
Product Type Stove Pipe
Pipe Piece Connector
Type Stove Pipe
Diameter 6 Inch
Left Overlay Image Made in America.png
Lowest Bulk Price 320.94
Brand DSP Double Wall
