7'' DuraTech Cathedral Ceiling Support Kit - DT720-KIT

DuraTech
SKU:
BNDL_NLE5SP_DT720
|
UPC:
662492442005
Availability:
Available
$766.75
Low Stock!
Available

The 7" DuraTech Cathedral Ceiling Support Kit contains all the components needed to install a 7" chimney (excluding black stove pipe and DuraTech chimney sections) straight up through a cathedral ceiling.

DuraTech features light weight insulation, twist-lock fittings, support boxes with factory installed starter sections, elbows with 360° swivel base, select black finish pipe lengths, and five foot length pipe sections.

Included in this 7" DuraTech Kit:

  • 7" DuraTech Chimney Cap
  • 7" DuraTech Storm Collar
  • 7" DuraTech Cathedral Ceiling Support Box
  • 7" DuraTech Roof Flashing
  • 7" DuraTech Stove PIpe Adapter

Options Available Include:

  • 7" DuraTech Extended Roof Bracket

Not Included in this kit:

  • 7" DuraBlack, or DVL Black Stove Pipe Lengths
  • 7" DuraTech Chimney Pipe Sections Lengths

The 7" DuraTech Cathedral Ceiling Support Kit contains all the components needed to install an 6" chimney (excluding black stove pipe and DuraPlus chimney sections) straight up through a normal flat ceiling.

This kit includes the following: (from the cap down)

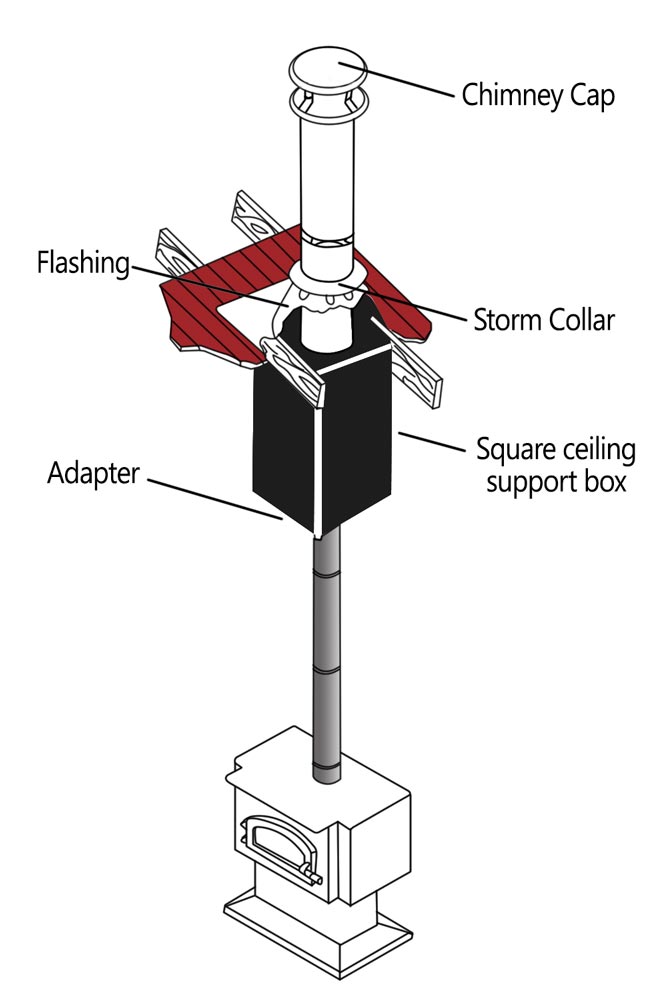

Diagram for 7'' DuraTech Cathedral Ceiling Support Kit

7" DuraTech Chimney Cap is required where the chimney pipe terminates above the roof line. This Chimney Cap has removable screws to allow for easier cleaning of the chimney and spark arrestor screen. Includes spark arrestor screen.

6" DuraTech Storm Collar this aluminum storm collar is required for use on any through-the-roof installations using a roof flashing.

7" DuraTech Roof Flashing provides leak proof roof penetration. The purpose of the roof flashing is to weatherproof the roof where the chimney penetrates the roof. The flashing gets tucked under the shingles and the shingles are cut around the flashing if needed. The flashing is sealed to the roof with silicone to provide that needed seal to prevent water from getting under the flashing and getting into the attic or house, then a storm collar is placed over the flashing and sealed to the chimney pipe with a high temp silicone to prevent water from running down the chimney.

7" DuraTech Attic Insulation Shield is required for installations that pass through an attic to prevent insulation and debris from accumulating near the chimney. The Attic Insulation Shield fits over the Firestop Radiation Shield or Support box and consists of two-parts - a collar and a base.

7" DuraTech Square Ceiling Support is used to support the chimney pipe and provide a positive connection between the support box and the chimney pipe with a built-in twist lock feature. This ceiling support is suitable for both flat and cathedral ceiling applications and it can also be used in short attic spaces. Designed for appliances that are tested and listed for use with a 2100 Degree F HT chimney system, such as woodstoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas. This Ceiling support fits between 16" on center joists and most mobile home applications and supports up to 60' of DuraTech Chimney. A 2" wide trim collar is included.

6" Stove Pipe Adapter is required to connect the stove pipe to the chimney pipe and there are several options to choose from depending on your requirements.

  • Slip Connector - Item Number 1771Slip Connector - Item Number 1771 - Use to connect DuraBlack single wall stove pipe to the ceiling support box. Use the slip connector if you do not have any other adjustable stove pipe length between your stove and support box. This adapter will provide a 3" to 13" slip fitting without having to cut pipe for a perfect fit. Only connects to rigid DuraBlack stove pipe, and cannot be used with telescoping pipe lengths.
  • DuraBlack Chimney Adapter - 8778 DuraBlack Chimney Adapter - 8778 - This adapter is recommended to connect DuraBlack single-wall stove pipe to DuraPlus or DuraTech chimney pipe if you do not require adjustability in your stove pipe height. You can also use this adapter to connect DVL double-wall stove pipe to DuraPlus or DuraTech chimney.
  • Snap Lock Adapter - Item Number 6791 Snap Lock Adapter - Item Number 6791 - Snaps into your ceiling support boxor finishing collar and extends down to fit into the stovepipe. Provides a drip-free connection to DuraTech, DuraPlus, DuraPlus HTC chimney pipe or DuraLiner chimney liner.
  • DVL Adapter - Item Number 8775DVL Adapter - Item Number 8775 - Use to connect from double-wall DVL to DuraTech, DuraPlus, DuraPlus HTC, and DuraLiner for a through-the-wall or ceiling support installation. Required for proper connection. Provides a strong mechanical connection. Painted black.

Optional extended roof bracket is required when your chimney extends more than 5' above the roof. It will provide stability to the chimney against wind and snow

Simply add enough 7" stove pipe and class A chimney pipe to complete your installation.

California Proposition 65 Warning SymbolWARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
Specifications:

  • 7'' diameter pipe features inner wall of .020'' 430 stainless steel.
  • Outer wall options of .016'' 430 stainless steel or .021'' galvalume steel.
  • .016'' 430 stainless steel inner liner.
  • A Thermal Tech (ceramic refractory) blanket insulation is encased between walls.
  • Stainless steel end rings seal the pipe.

The 7" DuraTech Cathedral Ceiling Support Kit contains all the components needed to install a 7" chimney (excluding black stove pipe and DuraTech chimney sections) straight up through a cathedral ceiling.

Materials and Construction

  • 7'' diameter pipe features inner wall of .020'' 430 stainless steel.
  • Outer wall options of .016'' 430 stainless steel or .021'' galvalume steel.
  • .016'' 430 stainless steel inner liner.
  • A Thermal Tech (ceramic refractory) blanket insulation is encased between walls.
  • Stainless steel end rings seal the pipe.
Manufacturer's Limited Lifetime Warranty - (only when installed by a Qualified Professional Installer)
Width:
25.00 (in)
Height:
15.00 (in)
Depth:
29.00 (in)
Clearance:
Non-Clearance
Country Of Origin:
United States
Pipe Wall:
Double Wall
Product Type:
Chimney Kits
Diameter:
6 Inch
