Details

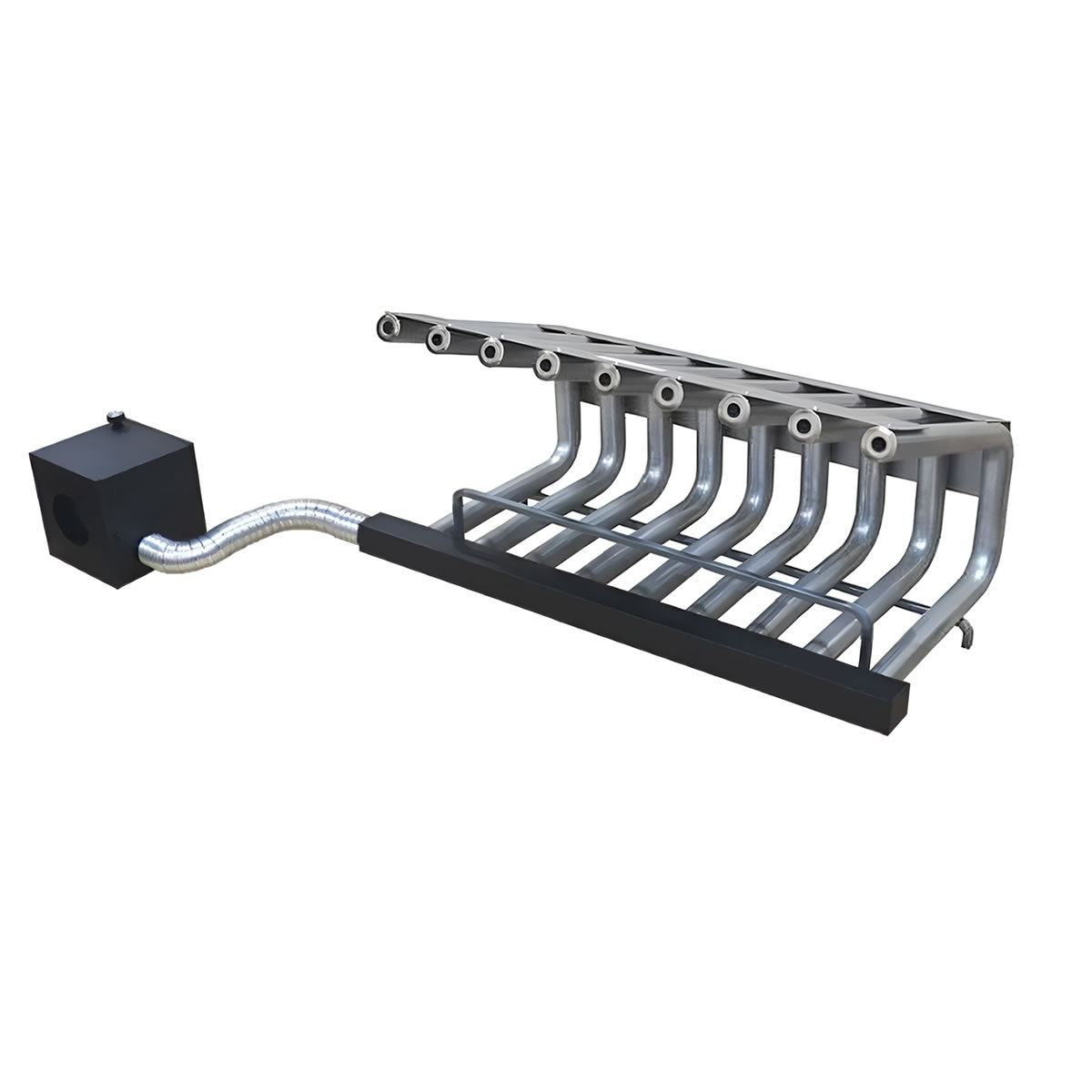

The ZCFH Fireplace Heater (for smaller fireplaces) was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500'F and will produce up to 48,000 BTUs of heat, enough to heat a large room or two. It's perfect for smaller fireplaces and zero-clearance fireplaces!
The FHZCK is easy to install. Simply assemble the blower on the tubes and seal with supplied silicone sealer. Place heater into your fireplace, plug it in and build a fire. This hearth heater still works during a power outage by converting heat naturally through the tubing and into your home. The blower is connected to the grate by means of a flexible tube, which allows the blower to be positioned in front of the fireplace opening. Tubes are made of heavy gauge aluminized steel for long life. Limited 1 Year Warranty. Measures: Height 17-3/4" , Depth 15-1/2", and Width 33 3/4".
Product Note: This is a custom size and will take approx 2 to 4 weeks to receive.
For larger fireplaces see the FH Fireplace Heater.
Click here for a brochure.- Low Cost
- Simple Installation
- Works during a power outage
- Fits most small fireplaces (See additional information tab for sizing)
- Heavy gauge aluminized steel tubing for long life
- Blower Box can mount on left or right side by flipping the manifold
- 2 Speed blower delivers up to 98,000 BTU's of heat for a 500% heat output increase!
- Can be used with a glass fireplace door but additional flexible hose may be needed and must be removed to close the doors when not in use.
Specifications:- 2 speed blower
- 160 CFM Fan
- Delivers up to 98,000 BTU's of heat
- Diameter of tubes 1-3/4"
- Heat Pipes are made of .063 heavy gauge aluminized steel which inhibits burn through and rust
- Flexible blower connector is adjustable from 8" to 18" and can be extended if necessary by ordering an additional flexible tube
- Size: 17 3/4" High (removal of legs reduces height to 15 1/4") 15 1/2" Deep, 33" Wide.
- See Additional information tab for sizing
-
Additional Information
Clearance Non-Clearance Country Of Origin United States Product Type Fireplace Grates Left Overlay Image Made in America.png Color Silver Color Name Silver Brand Custom Firescreen
The ZCFH Fireplace Heater (for smaller fireplaces) was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500'F and will produce up to 48,000 BTUs of heat, enough to heat a large room or two. It's perfect for smaller fireplaces and zero-clearance fireplaces!
The FHZCK is easy to install. Simply assemble the blower on the tubes and seal with supplied silicone sealer. Place heater into your fireplace, plug it in and build a fire. This hearth heater still works during a power outage by converting heat naturally through the tubing and into your home. The blower is connected to the grate by means of a flexible tube, which allows the blower to be positioned in front of the fireplace opening. Tubes are made of heavy gauge aluminized steel for long life. Limited 1 Year Warranty. Measures: Height 17-3/4" , Depth 15-1/2", and Width 33 3/4".
Product Note: This is a custom size and will take approx 2 to 4 weeks to receive.
For larger fireplaces see the FH Fireplace Heater.
Click here for a brochure.
Specifications:
The FHZCK is easy to install. Simply assemble the blower on the tubes and seal with supplied silicone sealer. Place heater into your fireplace, plug it in and build a fire. This hearth heater still works during a power outage by converting heat naturally through the tubing and into your home. The blower is connected to the grate by means of a flexible tube, which allows the blower to be positioned in front of the fireplace opening. Tubes are made of heavy gauge aluminized steel for long life. Limited 1 Year Warranty. Measures: Height 17-3/4" , Depth 15-1/2", and Width 33 3/4".
Product Note: This is a custom size and will take approx 2 to 4 weeks to receive.
For larger fireplaces see the FH Fireplace Heater.
Click here for a brochure.
- Low Cost
- Simple Installation
- Works during a power outage
- Fits most small fireplaces (See additional information tab for sizing)
- Heavy gauge aluminized steel tubing for long life
- Blower Box can mount on left or right side by flipping the manifold
- 2 Speed blower delivers up to 98,000 BTU's of heat for a 500% heat output increase!
- Can be used with a glass fireplace door but additional flexible hose may be needed and must be removed to close the doors when not in use.
Specifications:
- 2 speed blower
- 160 CFM Fan
- Delivers up to 98,000 BTU's of heat
- Diameter of tubes 1-3/4"
- Heat Pipes are made of .063 heavy gauge aluminized steel which inhibits burn through and rust
- Flexible blower connector is adjustable from 8" to 18" and can be extended if necessary by ordering an additional flexible tube
- Size: 17 3/4" High (removal of legs reduces height to 15 1/4") 15 1/2" Deep, 33" Wide.
- See Additional information tab for sizing
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | United States |
| Product Type | Fireplace Grates |
| Left Overlay Image | Made in America.png |
| Color | Silver |
| Color Name | Silver |
| Brand | Custom Firescreen |
