Details

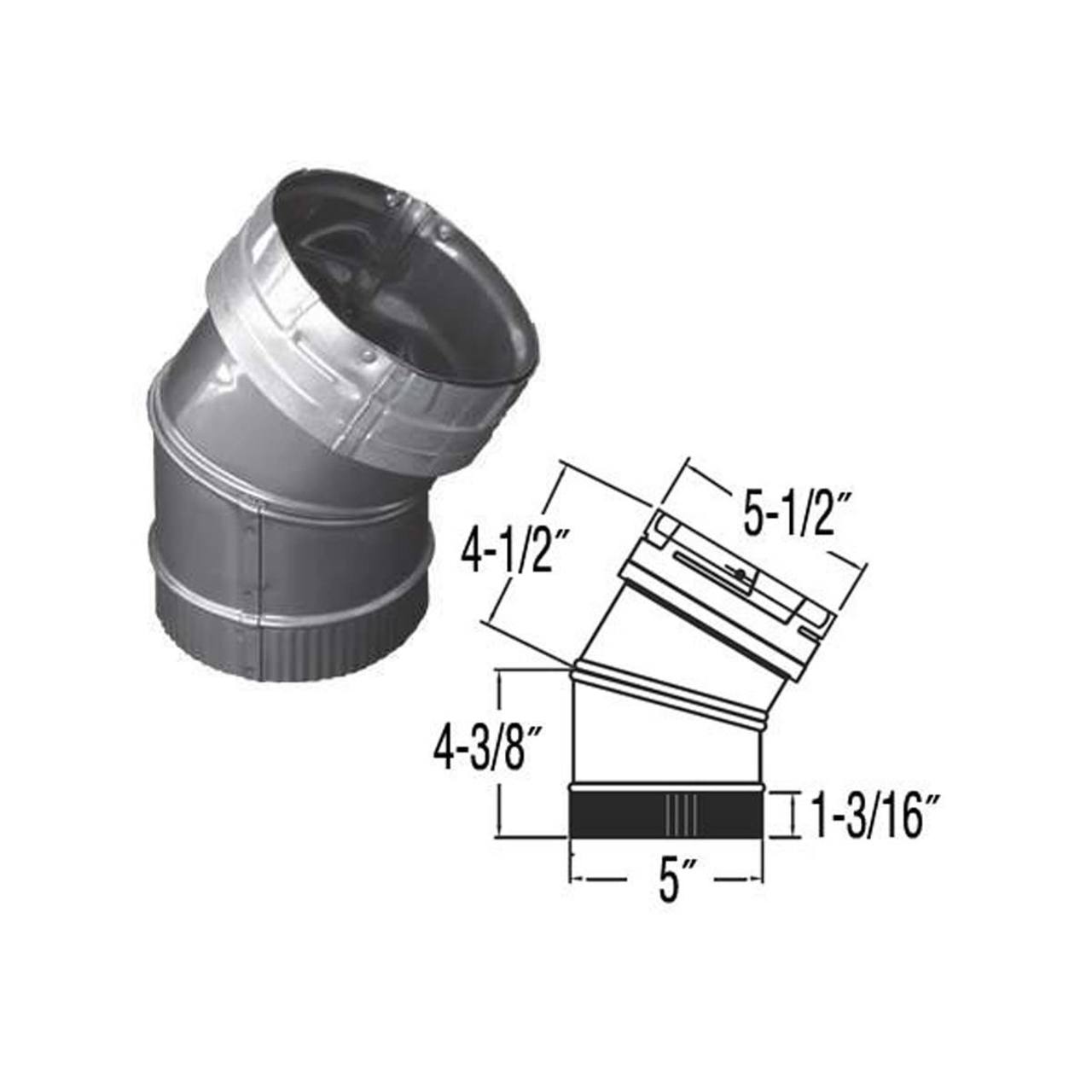

The Simpson DuraLiner 30 Degree Elbow is used to offset obstructions. Elbow is single wall and can also be used as a stove connector. Built-in fittings for connection to DuraLiner.
See all 5" DuraLiner Chimney Components.
Additional Information:
DuraLiner is a high-temperature, insulated double-wall masonry relining system for use with appliances fueled by gas, pellet, oil, wood, or coal. It safely protects masonry chimneys from the damaging effects of flue product condensation. DuraLiner ensures safe and efficient venting of heating appliances. It is the only factory-insulated product with zero/zero clearance for high heat wood-burning appliances. No need to uncoil flex, insulate a majority of the pipe, or protect the insulation when installing. A smooth liner means less creosote buildup.
Specifications:- Diameter: 5" Round
- Construction Material: .016" 304 Single Wall Stainless Steel
- Clearance: 0" clearance between the liner and masonry and 0" clearance between the masonry and combustibles
- Listings: UL Listed to UL 1777 (MH14420), and ULC Listed to ULC S635 (CMH1329)
- Twist-lock connections with pre-drilled holes
WARNING:
This product can expose you to chemicals including Chromium, which
is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov.
-
Additional Information
Clearance Non-Clearance Country Of Origin United States Pipe Wall Single Wall Pipe Piece 30 Degree Elbow Type Chimney Liner Pipe Diameter 5 Inch Product Type Chimney Pipe Left Overlay Image Made in America.png Brand DuraLiner
The Simpson DuraLiner 30 Degree Elbow is used to offset obstructions. Elbow is single wall and can also be used as a stove connector. Built-in fittings for connection to DuraLiner.
See all 5" DuraLiner Chimney Components.
Additional Information:
DuraLiner is a high-temperature, insulated double-wall masonry relining system for use with appliances fueled by gas, pellet, oil, wood, or coal. It safely protects masonry chimneys from the damaging effects of flue product condensation. DuraLiner ensures safe and efficient venting of heating appliances. It is the only factory-insulated product with zero/zero clearance for high heat wood-burning appliances. No need to uncoil flex, insulate a majority of the pipe, or protect the insulation when installing. A smooth liner means less creosote buildup.
Specifications:
- Diameter: 5" Round
- Construction Material: .016" 304 Single Wall Stainless Steel
- Clearance: 0" clearance between the liner and masonry and 0" clearance between the masonry and combustibles
- Listings: UL Listed to UL 1777 (MH14420), and ULC Listed to ULC S635 (CMH1329)
- Twist-lock connections with pre-drilled holes
WARNING:
This product can expose you to chemicals including Chromium, which
is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to http://www.P65Warnings.ca.gov.
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | United States |
| Pipe Wall | Single Wall |
| Pipe Piece | 30 Degree Elbow |
| Type | Chimney Liner Pipe |
| Diameter | 5 Inch |
| Product Type | Chimney Pipe |
| Left Overlay Image | Made in America.png |
| Brand | DuraLiner |
