6'' Shasta Vent Cathedral Ceiling Support Box Kit

Shasta Vent
SKU:
BNDL_NLE5VS_SV620
Availability:
Available
$431.90
Low Stock!
Available

The 6" ShastaVent Cathedral Ceiling Support Kit contains all the components needed to install a 6" chimney (excluding black stove pipe and ShastaVent chimney sections) straight up through a cathedral ceiling.

Materials and Construction

  • 304 stainless steel inner wall
  • 304 stainless steel steel outer wall
  • High Temperature Ceramic blanket insulation encased between walls
  • Stainless steel end rings to seal the pipe
  • Light weight insulation, twist-lock fittings, support boxes with factory installed starter sections

This kit includes the following (from the cap down):

Diagram for 6'' ShastaVent Cathedral Ceiling Support Kit

6" Shasta Vent Deluxe Chimney Cap - The Chimney Cap tops off the chimney system, helps to retain sparks and embers, and protects the chimney opening from infiltration of weather, debris, and animals. The Deluxe Cap features a removable spark arrestor screen. This Shasta Vent Deluxe Chimney Cap is made of stainless steel and designed to twist-lock onto the chimney pipe.

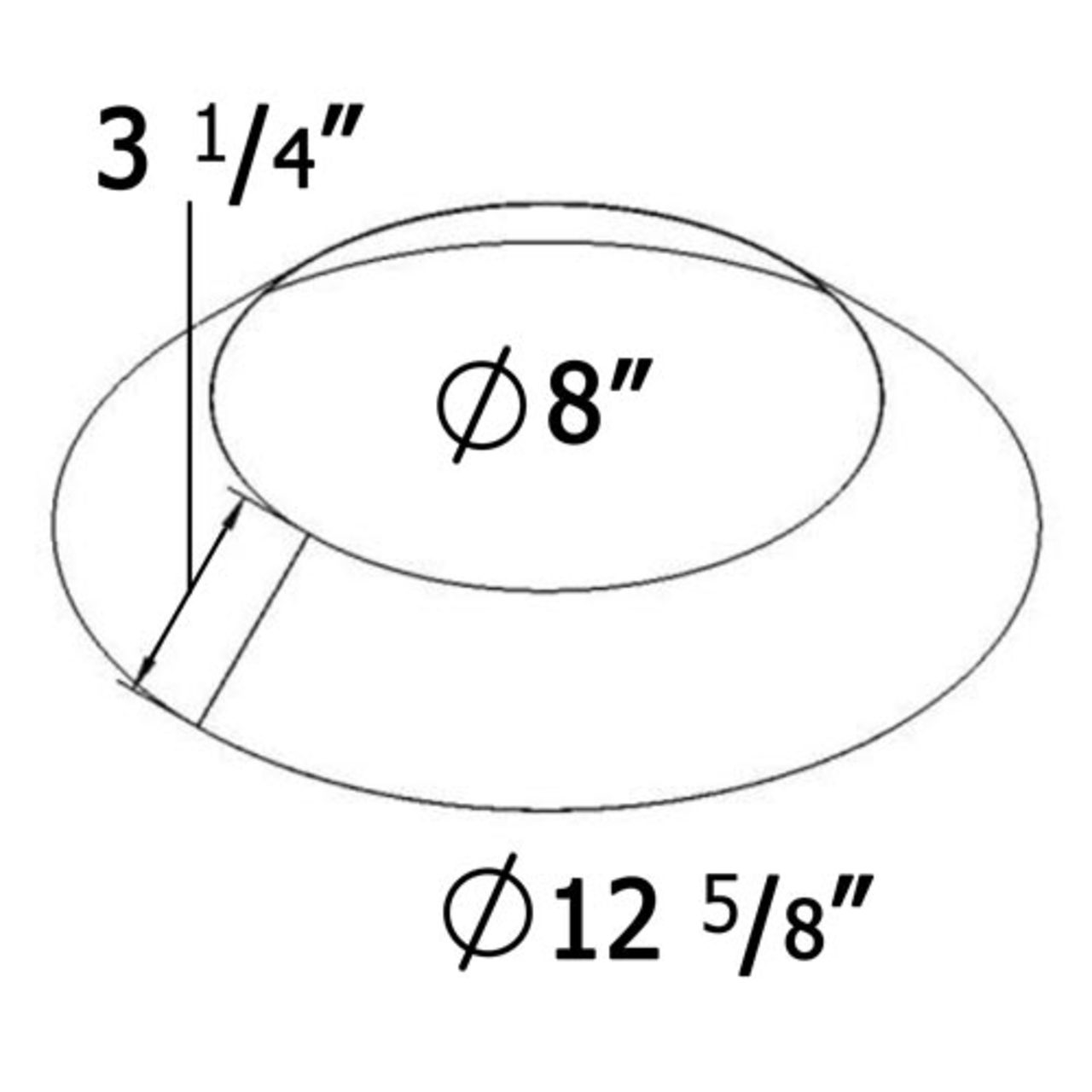

6" Shasta Vent Storm Collar - The Storm Collar works together with Flashing to provide a weatherproof seal where the chimney penetrates through the roof. The Storm Collar is installed directly above the Flashing and must be sealed to the chimney using high-temperature silicone sealant (RTV 500 Degrees F or better).

6" Shasta Vent Roof Flashing - The Flashing provides a weather-resistant means of sealing the chimney system where it passes through the roof.

6" Shasta Vent Ceiling Support Box - The Shasta Vent 24" Tall Support Box works with ceiling pitch to 18/12 pitch (57 degrees). The Ceiling Support Box supports the chimney installation and provides a transition from the stove pipe to the chimney. The Ceiling Support Box can support a maximum of 50-ft of chimney pipe. For a taller system, a Tee Support can be added to help support the additional weight.

Optional extended roof bracket is required when your chimney extends more than 5' above the roof. It will provide stability to the chimney against wind and snow

Simply add enough 6" stove pipe and Shasta Vent Class A chimney pipe to complete your installation.

Additional Information:

Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision-engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between stainless steel walls to maintain a strong draft while maintaining a relatively cooler temperature on the exterior wall.

Adobe PDF File Icon ShastaVent Catalog


Specifications:

Chimney Cap

  • Diameter: 6''
  • Construction Material: .020'' type 304 Stainless Steel inner and outer walls
  • Clearance: 2" clearance to combustibles
  • Listings: ETL Listed by Intertek to the HT requirements of UL 103
  • Twist-lock joints for ease of assembly and Locking Bands for security, High-Temperature, thin-fiber ceramic insulation blanket maintains superior draft performance
  • Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

Storm Collar

  • Diameter: 6''
  • Construction Material: .020'' type 304 Stainless Steel inner and outer walls
  • Clearance: 2" clearance to combustibles
  • Listings: ETL Listed by Intertek to the HT requirements of UL 103
  • Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

Support Box

  • Diameter: 8''
  • 24" Tall Box: Up to 16/12 ceiling pitch (53 degrees)
  • Construction Material: .020'' type 304 Stainless Steel inner and outer walls
  • Clearance: 2" clearance to combustibles
  • Listings: ETL Listed by Intertek to the HT requirements of UL 103
  • Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

Flashing

  • Diameter: 6''
  • Construction Material: .020'' type 304 Stainless Steel inner and outer walls
  • Clearance: 2" clearance to combustibles
  • Listings: ETL Listed by Intertek to the HT requirements of UL 103
  • Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

The 6" ShastaVent Cathedral Ceiling Support Kit contains all the components needed to install a 6" chimney (excluding black stove pipe and ShastaVent chimney sections) straight up through a cathedral ceiling.

LIMITED LIFETIME WARRANTY Shasta Vent Inc (Shasta Vent) provides this limited lifetime warranty for all of its products. Subject to the limitations set forth below, Shasta Vent warrants that its products will be free from defects in material or manufacturing, if properly installed, maintained and used. Shasta Vent products are fully warranted if installed only by a professional installer (see below for definition). This Warranty is not transferable from the original homeowner. This warranty does not cover normal wear and tear, smoke damage or damage caused by chimney fires, acts of God, or any product that was: (1) modified or altered; (2) improperly serviced, inspected or cleaned; or (3) subject to negligence or any use not in accordance with the installation instructions included with the product as determined by Shasta Vent.

Warranty Information Adobe PDF File Icon  Manufacturer's Limited Lifetime Warranty


Width:
23.00 (in)
Height:
15.00 (in)
Depth:
28.00 (in)
_PDF:
SV-All-Fuel-HT-Chimney-Installation-Instructions|pdf|Shasta Vent Installation Instructions
Clearance:
Non-Clearance
Country Of Origin:
United States
Pipe Wall:
Double Wall
Product Type:
Chimney Kits
Diameter:
6 Inch
