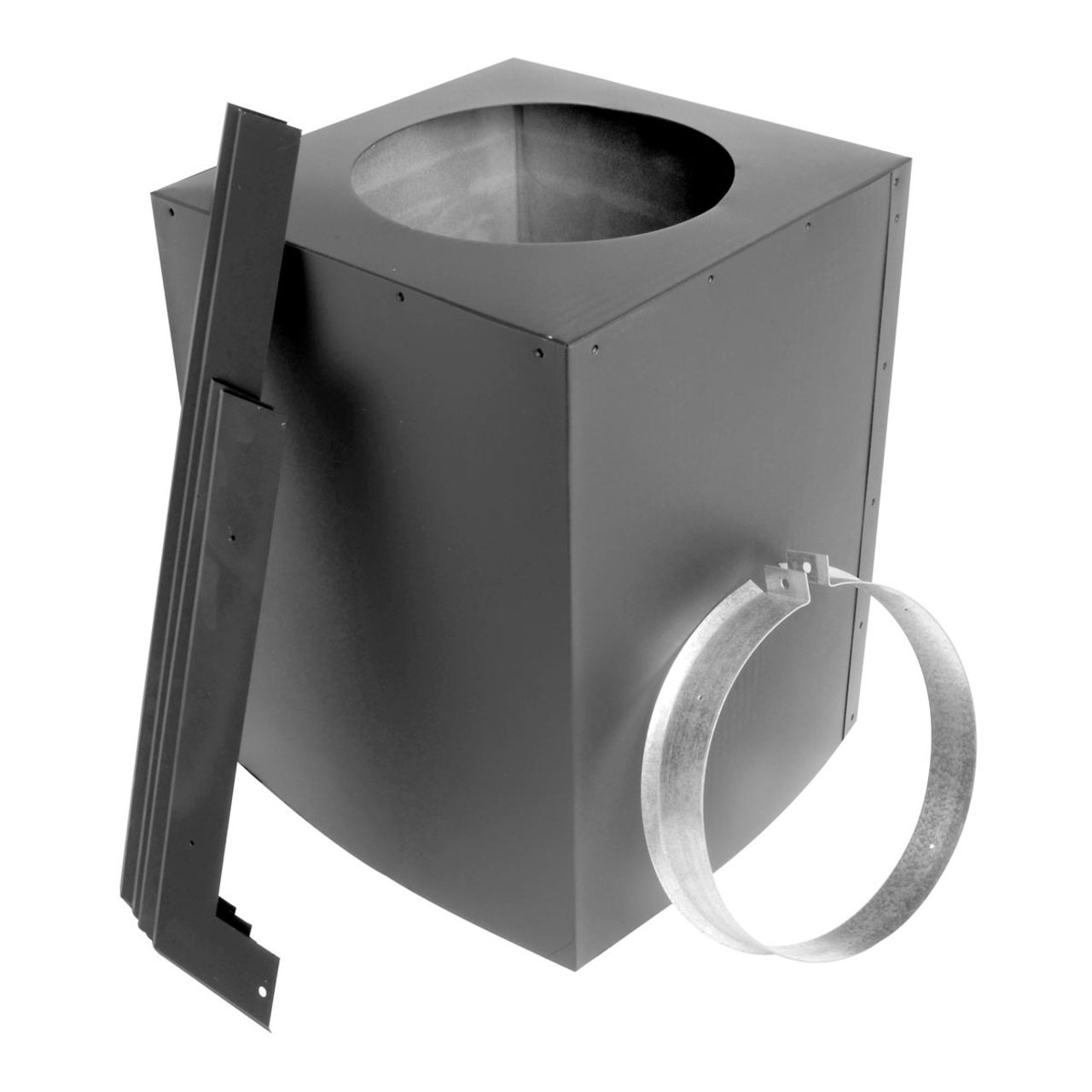

6" SuperPro Cathedral Ceiling 17" Support Box

Box in a 12", 13", or 14" square header for 6", 7", or 8" pipe. Lower the cathedral ceiling support box into place, level, and plumb. Secure with four 2" spiral nails or equivalent. Install support band (included, but not pictured) on chimney section at desired position to maintain proper clearance.
Position support band and tighten band bolt. Screw four sheet metal screws into outer chimney casing. Lower chimney section into support box so support band rests on the conical flange within the support box. . Supports 30' of chimney. .

See all 6" Selkirk SuperPro Components.

Additional Information:

SuperPro is safety tested and listed to applicable UL/ULC standards.  These include USA: UL 103-HT safety standards for chimneys serving solid fuel and liquid fuel appliances.  This chimney system has been designed for use on wood stoves, fireplaces, and residential furnaces in the U.S. market.

Allowable flue gas temperatures are as follows:

• Maximum continuous: 1000° F / 500° C
• Brief forced firing: 1400° F / 760° C
• Creosote burn out: 2100° F / 1150° C

  Installation Planning Guide

  Installation Instructions

Specifications:

• Diameter: 6"
• Construction materials: Stainless steel
• Clearances: 2" to combustibles
• Listings: Safety tested and listed to applicable UL/ULC standards USA: UL 103 HT

Box in a 12", 13", or 14" square header for 6", 7", or 8" pipe. Lower the cathedral ceiling support box into place, level, and plumb. Secure with four 2" spiral nails or equivalent. Install support band (included, but not pictured) on chimney section at desired position to maintain proper clearance. Position support band and tighten band bolt. Screw four sheet metal screws into outer chimney casing.

All Selkirk Corporation venting products are now backed with a Lifetime Limited Warranty. Please refer to the warranty included with the product for specific details or contact customer service for a copy.
