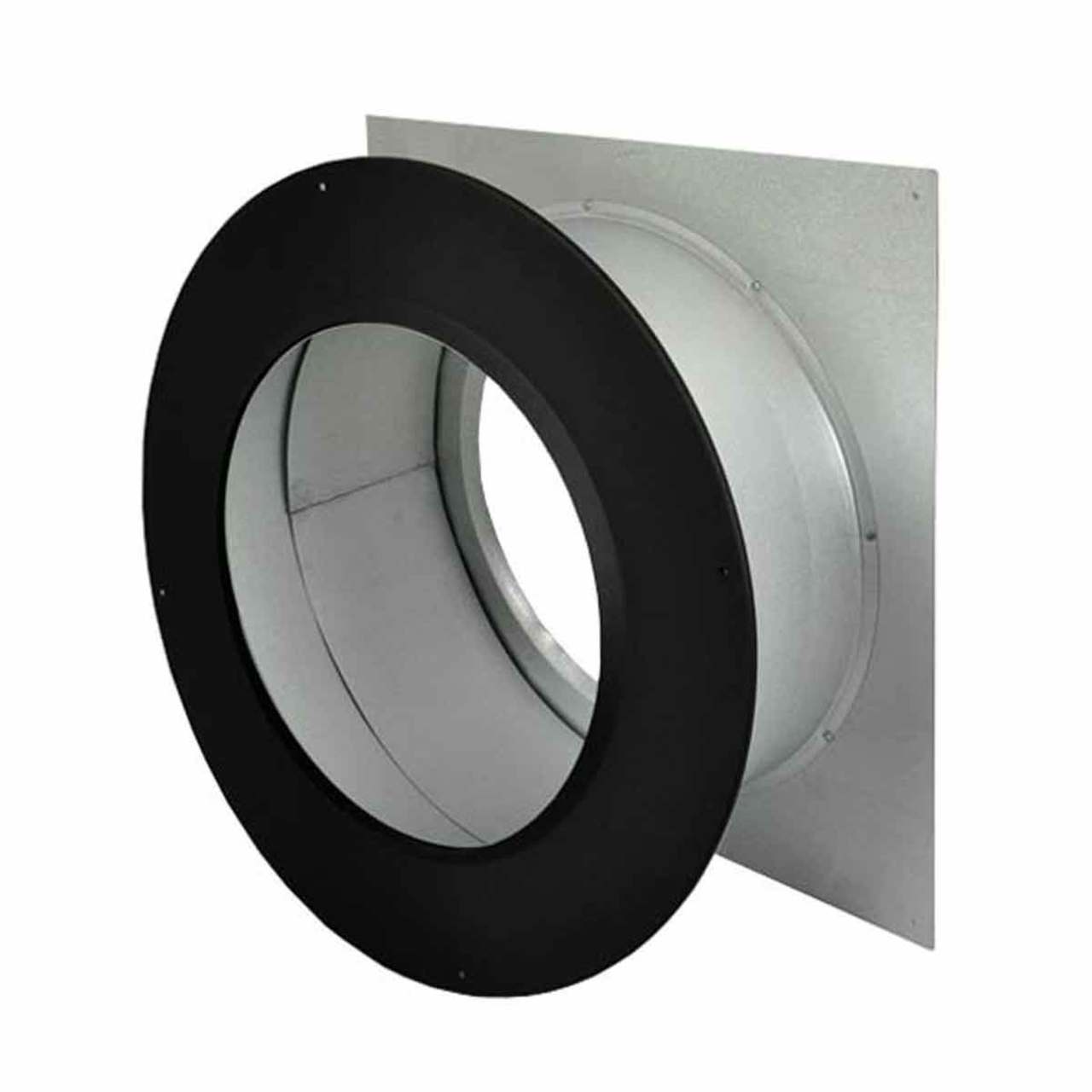

6'' SuperPro Wall Thimble

Details
6" Black Wall Thimble - For a side-wall installation, the Black Wall Thimble is used with a tee, a Galvanized Wall Support, and a length of chimney (the length goes through the thimble into the room). It adjusts horizontally to fit wall thicknesses of 4 1/2" to 8 1/2". Maintains 2" clearance.
See all 6" Selkirk SuperPro Components.
Additional Information:
SuperPro is safety tested and listed to applicable UL/ULC standards. These include USA: UL 103-HT safety standards for chimneys serving solid fuel and liquid fuel appliances. This chimney system has been designed for use on wood stoves, fireplaces, and residential furnaces in the U.S. market.
Allowable flue gas temperatures are as follows:
- Maximum continuous: 1000 Degrees F / 500 Degrees C
- Brief forced firing: 1400 Degrees F / 760 Degrees C
- Creosote burn out: 2100 Degrees F / 1150 Degrees C
Installation Planning Guide
Installation Instructions

Specifications:
- Dimensions: 16'' x 16'' Face plate with a 8 1/8'' dia. opening
- Construction materials: Stainless steel
- Clearances: 2" to combustibles
- Listings: Safety tested and listed to applicable UL/ULC standards USA: UL 103 HT

Clearance	Non-Clearance
Country Of Origin	Canada
Pipe Wall	Double Wall
Pipe Piece	Thimble
Type	Class A Pipe
Diameter	6 Inch
Product Type	Chimney Pipe
Lowest Bulk Price	129.12
Brand	SuperPro
