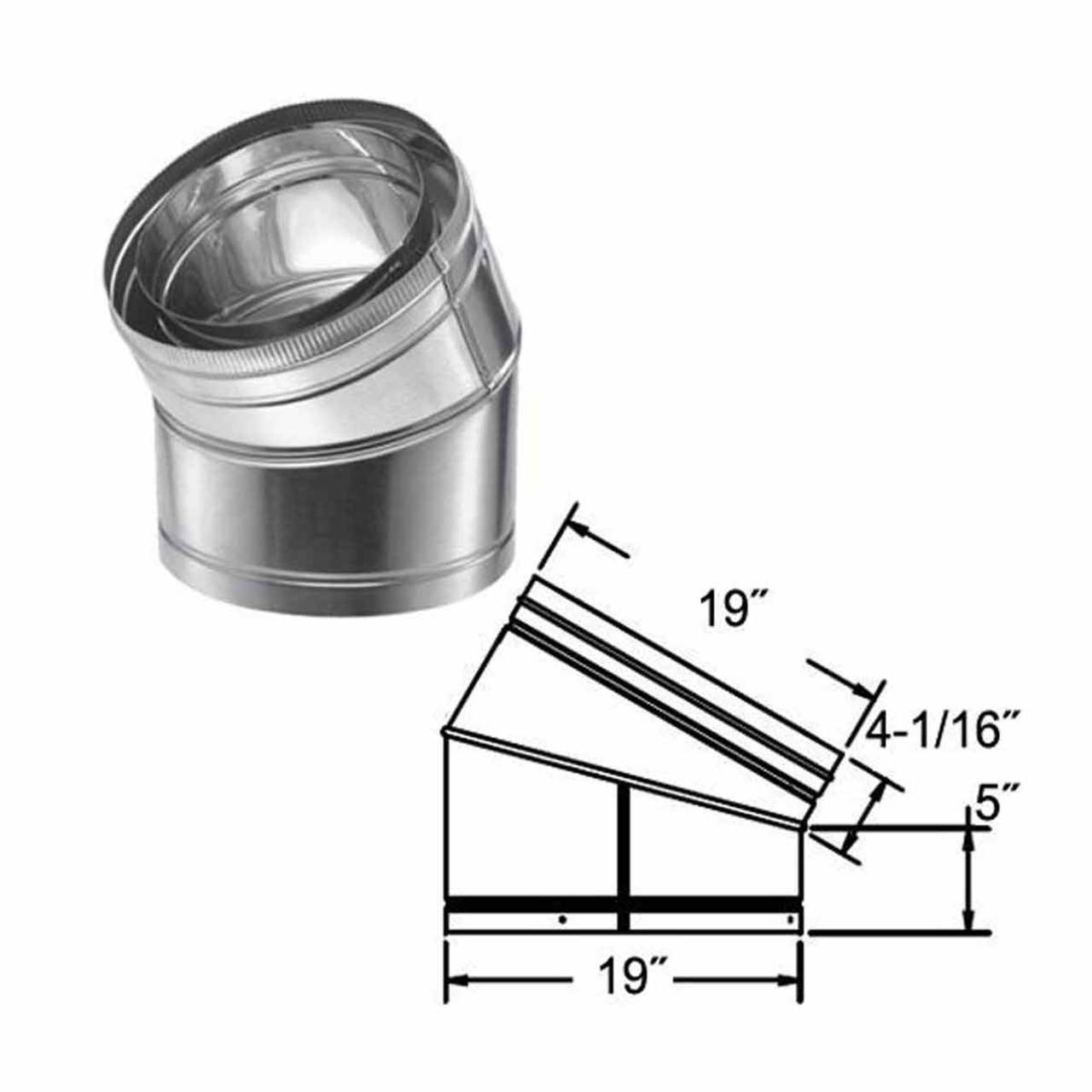

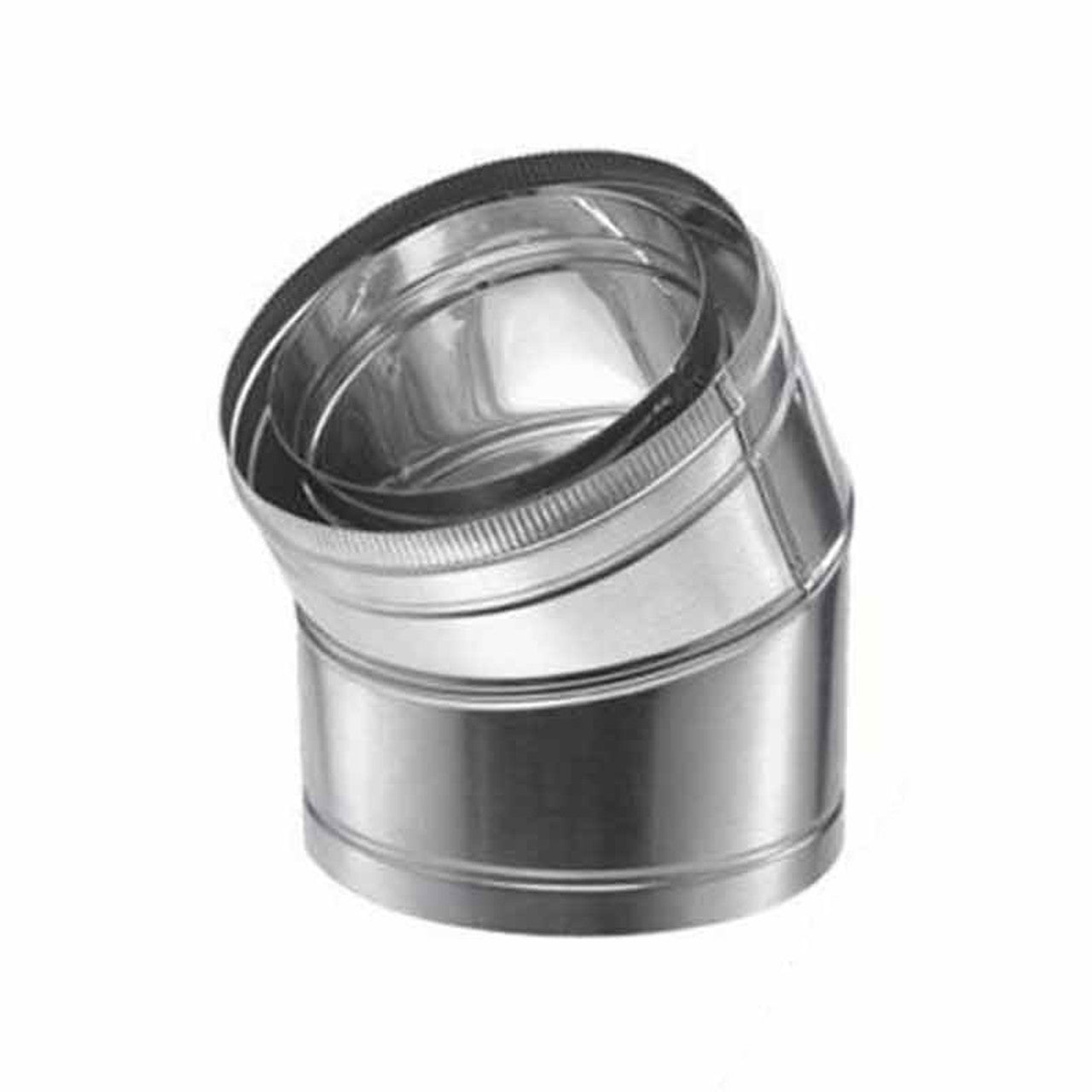

16" DuraChimney II 30 Degree Elbow - 16DCA-E30

Use elbows to offset obstructions such as rafters, ridgepoles, or joists. 10"-16" DuraChimney II may have one pair of elbows, if needed. Offsets greater than 30° are not allowed. Elbows are not adjustable

See all 16" DuraChimney II Components.

When using elbows to offset and obstruction you will need to use two elbows to bring the chimney vertical again. To ensure adequate support it is required to use at least one elbow strap.

Additional Information:

The DuraChimney II system is a double-wall air-cooled chimney system for masonry fireplaces which burn wood, oil, coal, or gas. DuraChimney II is an exceptional alternative to pre-fabricated masonry chimneys. DuraChimney II is a unitized, lightweight design which eliminates the need for field assembly of pipe sections, allowing for faster installation.

DuraChimney II is designed to stay cool on the outside, to provide a hot draft on the inside, and to provide a fire-safe design that protects both the chimney and the building. The double-wall design allows the chimney to expand both radially and lengthwise under high temperatures.

  DuraChimney II Installation Instructions

WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
