6'' DuraPlus Thru-the-Wall Kit - DP630-KIT

The 6" DuraPlus Thru-The-Wall Kit is mobile home and manufactured home approved and specifically designed with the do-it-yourselfer in mind.

Materials and Construction

• .016" 430 stainless steel outer wall or .018" galvanized steel outer wall
• .018" aluminized steel intermediate liner
• .016" 430 stainless steel inner liner
• Insulated layers of ceramic blanket plus ventilated air space
• Locks tightly with a precision twist-lock connection

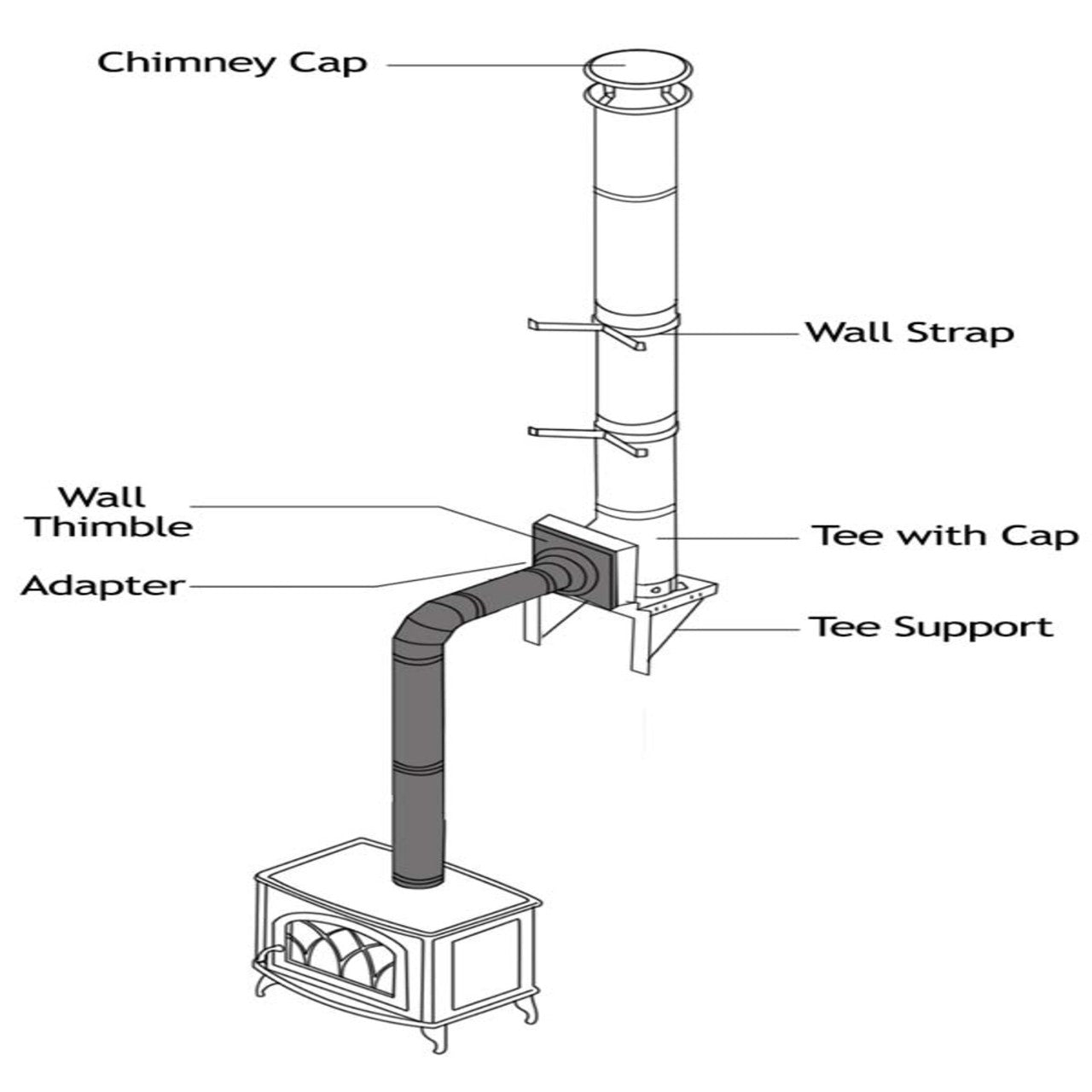

The 6" DuraPlus Thru-the-Wall Kit contains all the components needed to install a 6" chimney (excluding black stove pipe and DuraPlus chimney sections) through the wall and up the side of your home.

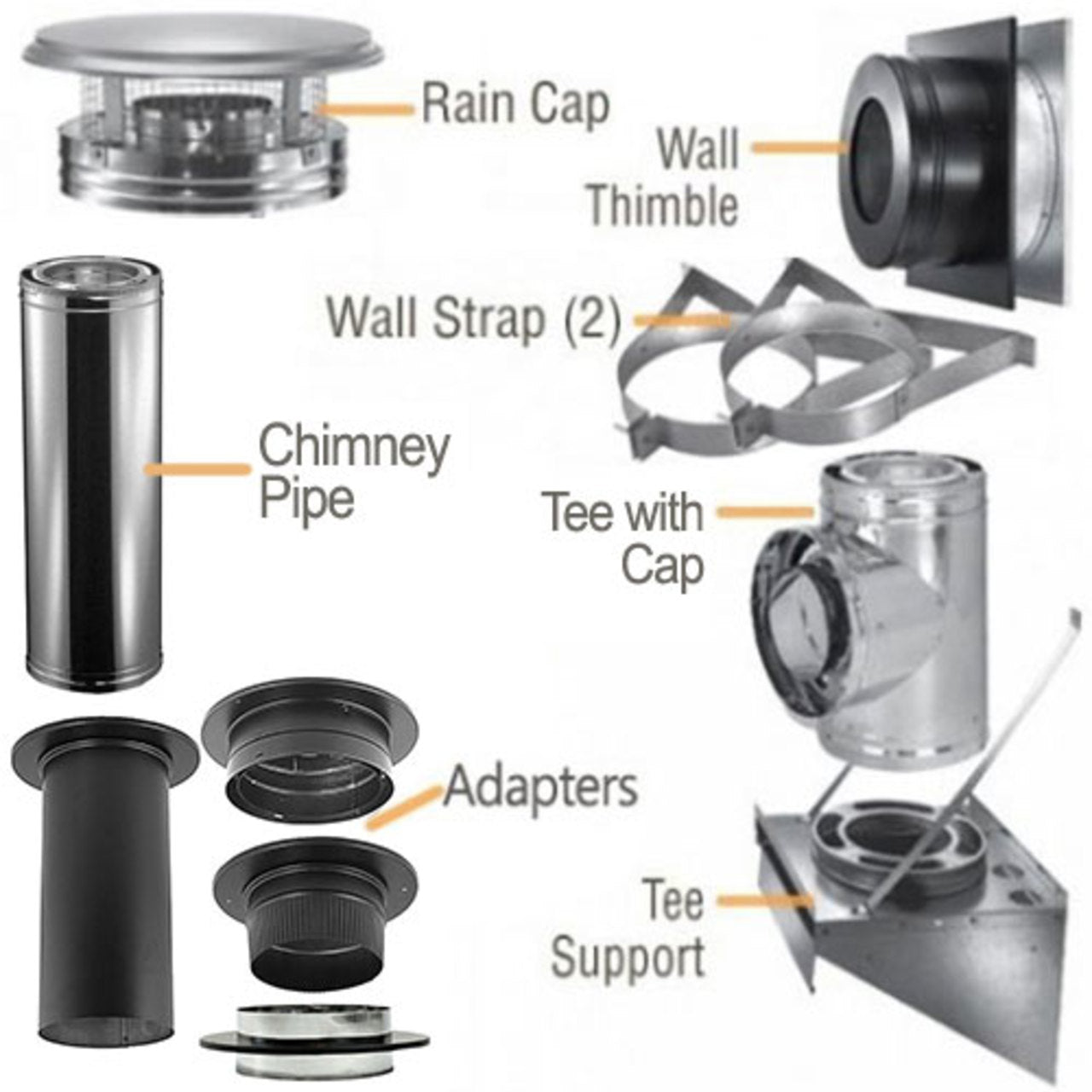

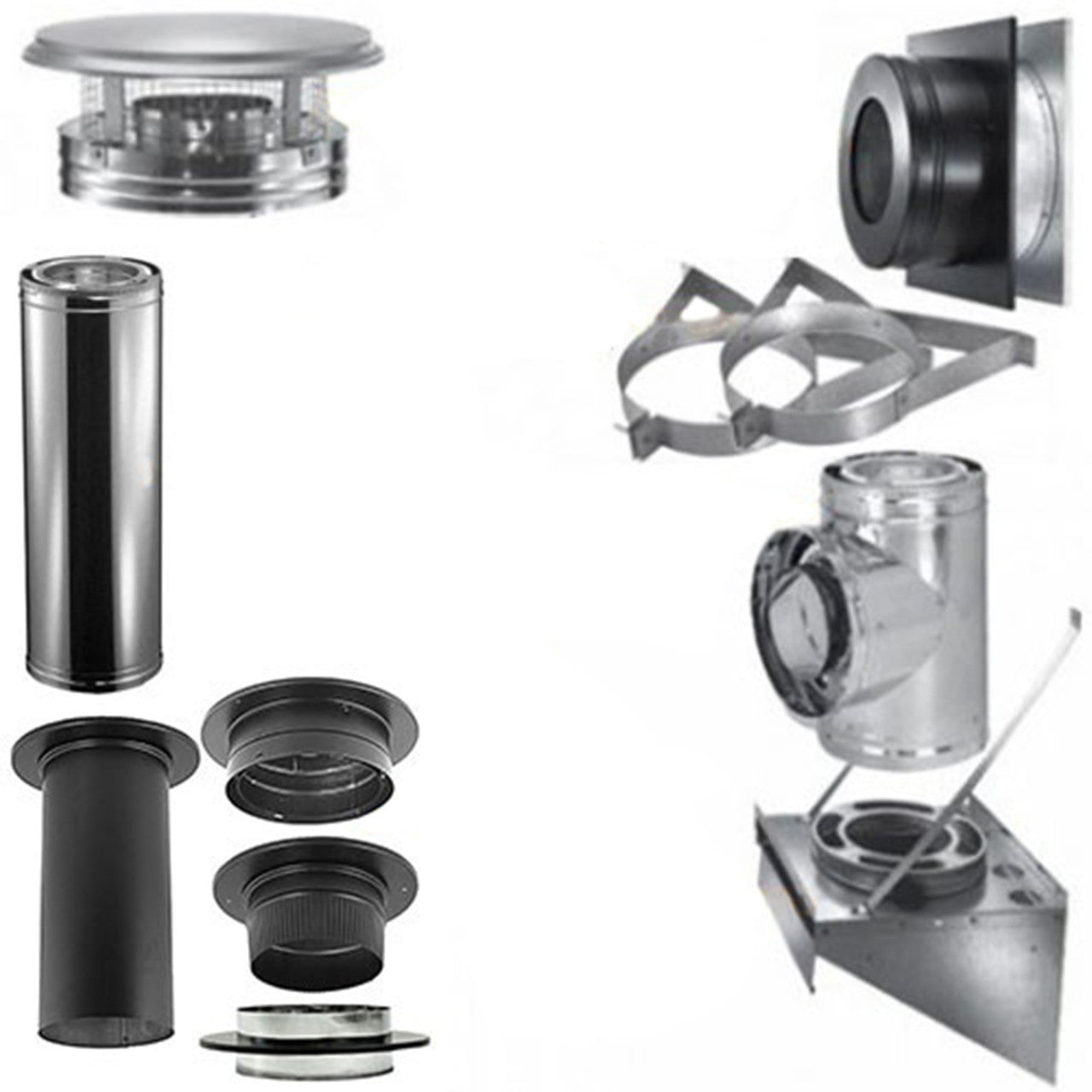

This kit includes the following: from the cap down

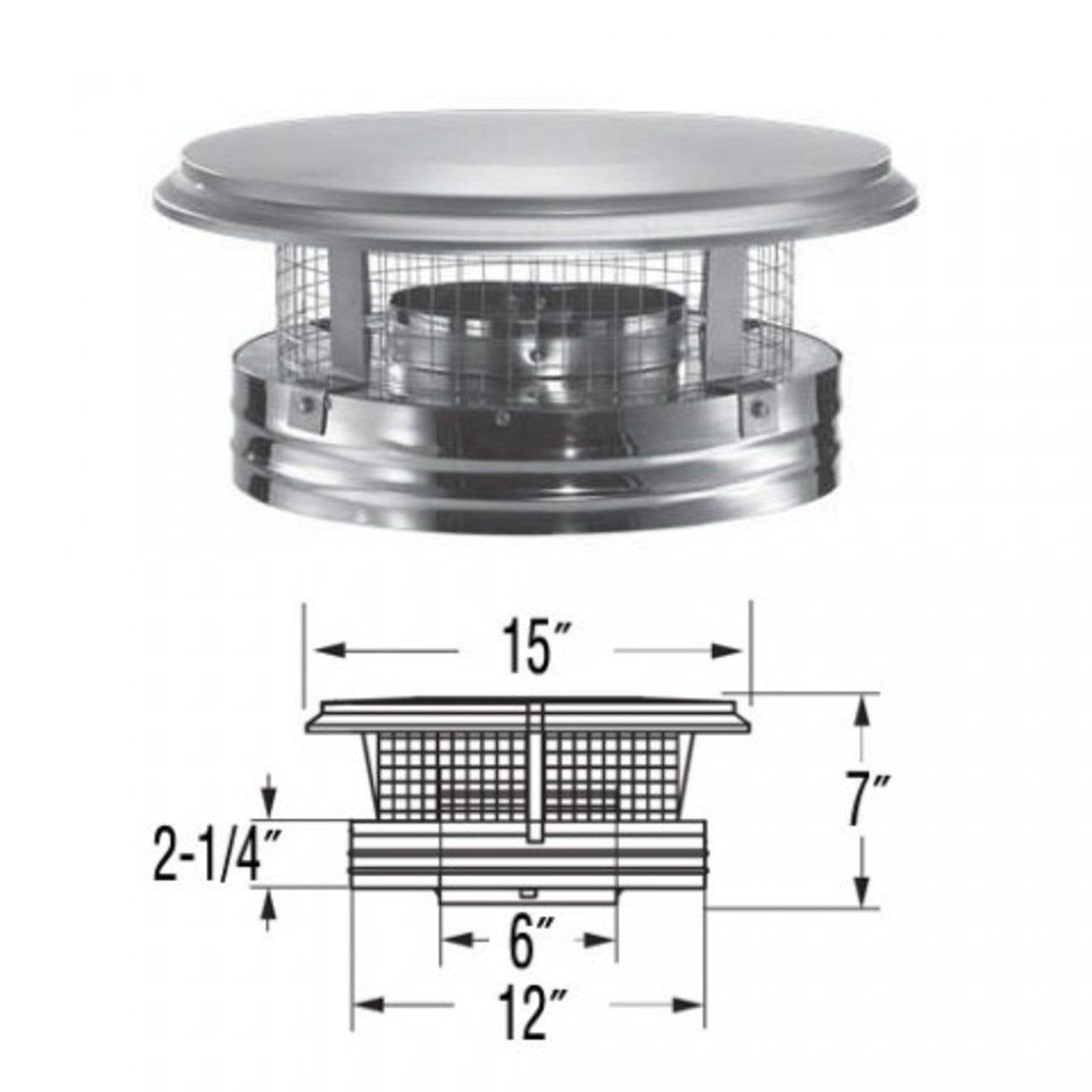

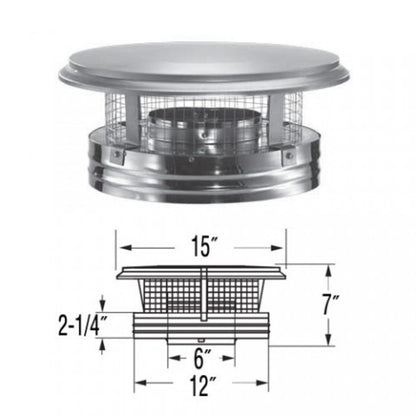

6" DuraPlus Rain Cap - Required where chimney pipe terminates above the roof line. Removable screws allow for cleaning of the chimney and spark arrestor screen. Includes spark arrestor screen.

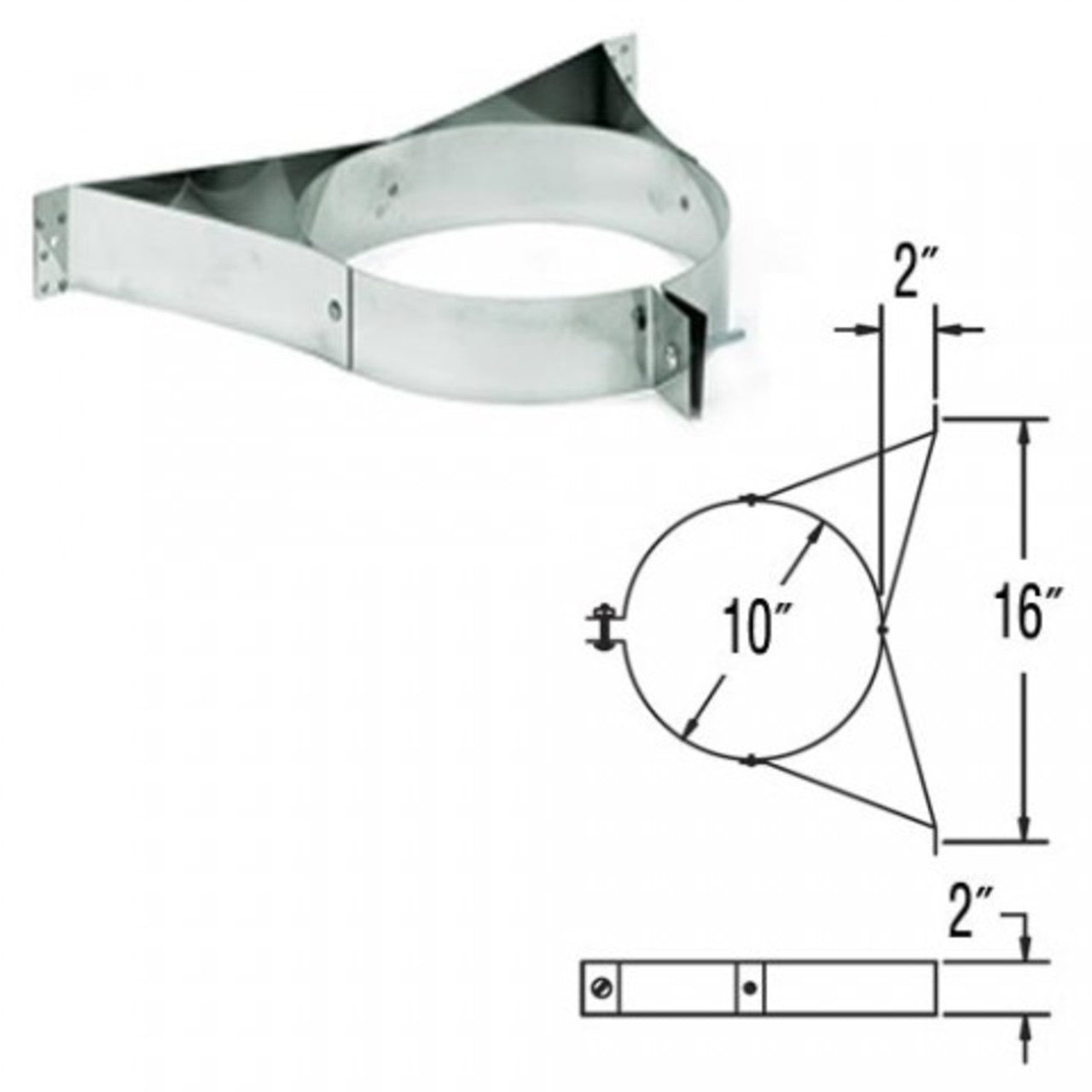

6" DuraPlus Galvanized Wall Straps - Use this wall strap when running DuraPlus Chimney through an outside wall. It will help keep the chimney straight and secure. Made of galvanized steel and then painted black.

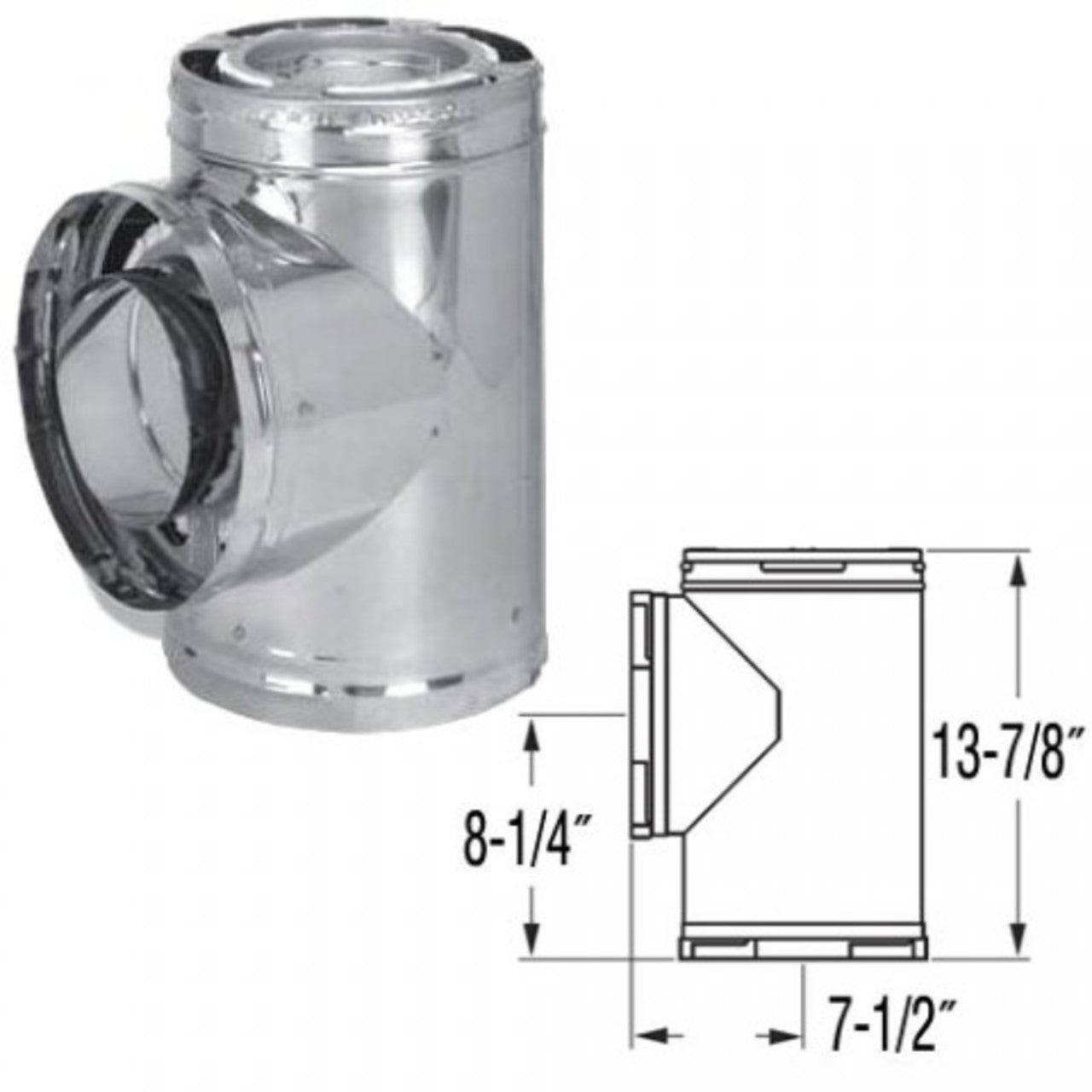

6" DuraPlus Galvanized Tee with Cap - Use for through the wall chimney installations. The tee clean-out cap is removable for easy chimney cleaning or inspection. Wall straps, a wall thimble , and a tee support must be installed with the tee as directed. Tees have a 1" insulation blanket. Ventilation air for chimney must be drawn from outdoors.

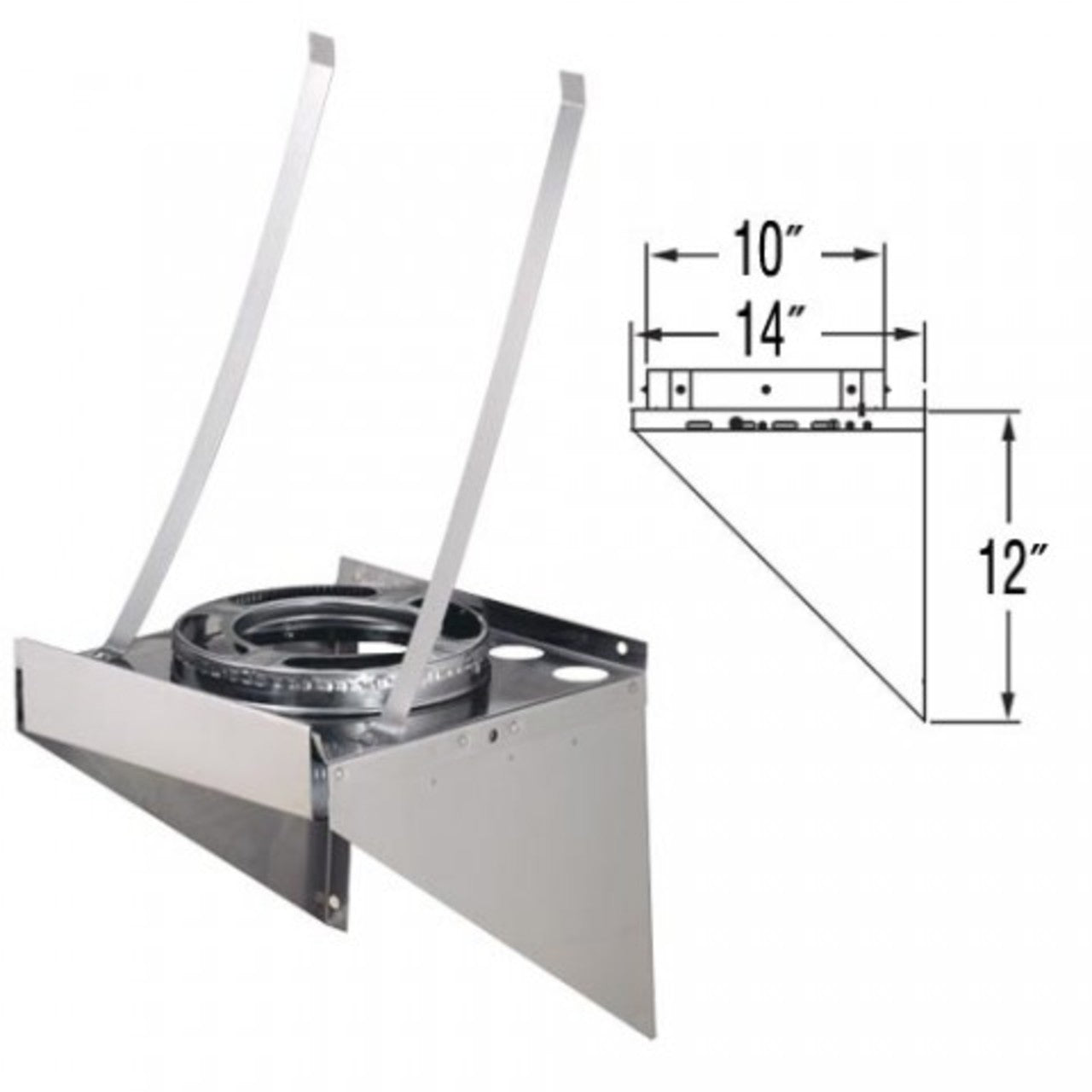

6" DuraPlus Tee Support Bracket - A tee support is used with a side-wall DuraPlus Chimney installation. The construction of the tee support will safely support up to 35' of DuraPlus Chimney. A Tee mounts to the top of the support. The tee support should always be used in conjunction with a DuraPlus Wall Thimble.

6" DuraPlus 6" x 9" Chimney Pipe - Use when passing through the wall thimble when you are passing DuraPlus Chimney through an outside wall. It must be installed with the wall thimble. This length connects to the Tee on the outside of the building. Then one of three adaptors are used to connect the appliance connector pipe. Use a Snap-Lock Adaptor, or a DuraBlack Slip Connector to transition to single-wall stovepipe or use a Close Clearance Adaptor to transition to DVL Double-Wall Stovepipe.

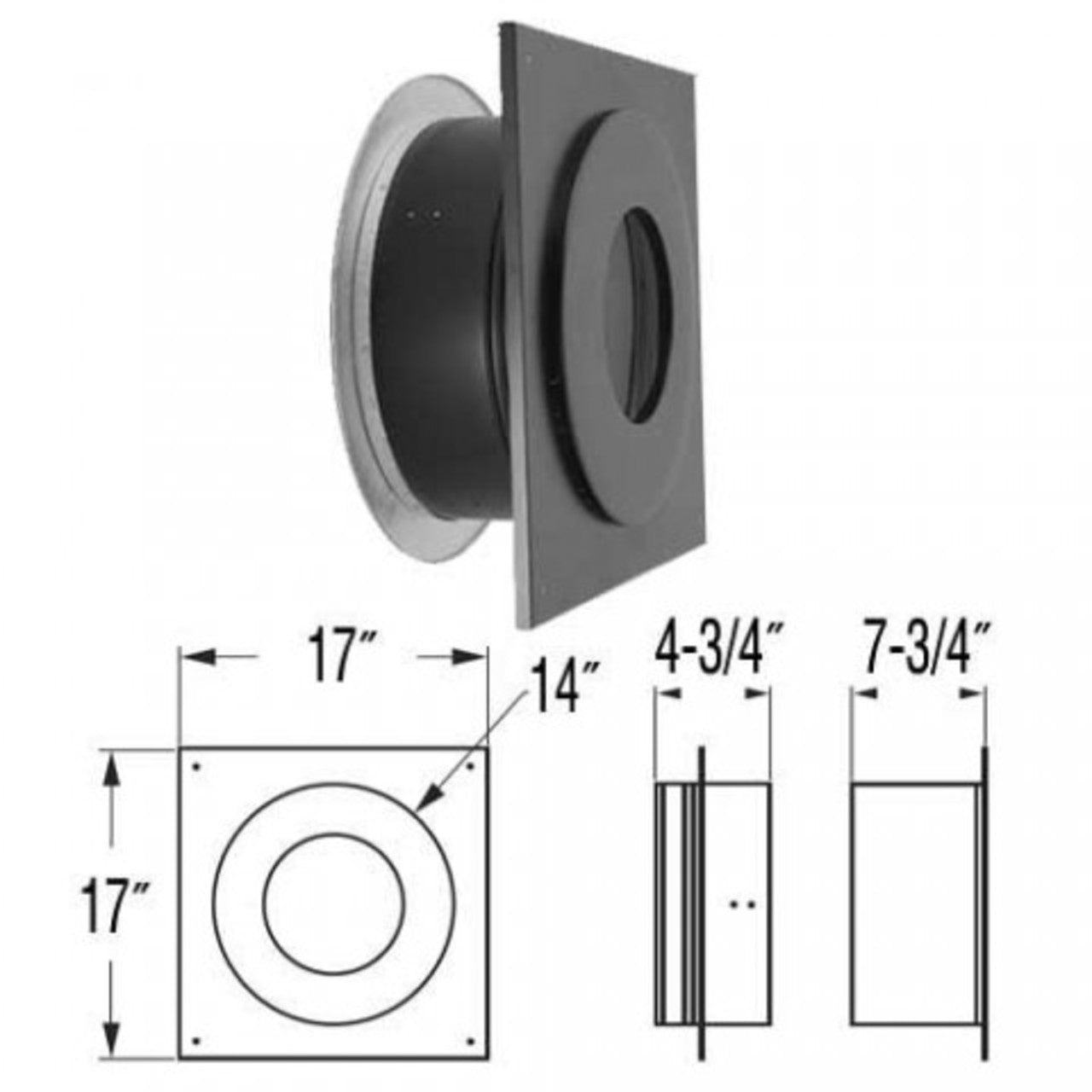

6" DuraPlus Wall Thimble - Use this wall thimble when passing DuraPlus Chimney through an outside wall. It must be installed with a length of chimney passing through it. This length connects to the Tee on the outside of the building. Then one of three adaptors are used to connect the appliance connector pipe. Use a Snap-Lock Adaptor, or a DuraBlack Slip Connector to transition to single-wall stovepipe or use a Close Clearance Adaptor to transition to DVL Double-Wall Stovepipe. Wall thimble requires a 14 1/2" x 14 1/2" frame opening. Wall thimble includes trim.

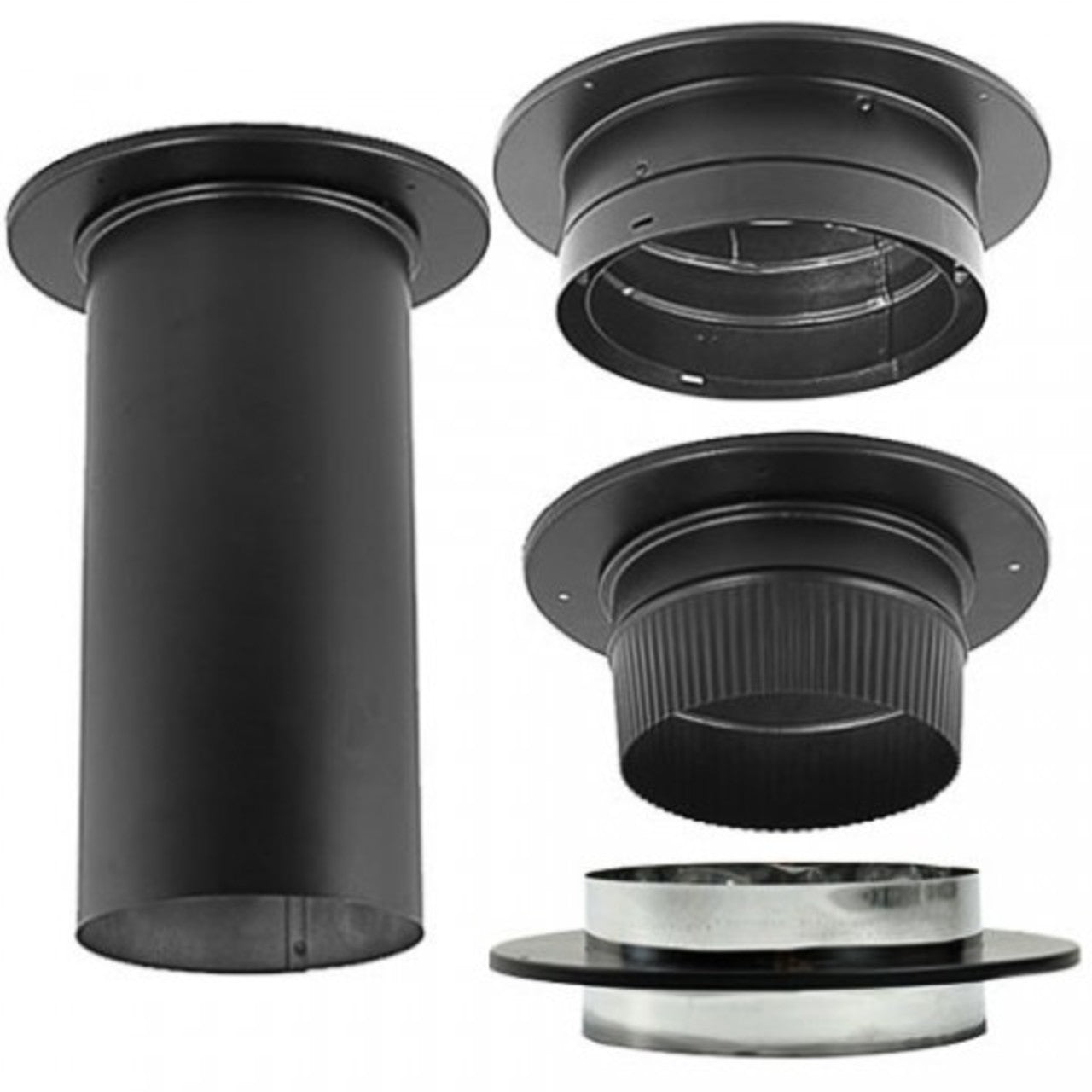

6" DuraPlus Adapters - Required to connect the stove pipe to the chimney pipe and there are several options to choose from depending on your requirements.

•

  Slip Connector - Item Number 1671 - Use to connect DuraBlack single wall stove pipe to the ceiling support box. Use the slip connector if you do not have any other adjustable stove pipe length between your stove and support box. This adapter will provide a 3" to 13" slip fitting without having to cut pipe for a perfect fit. Only connects to rigid DuraBlack stove pipe, and cannot be used with telescoping pipe lengths.

•

  DuraBlack Chimney Adapter - Item Number 8678 - This adapter is recommended to connect DuraBlack single-wall stove pipe to DuraPlus or DuraTech chimney pipe if you do not require adjustability in your stove pipe height. You can also use this adapter to connect DVL double-wall stove pipe to DuraPlus or DuraTech chimney.

•

  Snap Lock Adapter - Item Number 6691 - Snaps into your ceiling support boxor finishing collar and extends down to fit into the stovepipe. Provides a drip-free connection to DuraTech, DuraPlus, DuraPlus HTC chimney pipe or DuraLiner chimney liner.

•

  DVL Adapter - Item Number 8675 - Use to connect from double-wall DVL to DuraTech, DuraPlus, DuraPlus HTC, and DuraLiner for a through-the-wall or ceiling support installation. Required for proper connection. Provides a strong mechanical connection. Painted black.
