Blower fan noisy
"I got the 7tube with blower fan and fan speed regulator. The regulator does not seem to work and is on high all the time."
Description
Description
Custom Size Heaters cannot be returned nor exchanged. Please verify your measurements before ordering. This unit is a custom size.

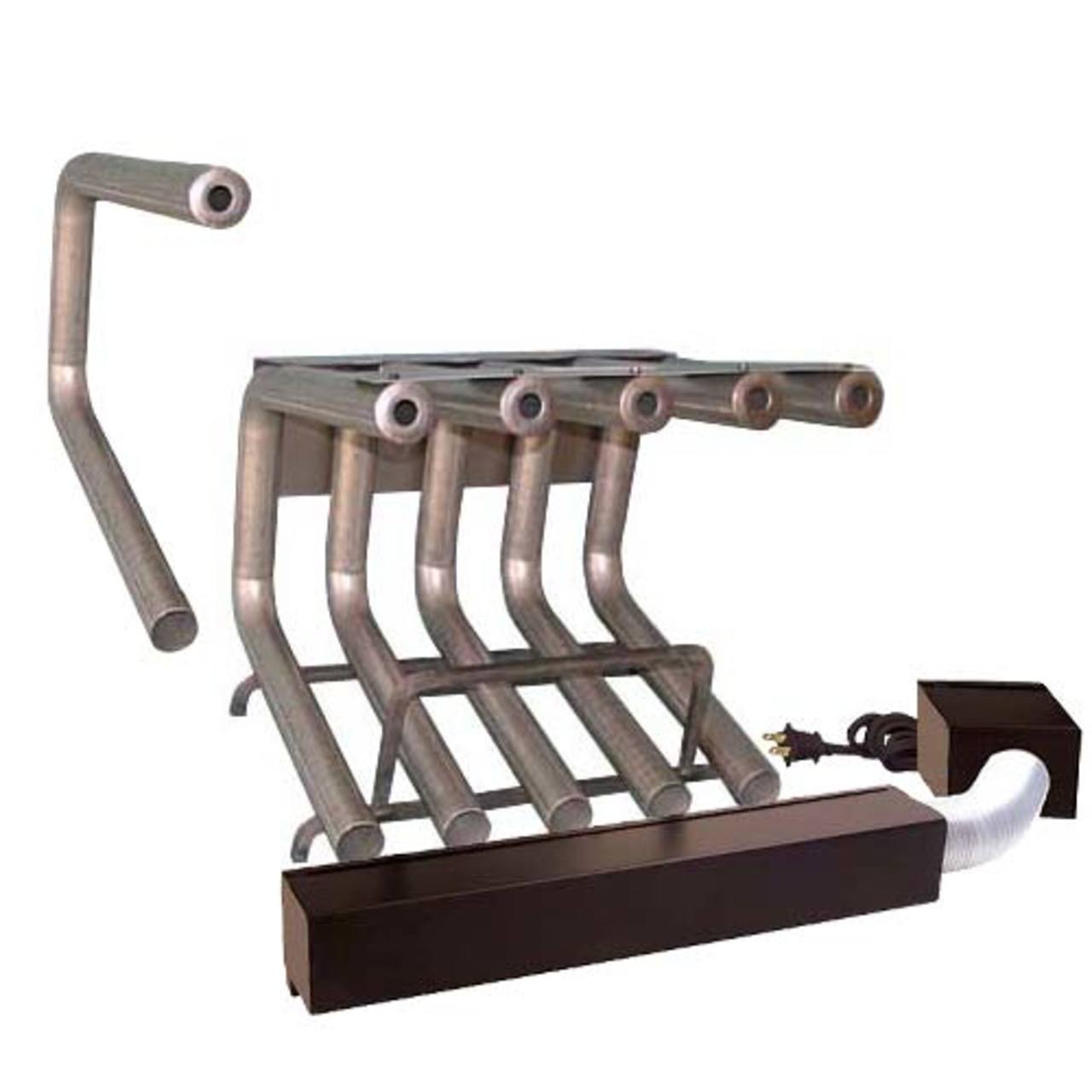

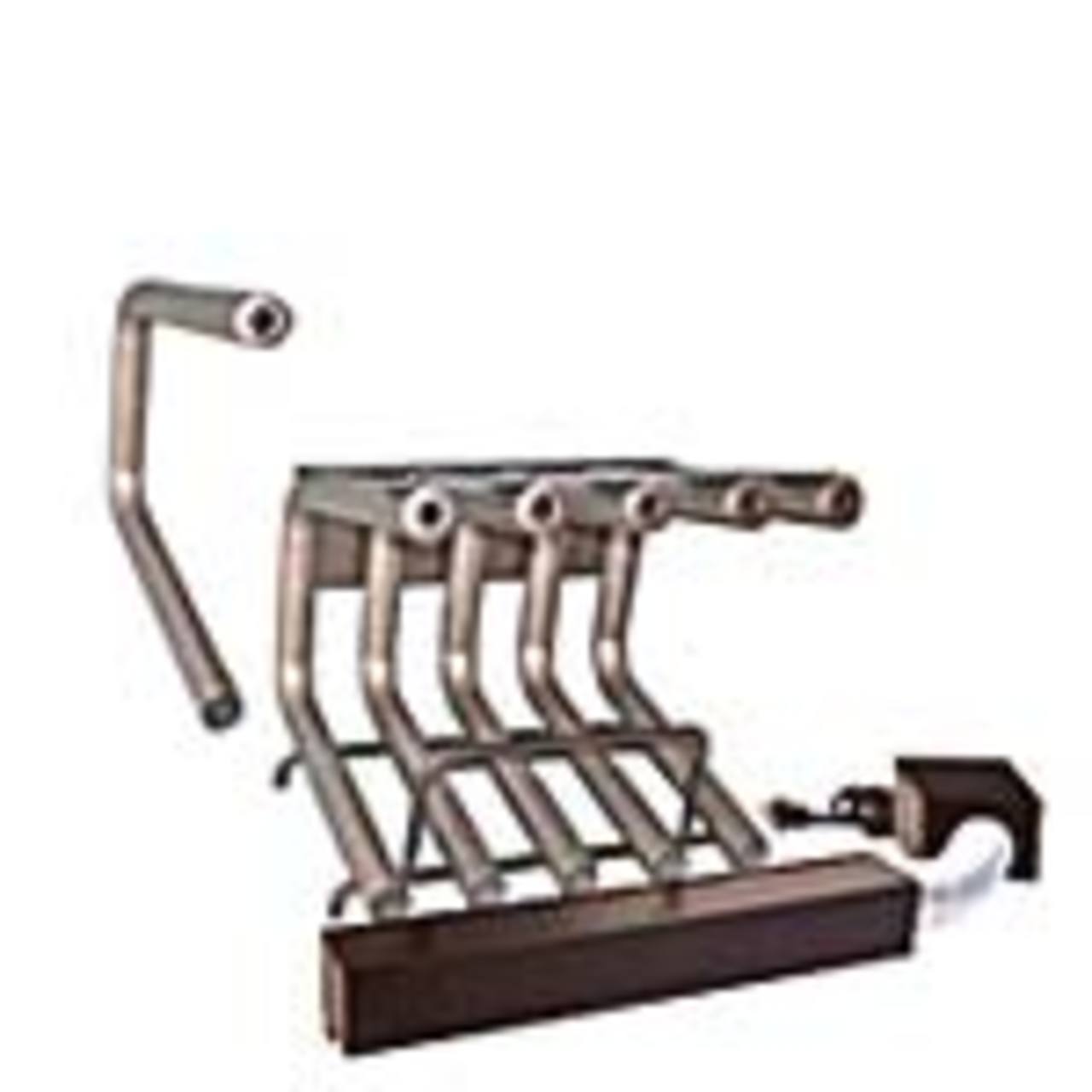

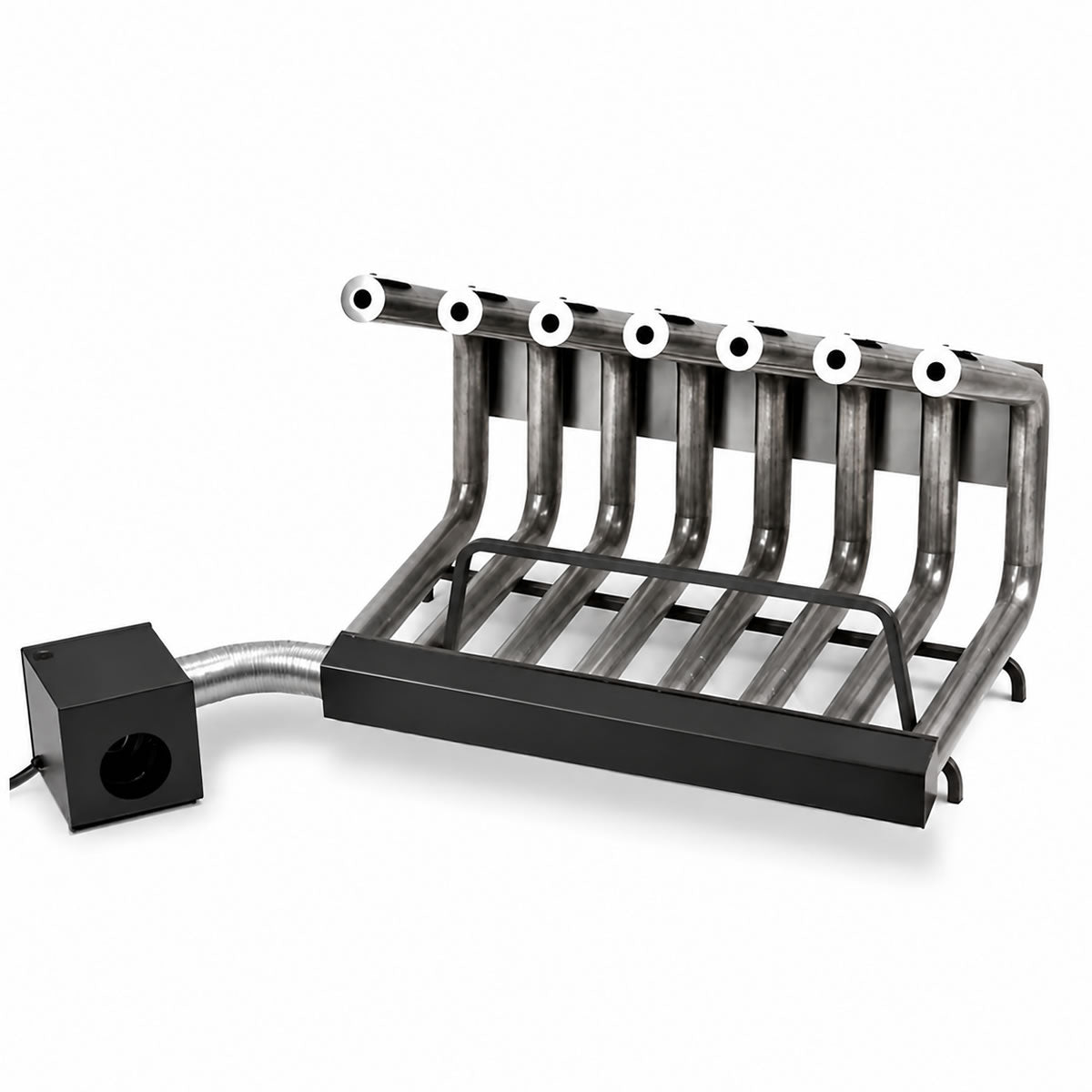

Fireplace Heater was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500'F and will produce up to 50,000+ BTUs of heat, enough to heat a large room or two. It fits into most fireplaces and has a limited one-year warranty. The FHK Heater is easy to install; simply assemble the blower on the tubes, seal it with the supplied silicone sealer and set into your fireplace.
The FHK Hearth Heater features heavy heavy-gauge aluminized steel tubes for long life. Its unique design still allows it to work during power outages by converting heat naturally through the tubing and into your home. The blower is connected to the grate by means of a flexible tube, which allows the blower to be positioned in front of the fireplace opening. Measures: 20-1/2" High, 20" Deep, 33" Front Width, and 25" Back Width.
Click here for a brochure. For smaller fireplaces see theFHZC Fireplace Heater.
Product Note: This fireplace heater is a custom size and will take approx 2 to 4 weeks to receive.
- Low Cost
- Simple Installation
- Works during a power outage
- Fits most fireplaces (See additional information tab for sizing)
- Heavy gauge aluminized steel tubing for long life
- Blower Box can mount on left or right side by flipping the manifold
- Two 2 Speed blowers deliver up to 84,000 BTU's of heat for a 500% heat output increase!
- Can be used with a glass fireplace door but additional flexible hose may be needed and must be removed to close the doors when not in use.
Additional Information:
Number of Tubes |
Front Width | Rear width | Front Height | Rear Height |
Depth
| BTU per Hour (max) |
|---|---|---|---|---|---|---|
5 Tube (standard size) | 25" | 17" |
20 1/2" |
13 1/2" | 18" | 60,000 |
6 Tubes | 29" | 21" |
20 1/2" | 13 1/2" | 18" | 72,000 |
7 Tubes | 33" | 25" |
20 1/2" | 13 1/2" | 18" | 84,000 |
8 Tubes | 37" | 29" |
20 1/2" | 13 1/2" | 18" | 96,000 |
9 Tubes | 41" | 33" |
20 1/2" | 13 1/2" | 18" | 108,000 |
10 Tubes | 45" | 37" |
20 1/2" | 13 1/2" | 18" | 120,000 |
Custom Size Heaters cannot be returned nor exchanged. Please verify your measurements before ordering. This unit is a custom size.
- 2 speed blower
- 160 CFM Fan on blower
- Delivers up to 84,000 BTU's of heat
- Diameter of tubes 1-3/4"
- Heat Pipes are made of .063 heavy gauge aluminized steel which inhibits burn thru and rust.
- Flexible blower connector is adjustable from 8" to 18" and can be extended if necessary by ordering an additional flexible tube.
- Size: 20-1/2" High, 20" Deep, 33" Front Width, and 25" Back Width.
- See Additional information tab for sizing
