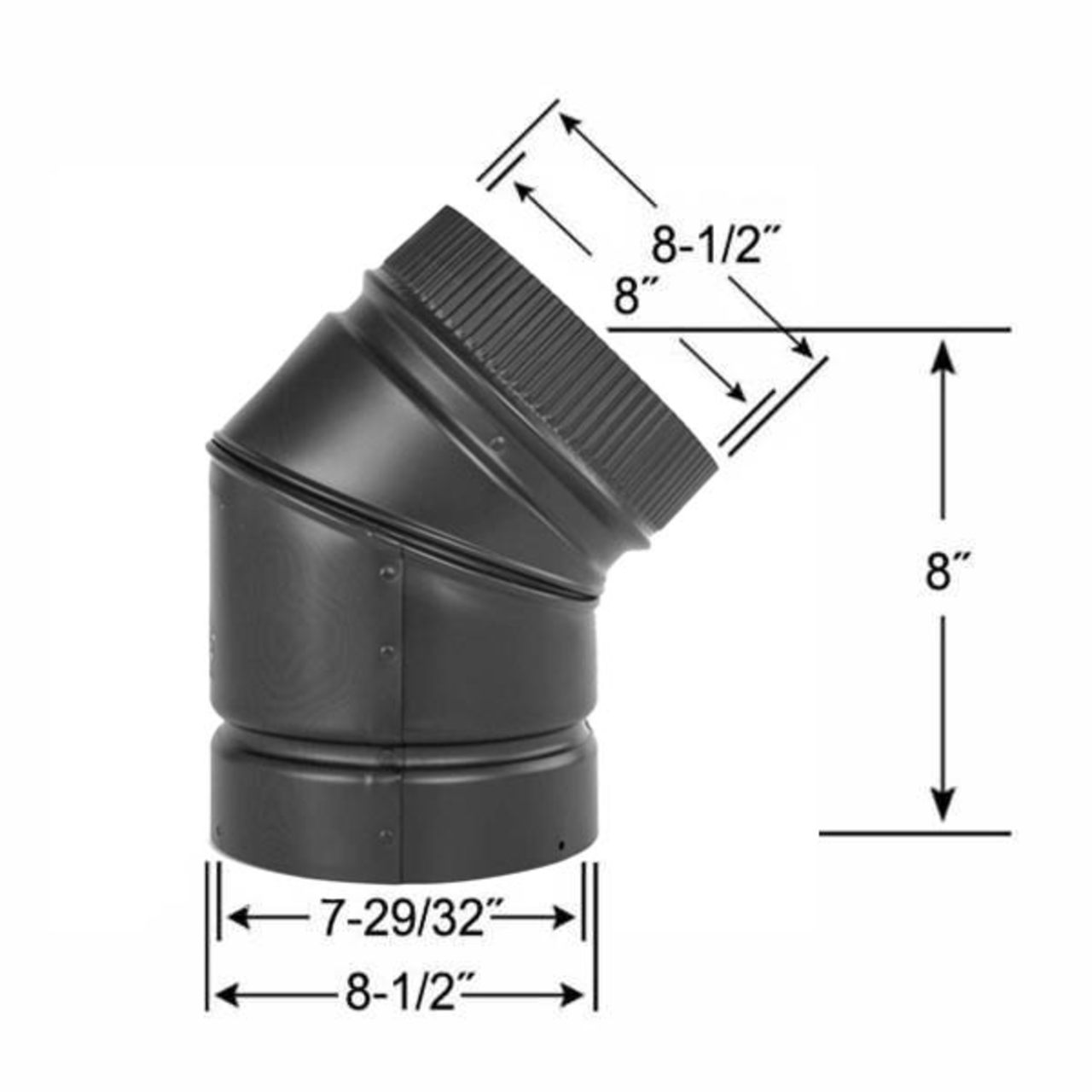

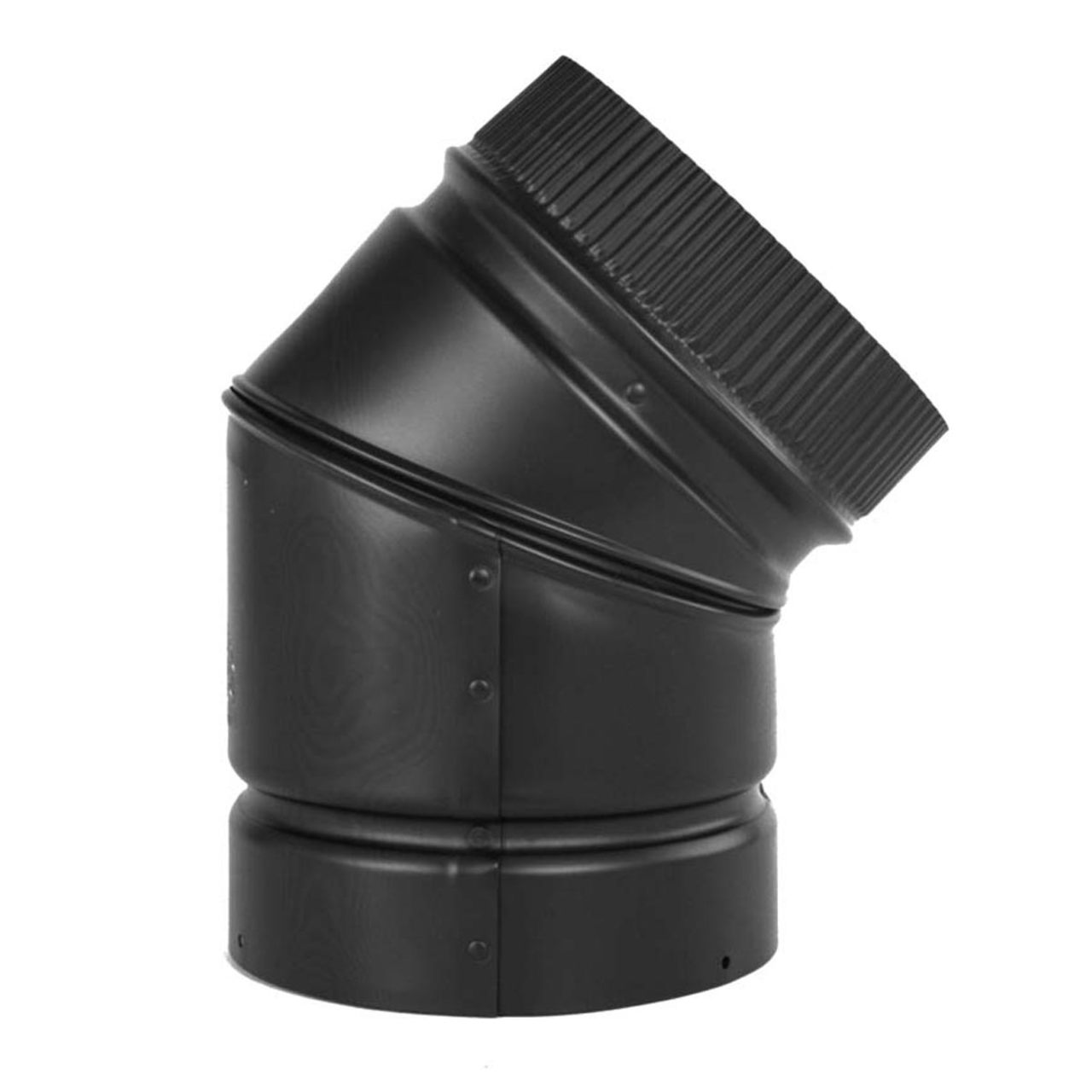

8" DSP Double Wall 45 Degree Black Elbow - DSP-8E4

Our 45 Degree Elbow is used to offset double wall stove pipe toward insulated chimney. It's constructed with a 26 gauge steel outer wall and a corrosion resistant, 400 stainless steel inner liner. The double wall construction allows for less clearance to combustible materials as well as a 1/4" air space between the inner and outer pipes to provide superior insulating value to accommodate higher flue gas temperatures. This in turn, creates an outer shell that remains cool to the touch. The 45 Degree Elbow is coated with a scratch resistant, black enamel finish. It features a non-positional connection system to add flexibility to the elbow allowing a full 360 degree rotation.

• Increased efficiency
• Less creosote build up
• Reduced smoking of the stove at start up
• Less chance of moisture or soot built up within the vent

See all 8" DSP Double Wall Chimney Pipe Components.

Additional Information:

Model DSP Double Wall Stove Pipe is a connector pipe that links your wood stove to an insulated chimney. The connector is an important component of a woodburning system because its correct size, arrangement and installation improve the performance and safety of the heating system. Listed and tested to ULC S641 and UL 103 standards. Model DSP has an attractive outer black surface made of durable aluminized steel to withstand temperatures up to 1200 degrees F in continuous operation. Double Wall construction with a 1/4" air space between inner and outer pipes provides a superior insulating value than single wall pipe. Double Wall Stove Pipe not only keeps the flue temperatures higher, it also keeps the outer pipe temperatures cooler, allowiing for reduced clearances to combustibles.
