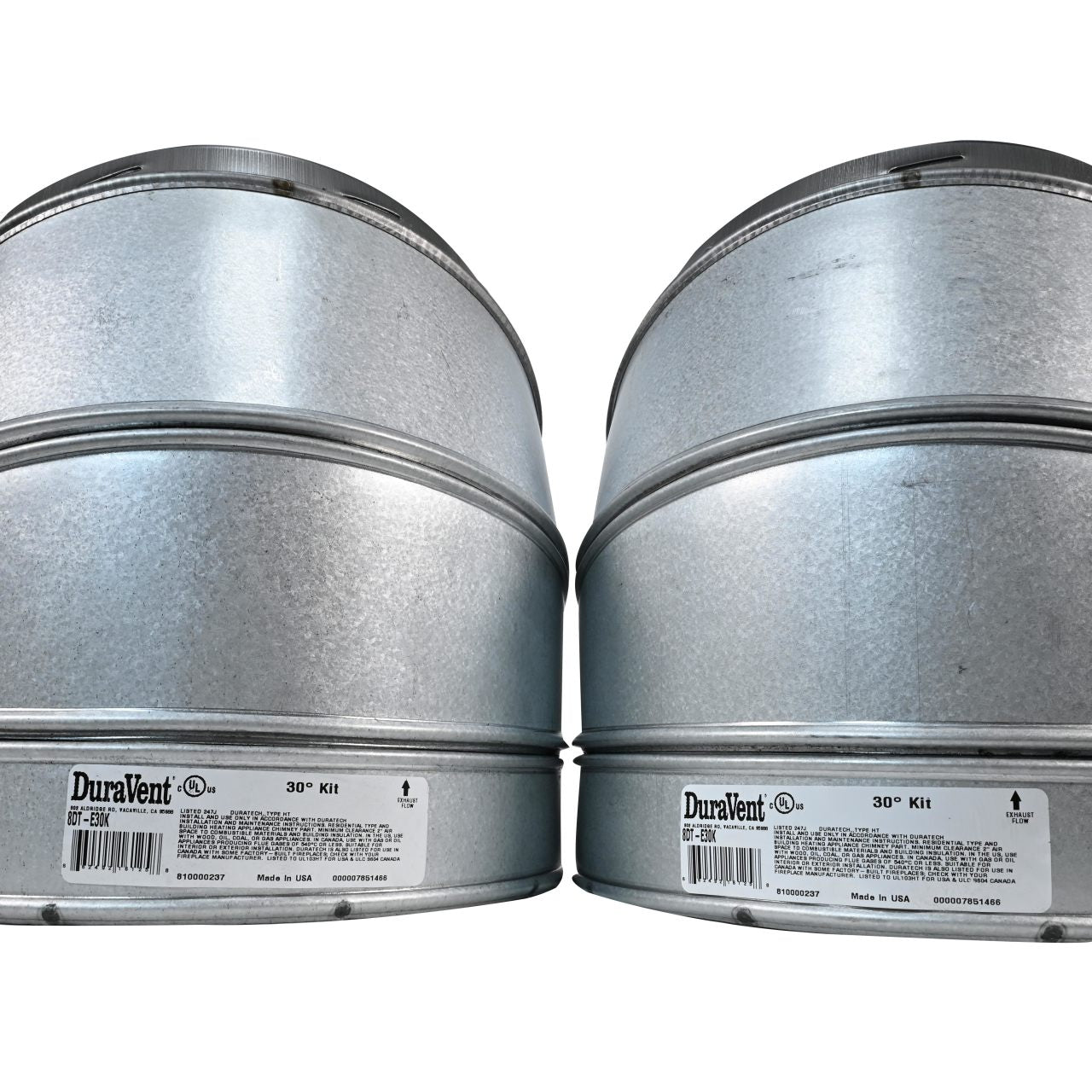

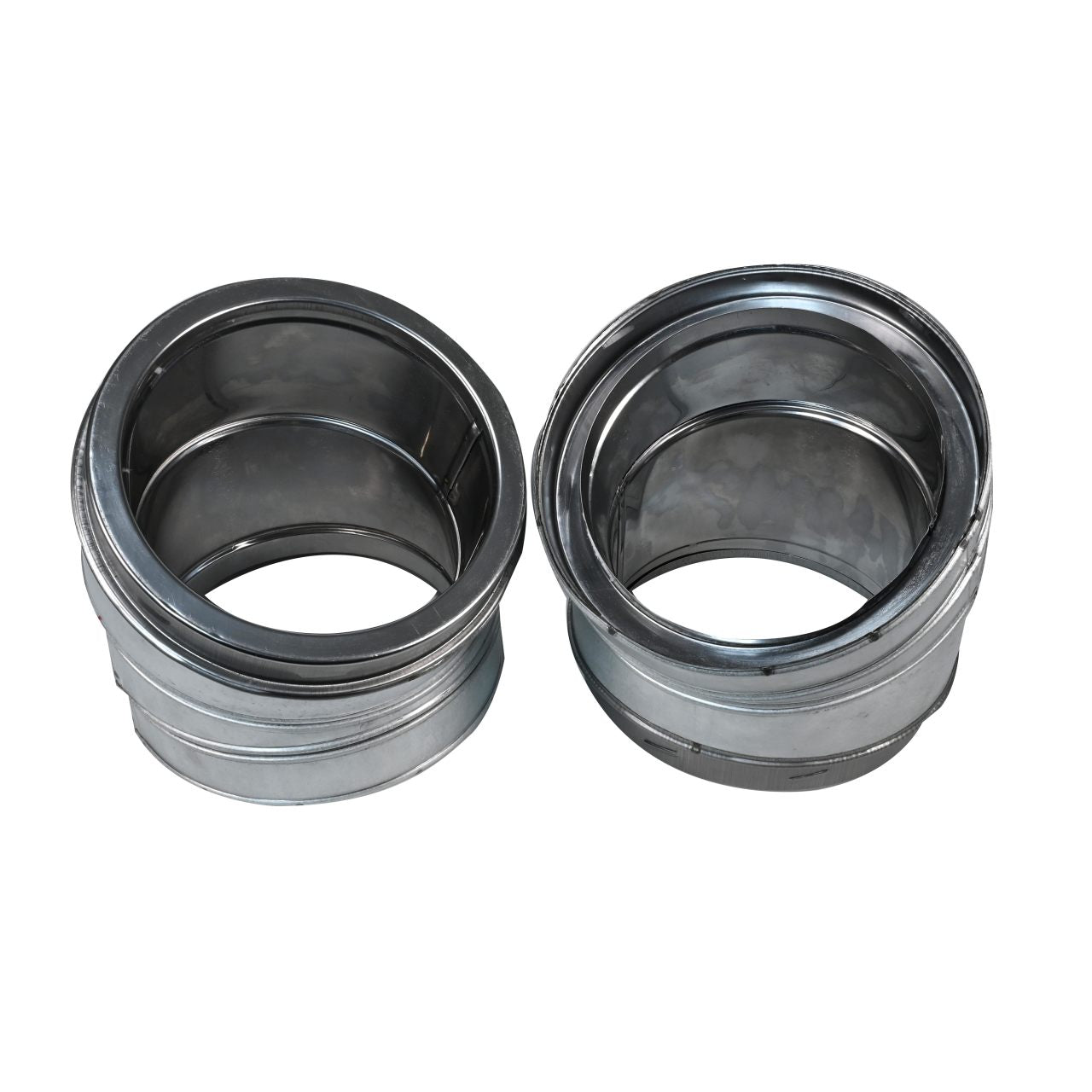

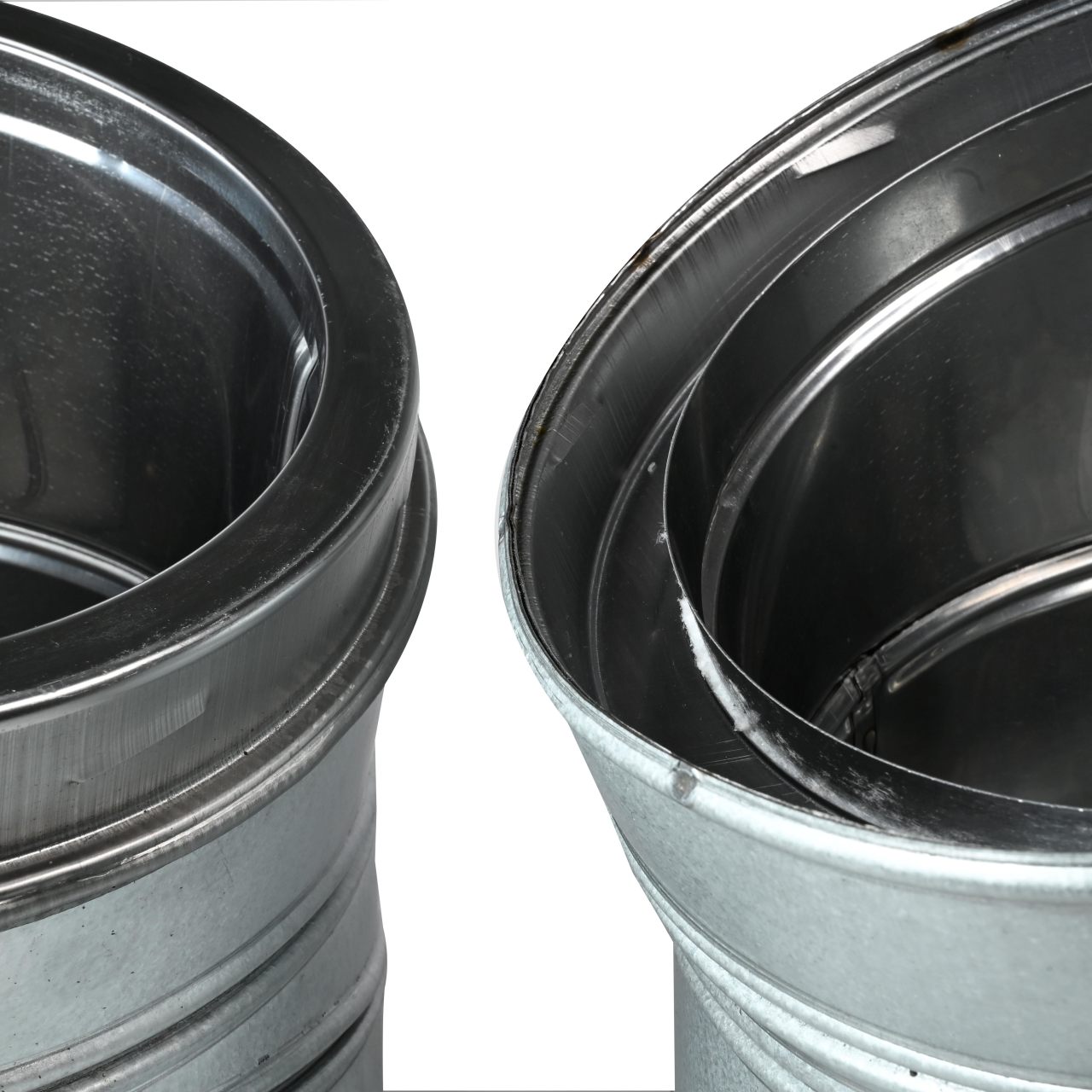

DuraTech Class-A Chimney System 8" 30° Elbow Kit - Use elbows to offset around obstructions such as rafters, ridgepoles, or joists. Offsets greater than 30° are not allowed. Each elbow swivels a full 360°. The DuraTech Class-A Chimney System 8" 30° Elbow Kit features a galvalume outer casting with stainless steel inner wall and a twist-lock connection.

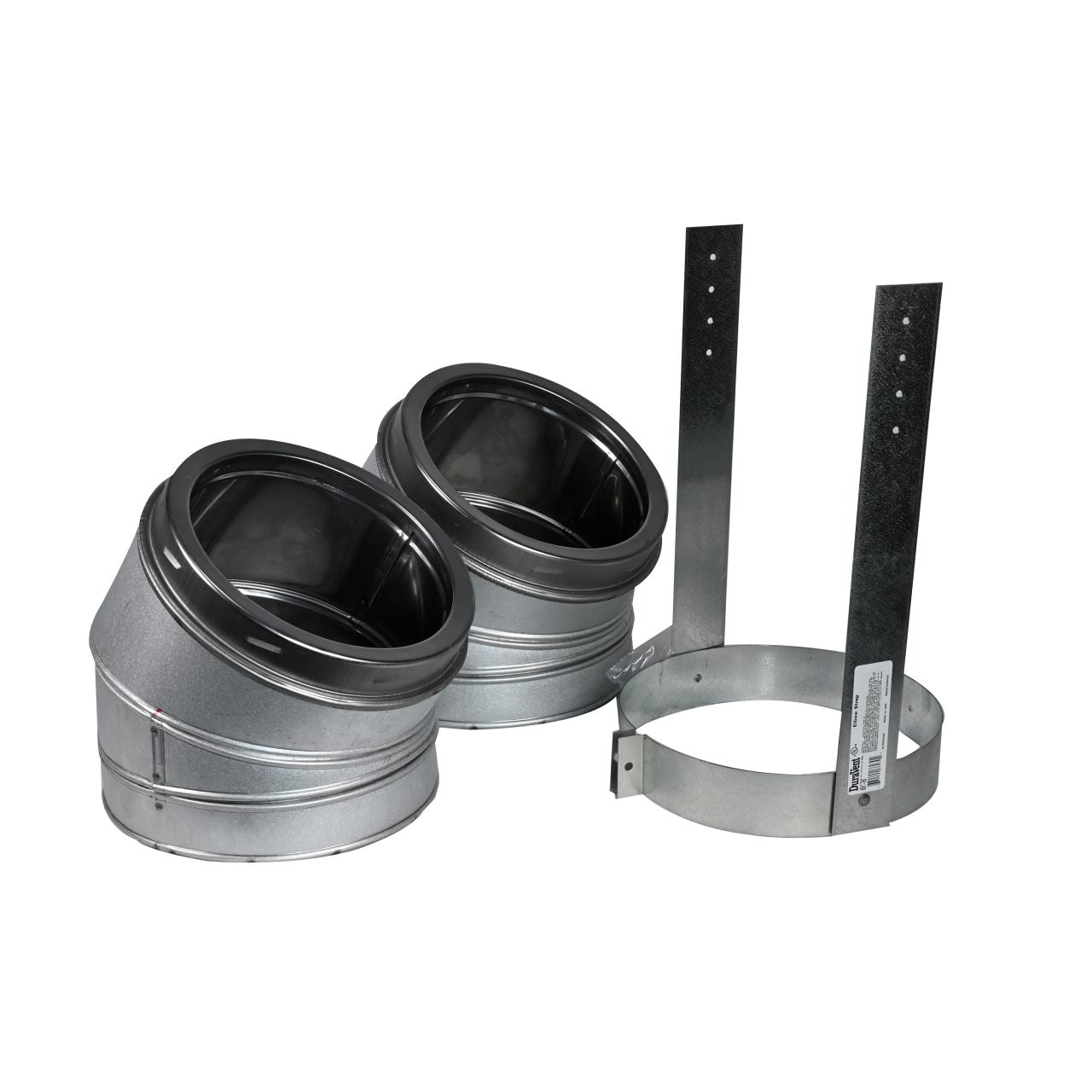

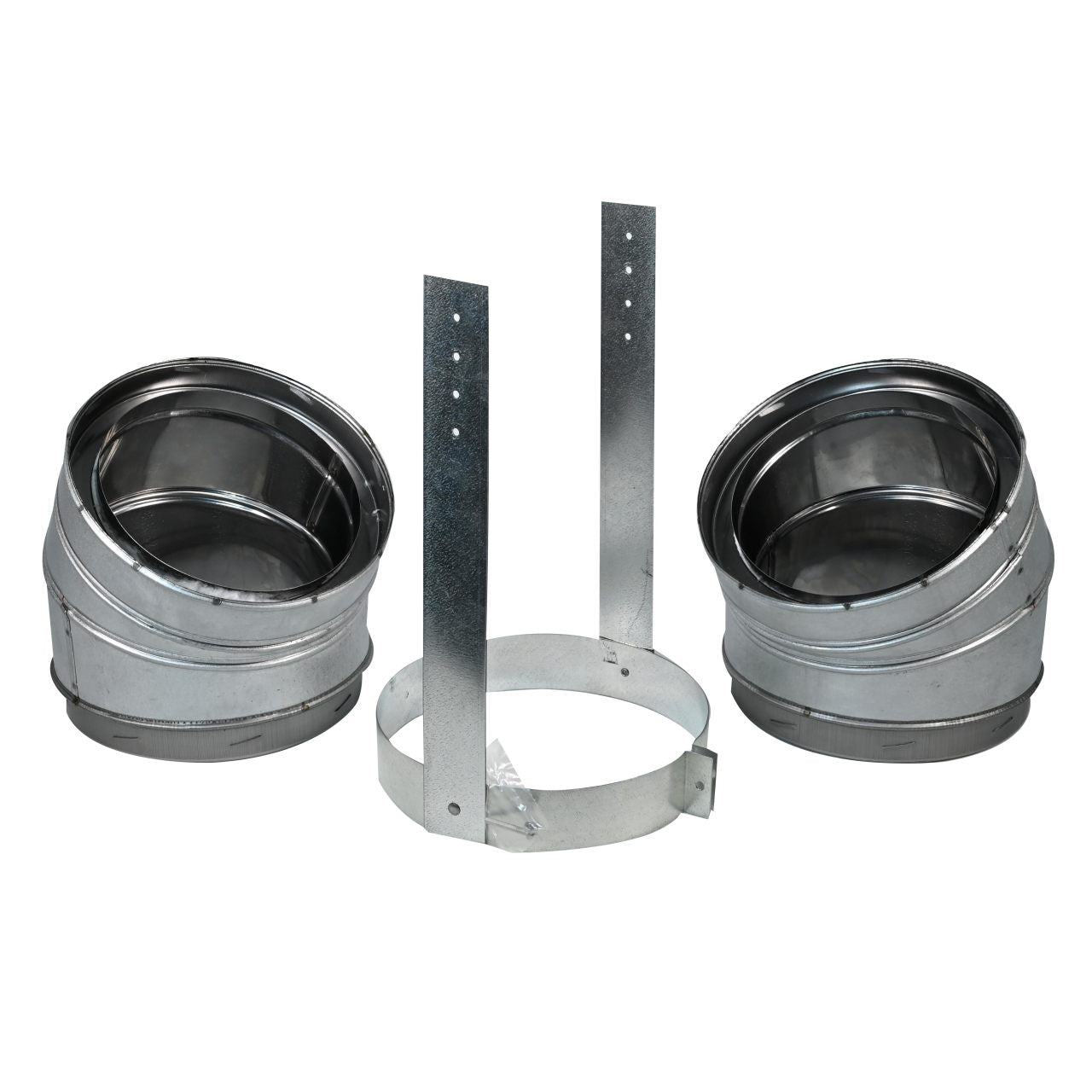

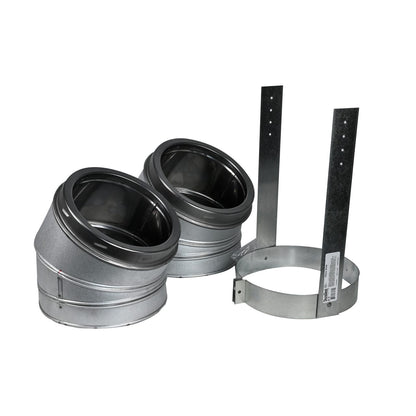

Kit Includes:

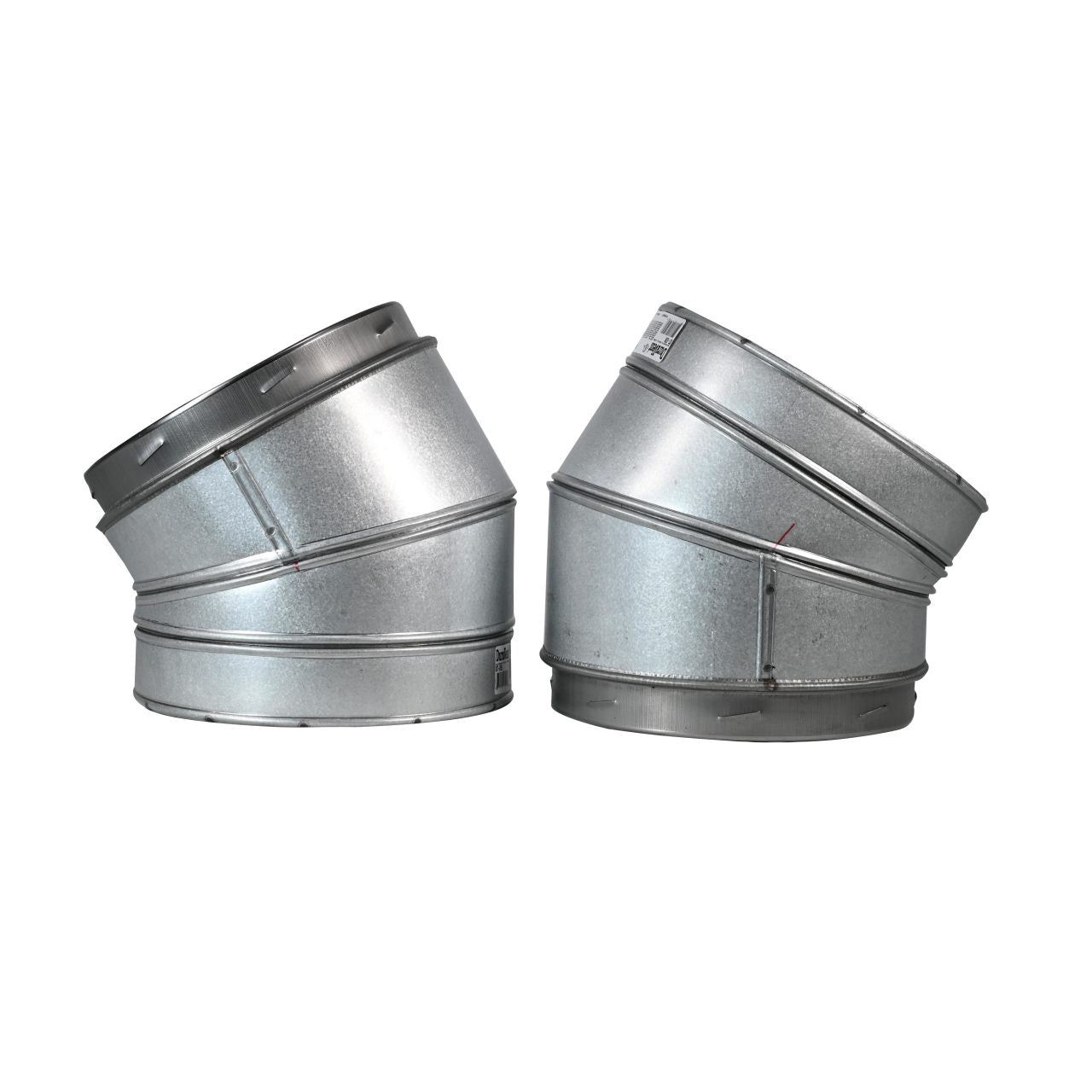

- 2 - 30° Galvalume Adjustable Elbows

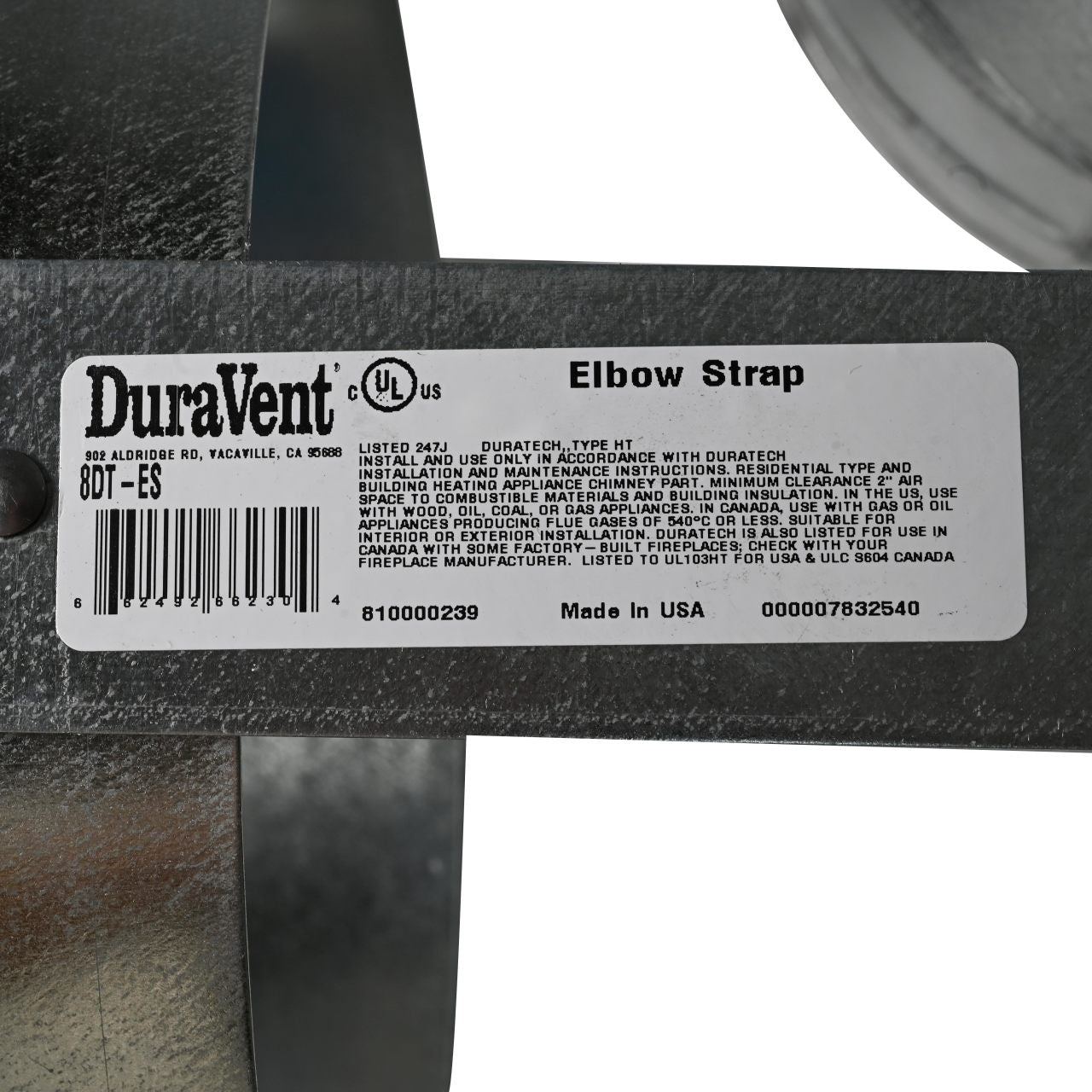

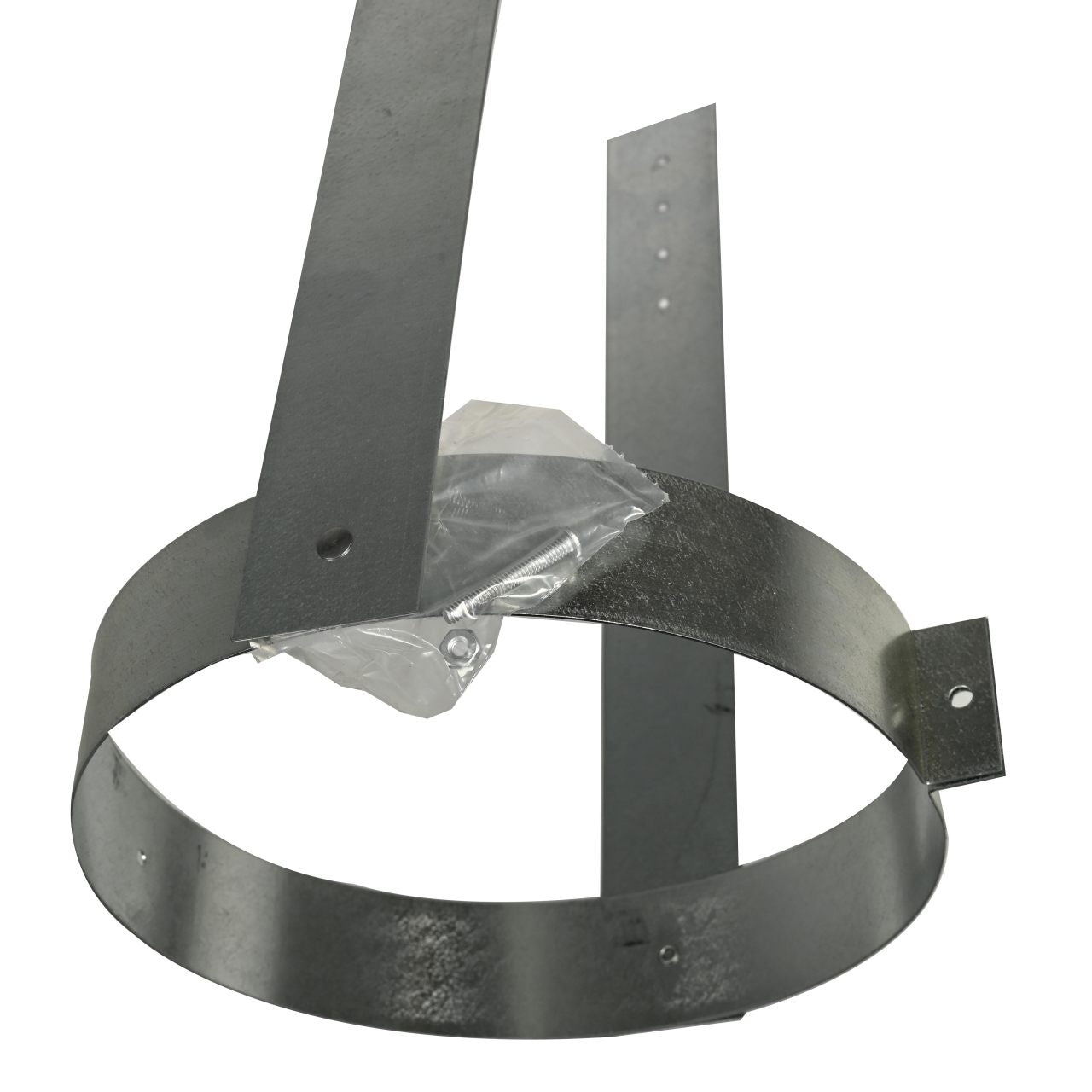

- 1 - Elbow Strap
DuraTech is a double-wall, all-fuel chimney system for use with wood stoves, fireplaces, furnaces, boilers, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas, and zero-clearance fireplaces that are factory-built.
See all 8" DuraTech Chimney Pipe.
DuraTech Elbow Offset Chart
| Size | 5, 6, 7,& 8" Diameter | ||
|---|---|---|---|
| Elbow Angle From Vertical | Chimney Length Between Elbows | Offset Inches | Rise Inches |
| 15° | 0" | 2" | 16 1/2" |
| 15° | 6" | 3 1/4" | 21 1/4" |
| 15° | 9" | 4" | 24 1/8" |
| 15° | 12" | 4 3/4" | 27" |
| 15° | 18" | 6 1/4" | 32 3/4" |
| 15° | 24" | 8" | 38 1/2" |
| 15° | 36" | 11" | 50 1/4" |
| 15° | 18" | 14 1/4" | 61 3/4" |
| 15° | 48"+6" | 15 1/2" | 66 1/2" |
| 15° | 48"+9" | 16 1/4" | 69 3/8" |
| 15° | 48"+12" | 17" | 72 1/4" |
| 15° | 48"+18" | 18 1/2" | 78" |
| 15° | 48"+24" | 20" | 83 3/4" |
| 30° | 0" | 4" | 15 3/4" |
| 30° | 6" | 6 1/4" | 20" |
| 30° | 9" | 7 3/4" | 22 5/8" |
| 30° | 12" | 9 1/4" | 25 1/4" |
| 30° | 18" | 12 1/4" | 30 1/4" |
| 30° | 24" | 15 1/4" | 35 1/2" |
| 30° | 36" | 21 1/4" | 46" |
| 30° | 48" | 27 1/4" | 56 1/4" |
| 30° | 48"+6" | 29 3/4" | 60 1/2" |
| 30° | 48"+9" | 31 1/4" | 63 1/8" |
| 30° | 48"+12" | 32 3/4" | 65 3/4" |
| 30° | 48"+18" | 35 3/4" | 71" |
| 30° | 48"+24" | 38 3/4" | 76" |
Additional Information:
With a Thermal Tech blanket insulation encased between duel walls, DuraTech offers superior safety and performance. It keeps the outer wall cool while ensuring high flue gas temperatures for optimum draft performance. The inner wall is 25% thicker than competitive chimneys, for an extra margin of safety. Designed for normal, continuous operation at 1000° F flue gas temperatures, DuraTech is subjected to rigorous and stringent HT requirements of the UL standard, including one hour at 1400° F, plus three ten minute chimney fire tests at 2100° F.
WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.
