Works great
"Just what I needed to lower my electric bill thanks very much """"""""GOD"""""""" bless"
Description
Description

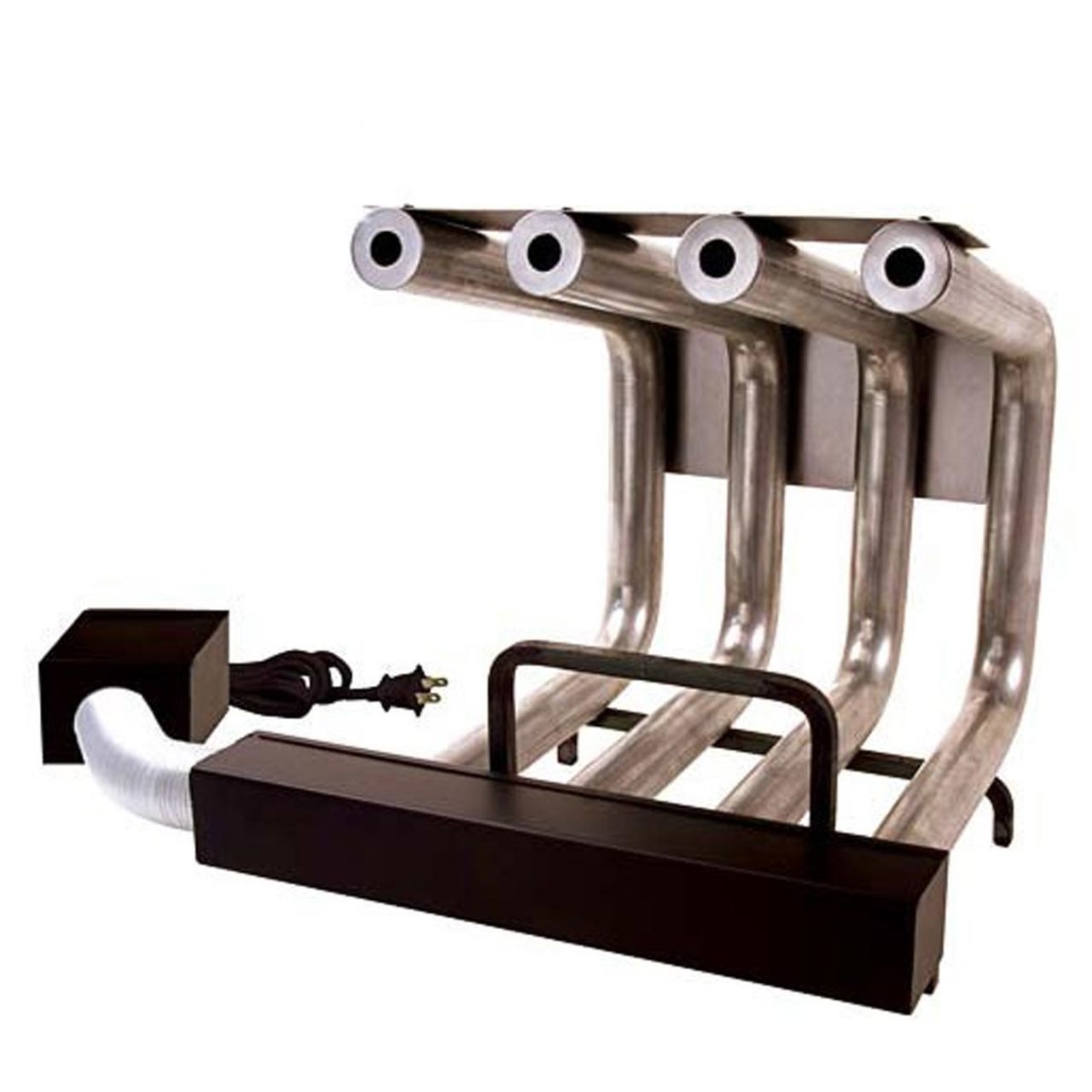

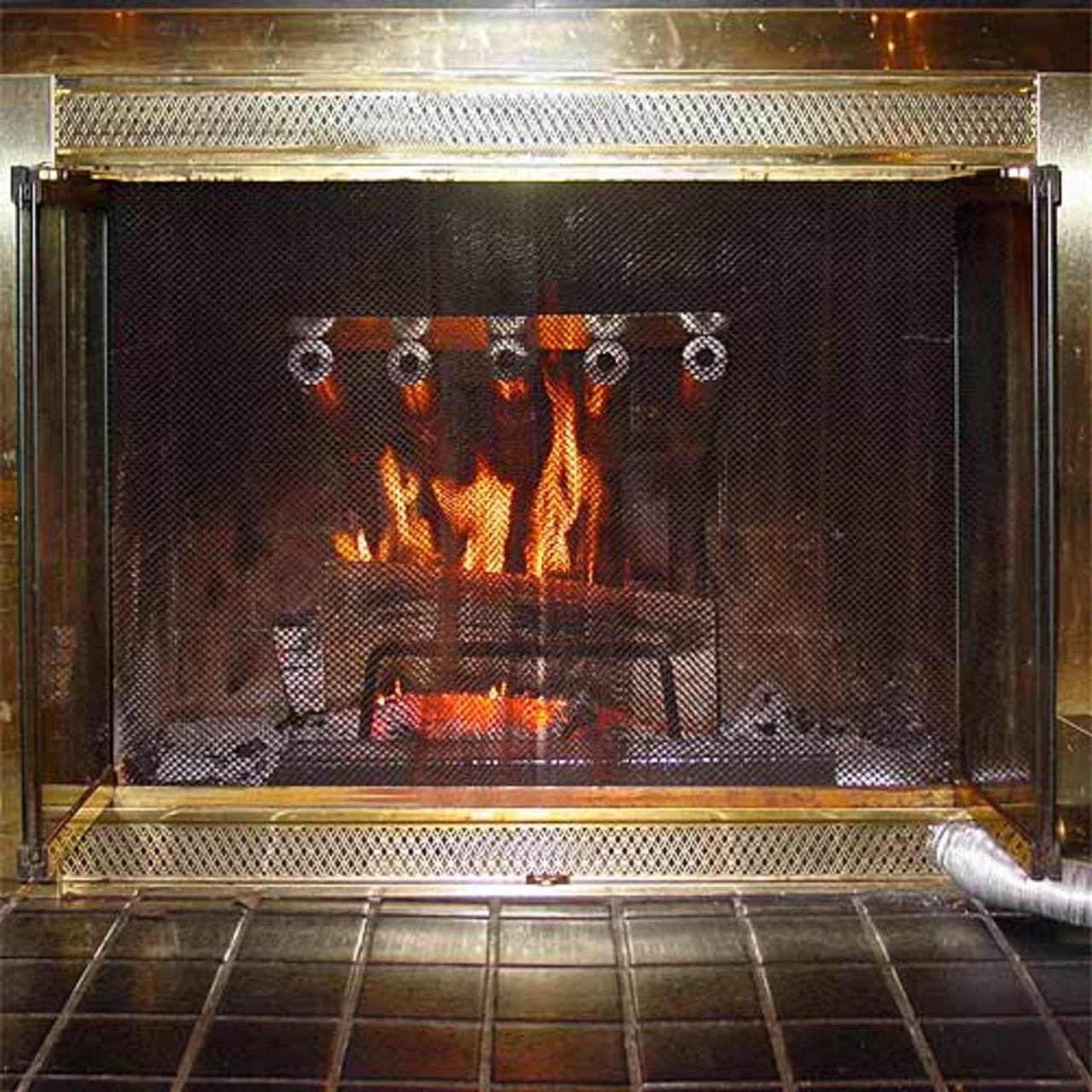

The Fireplace Heater was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500°F and can produce up to 48,000 BTUs of heat, enough to heat a large room or two. It fits into most smaller or zero-clearance (pre-fab) fireplaces and works without power by converting heat naturally through the tubing and into your home. The tubes are made of heavy aluminized steel and are designed for long life.
Product Note: Please see additional info tab for a list of all dimensions.
The optional blower is capable of producing up to 60,000 BTU's of heat when used with the hearth heater. This blower can be mounted on either the left or right side of your Fireplace Hearth Heater. 5 and 6 tube units have a 2 speed blower (50 CFM - High, 30 CFM - Low). Units with 7 or more tubes have a 148 CFM blower with a variable speed control.
- Affordable cost
- Delivers up to 48,000 BTU's of heat (or more with 5 thru 10 tube models - see Additional Info tab
- For use in smaller fireplaces
- Simple installation
- 500% heat output increase
- Heavy tubing for long life
- Works during power outages
- Heat Pipes are made of .063 gauge aluminized steel which inhibits burn thru and rust.
- Special order and require 3 to 4 weeks to manufacture.
For larger fireplaces see the Fireplace Heater.
Note: May be used with a gas log lighter as long as clearances allow for placement under the grate.
BEFORE YOU BURN: There will be a smell on the first burn as the oil in the tubes will burn off. This is normal. WARNING: If you have birds and animals in the house. They should be removed from the house on the first burn. People that are asthmatic and children should also not be in the area during the first burn.
Additional Information:
| Number of Tubes | Front Width | Rear Width | Front Height | Rear Height | Depth | BTU Per Hour (Max)* |
|---|---|---|---|---|---|---|
| 4 Tubes (standard size) | 14 1/8" | 14 1/8" | 17 7/8" | 14 1/2" | 17 1/4" | up to 48,000 |
| 5 Tubes (custom size) | 18 1/8" | 18 1/8" | 17 7/8" | 14 1/2" | 17 1/4" | up to 58,000 |
| 6 Tubes (custom size) | 22" | 22" | 17 7/8" | 14 1/2" | 17 1/4" | up to 68,000 |
| 7 Tubes (custom size) | 25 1/2" | 25 1/2" | 17 7/8" | 14 1/2" | 17 1/4" | up to 78,000 |
| 8 Tubes (custom size) | 29 3/4" | 29 3/4" | 17 7/8" | 14 1/2" | 17 1/4" | up to 88,000 |
| 9 Tubes (custom size) | 33 5/8" | 33 5/8" | 17 7/8" | 14 1/2" | 17 1/4" | up to 98,000 |
| 10 Tubes (custom size) | 37 1/2" | 37 1/2" | 17 7/8" | 14 1/2" | 17 1/4" | up to 108,000 |
| Please Note: BTU output will vary depending on type of wood, size of fire, fireplace size, etc. | ||||||
The Fireplace Heater was developed to dramatically increase convection heat (hot air) coming from your fireplace. The unique design of this grate heater super heats the air within the exchanger tubes to over 500°F and can produce up to 48,000 BTUs of heat, enough to heat a large room or two. It fits into most smaller or zero-clearance (pre-fab) fireplaces and works without power by converting heat naturally through the tubing and into your home.
