Details
The Finishing Collar transitions from stove pipe to the chimney for through-the-wall installations together with a Wall Thimble and Tee. The Finishing Collar is not needed with the Ceiling Support Box, as the transition piece is built into the Support Box. The Finishing Collar provides a cleaner look to the end of the chimney pipe, and also provides a means of securely attaching the stove pipe to the chimney.
Included with the Wall Thimble
Additional Information:
Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

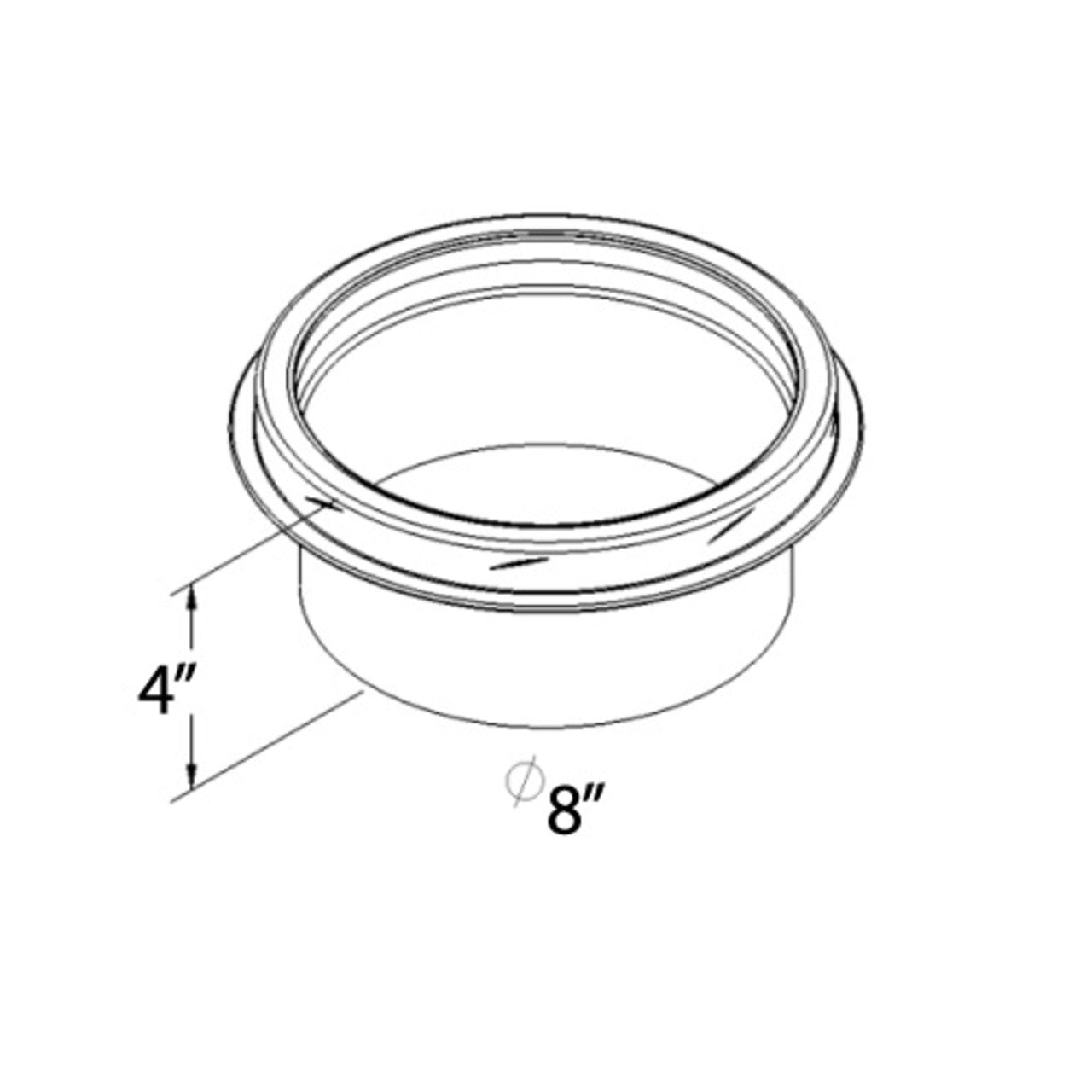

Specifications:- Dimensions: 8'' Dia. x 4'' High
- Accommodates walls up to 4'' Deep
- Construction Material: Galvanized Steel
- Clearance: 2" clearance to combustibles
- Listings: ETL Listed by Intertek to the HT requirements of UL 103
-
Additional Information
Clearance Non-Clearance Country Of Origin China Pipe Wall Double Wall Pipe Piece Collar Type Class A Pipe Diameter 8 Inch Product Type Chimney Pipe Brand Shasta Vent
The Finishing Collar transitions from stove pipe to the chimney for through-the-wall installations together with a Wall Thimble and Tee. The Finishing Collar is not needed with the Ceiling Support Box, as the transition piece is built into the Support Box. The Finishing Collar provides a cleaner look to the end of the chimney pipe, and also provides a means of securely attaching the stove pipe to the chimney.
Included with the Wall Thimble
Additional Information:
Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire
Specifications:
- Dimensions: 8'' Dia. x 4'' High
- Accommodates walls up to 4'' Deep
- Construction Material: Galvanized Steel
- Clearance: 2" clearance to combustibles
- Listings: ETL Listed by Intertek to the HT requirements of UL 103
| Clearance | Non-Clearance |
|---|---|
| Country Of Origin | China |
| Pipe Wall | Double Wall |
| Pipe Piece | Collar |
| Type | Class A Pipe |
| Diameter | 8 Inch |
| Product Type | Chimney Pipe |
| Brand | Shasta Vent |
