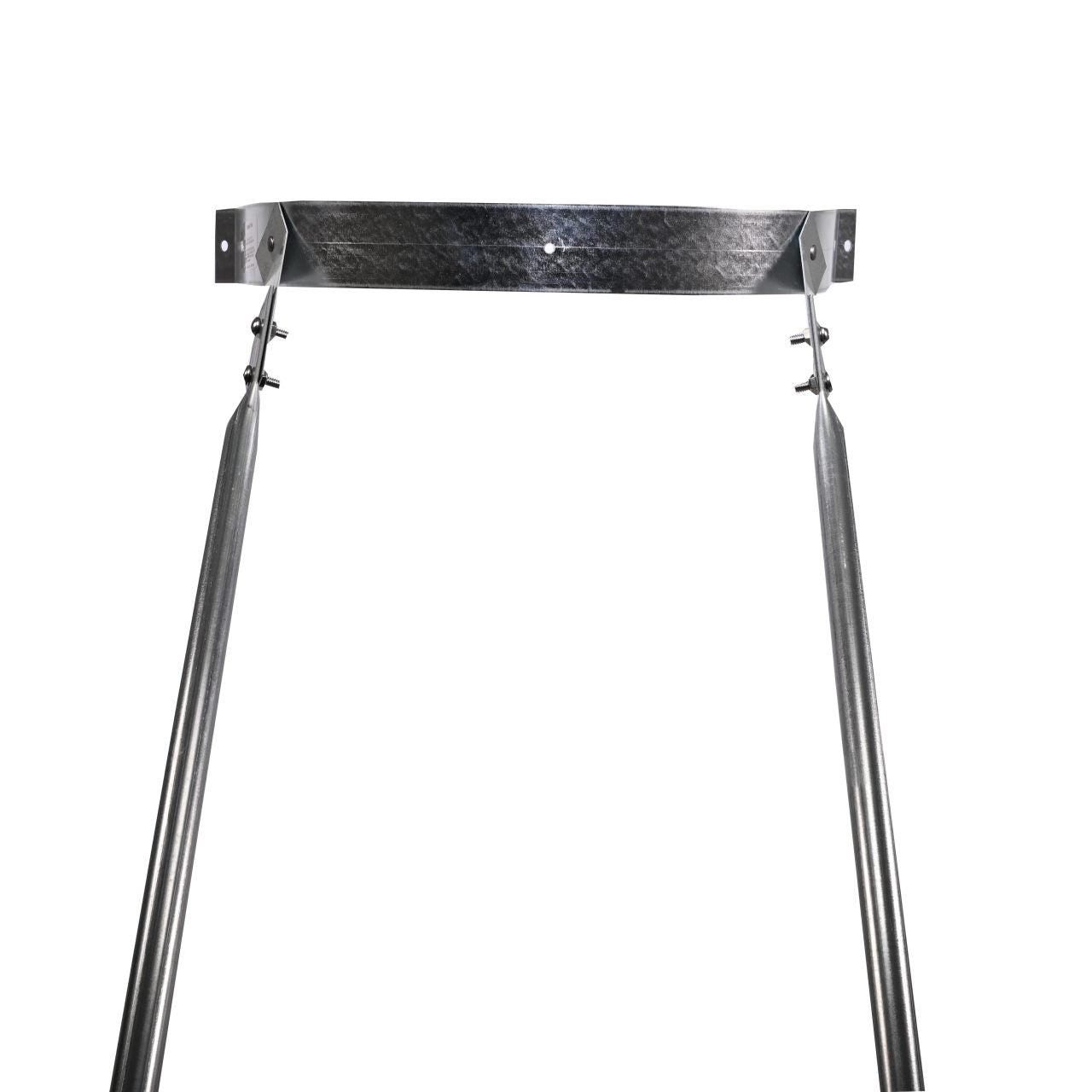

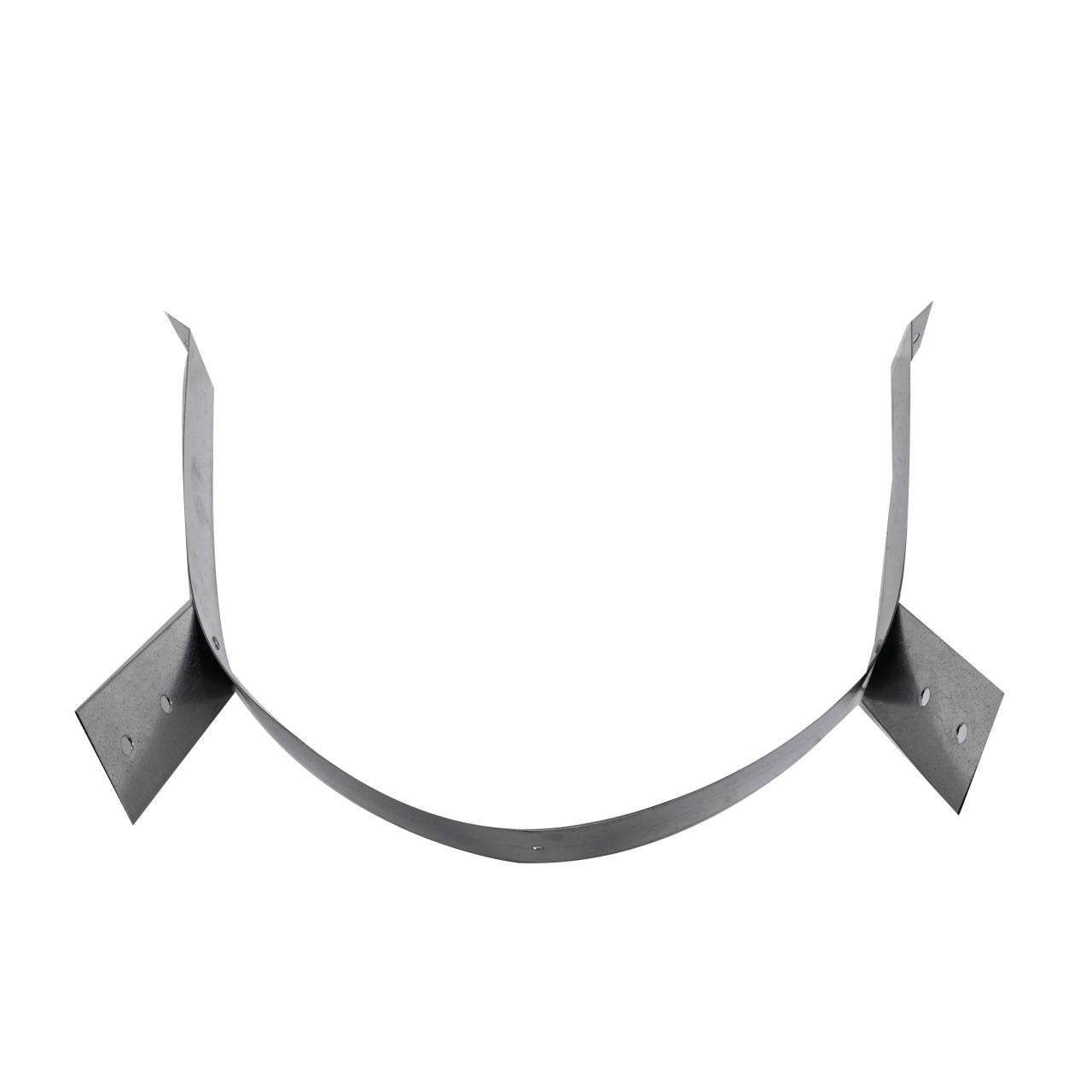

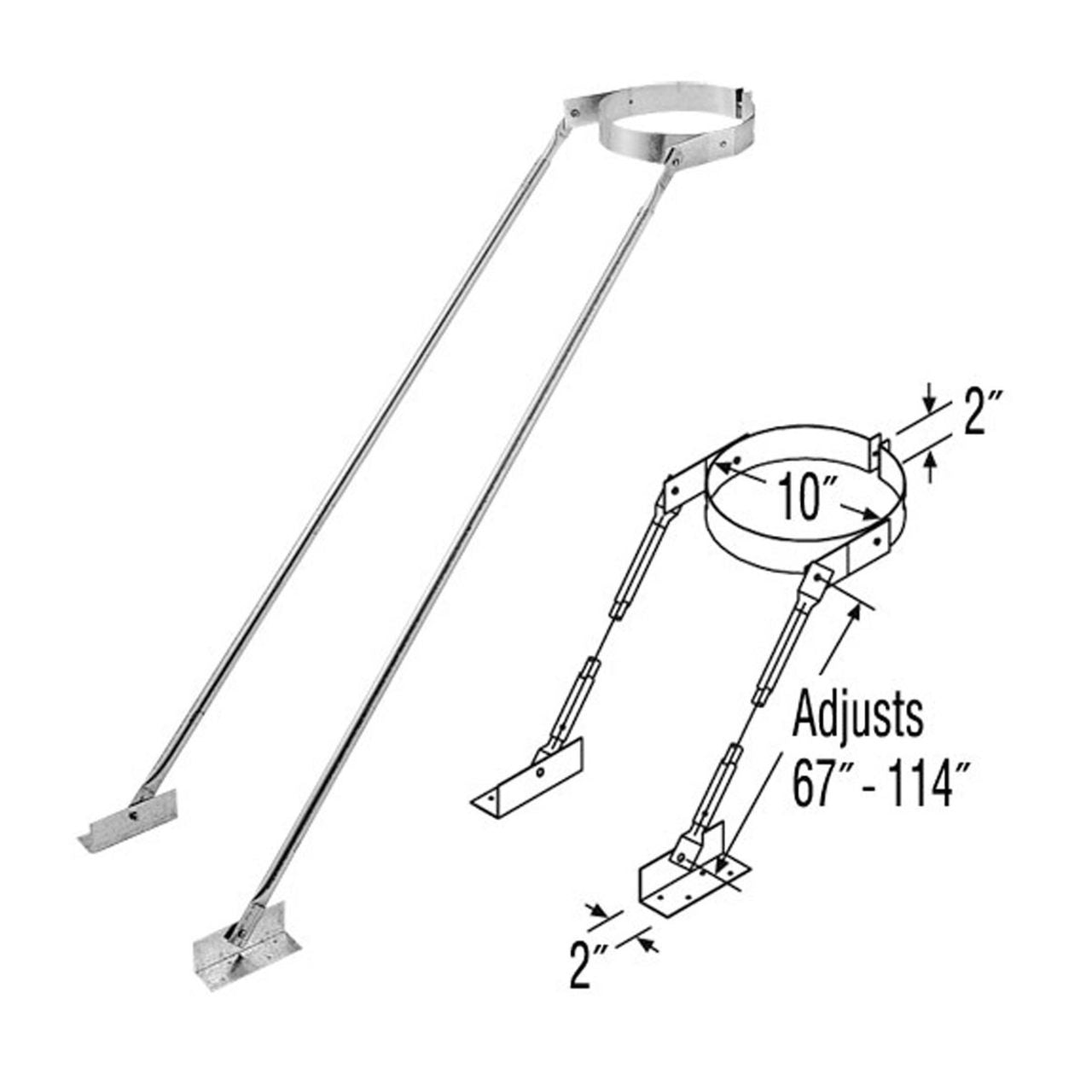

6'' DuraPlus Extended Roof Bracket - 6DP-XRB
Use when securing DuraPlus pipe to the roof when it extends more than 5' above the roof line. DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
Use when securing DuraPlus pipe to the roof when it extends more than 5' above the roof line.
DuraPlus is a triple-wall, all-fuel chimney for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, or other appliances fueled by wood, oil, coal, or gas.
See all 6" DuraPlus Chimney Pipe.
Additional Information:
The Simpson DuraPlus all-fuel chimney system is for use with wood stoves, fireplaces, furnaces, boilers, stoves, ranges, water heaters, and other appliances fueled by wood, oil, coal, or gas. The innovative triple wall construction is designed to stay cool on the outside, and provide hot drafts on the inside to boost stove efficiency which in turn, makes for a fire-safe construction that protects both the chimney as well as the building. The triple wall chimney features 2 insulating layers. A ceramic blanket and air space provide security to the design. The ceramic blanket insulation is held securely in position eliminating hot spots common with loose-fill type insulations. In the event of a creosote fire, the compressible blanket insulation allows the chimney liner to expand outwardly in a radial direction.
DuraPlus components make for easy installations offering a precision twist-lock connection that secures without the use of gaskets or sealants. Safety and efficiency of the chimney is maintained after the installation with a 2" minimum clearance to combustibles.
Specifications:
- Diameter: 6"
- Construction materials: Galvalume
- Clearance: 2"

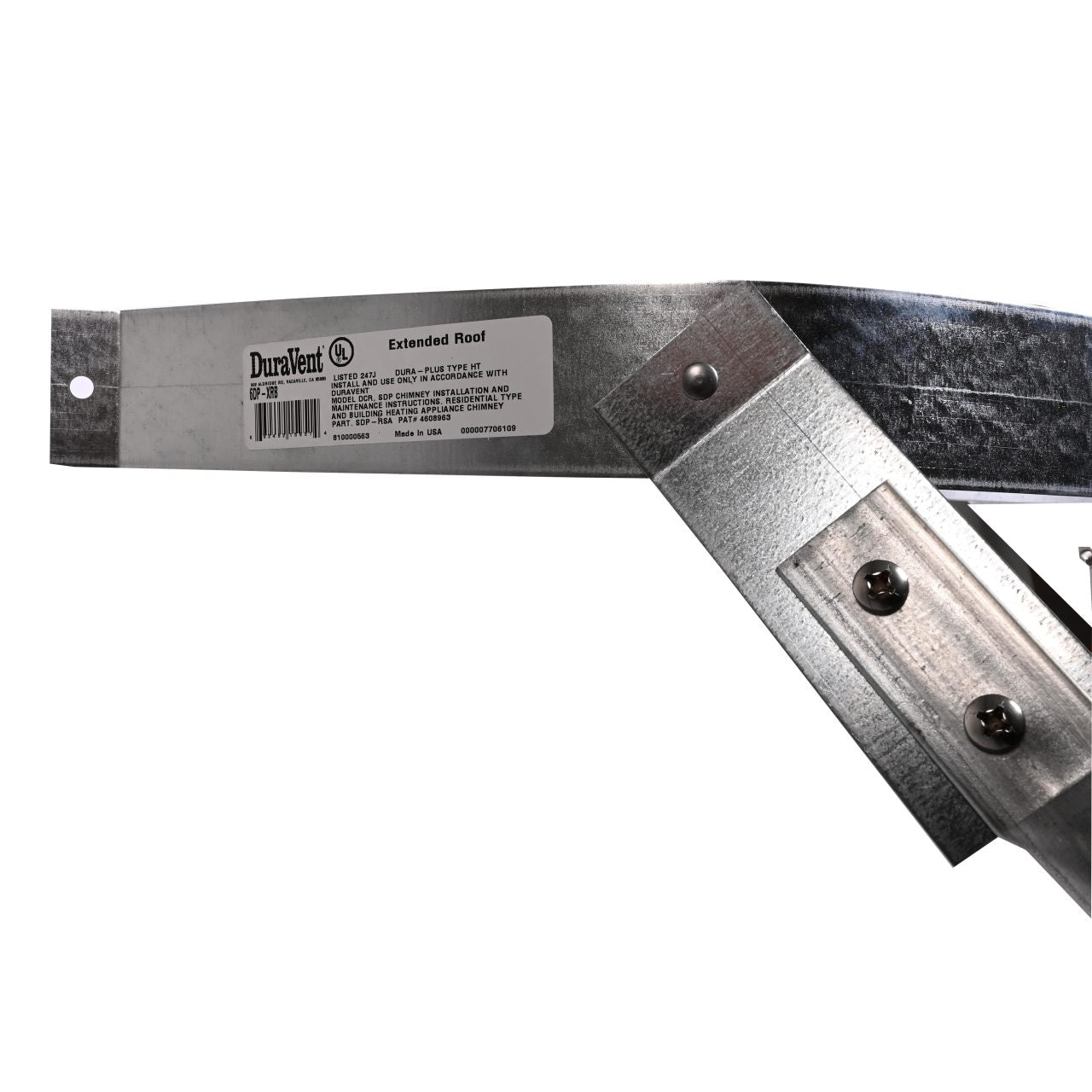

- Listings: UL listed to UL 103 (MH7399)
- Use to support the chimney when it extends more than 4' above the roof
- Provides stability to the chimney against wind and snow

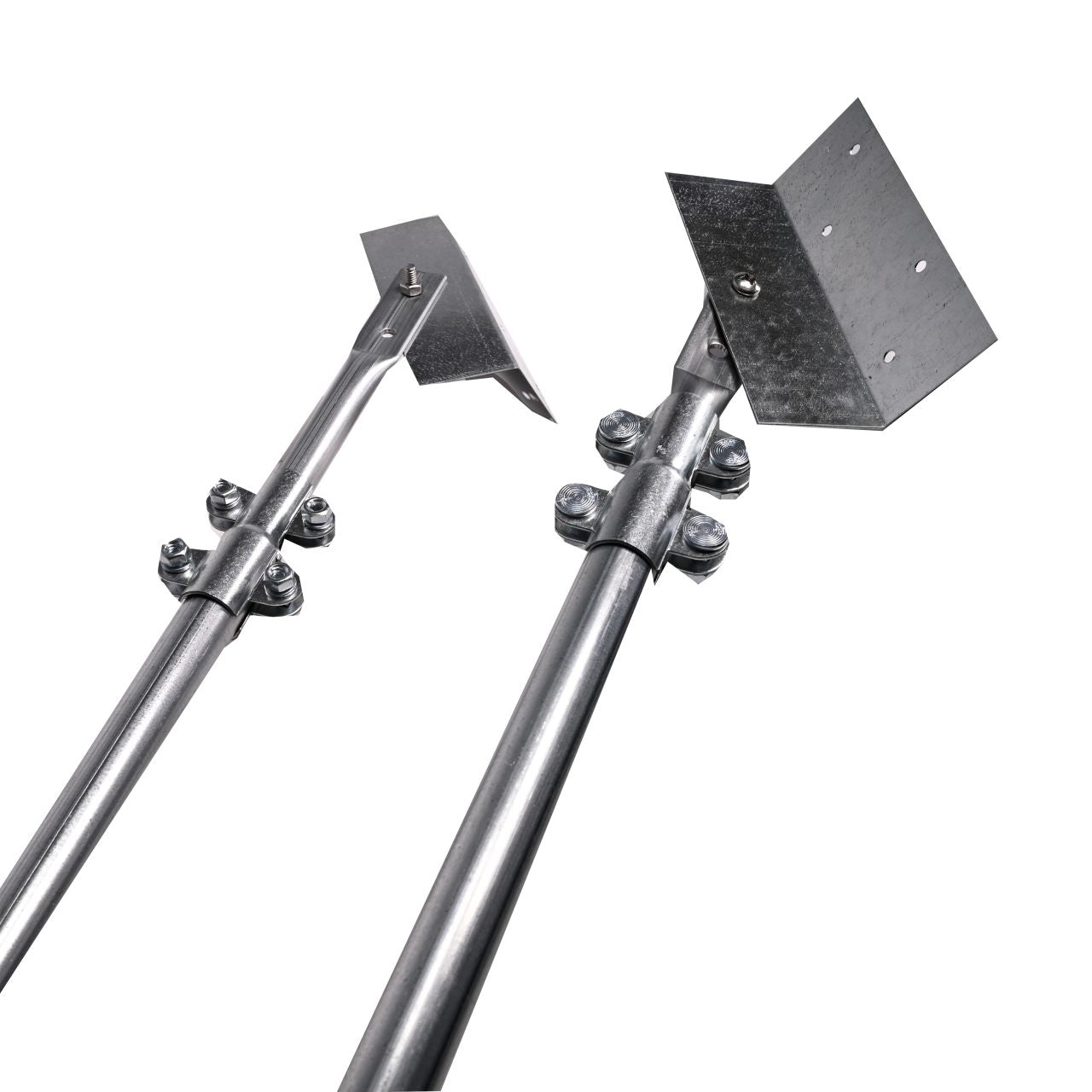

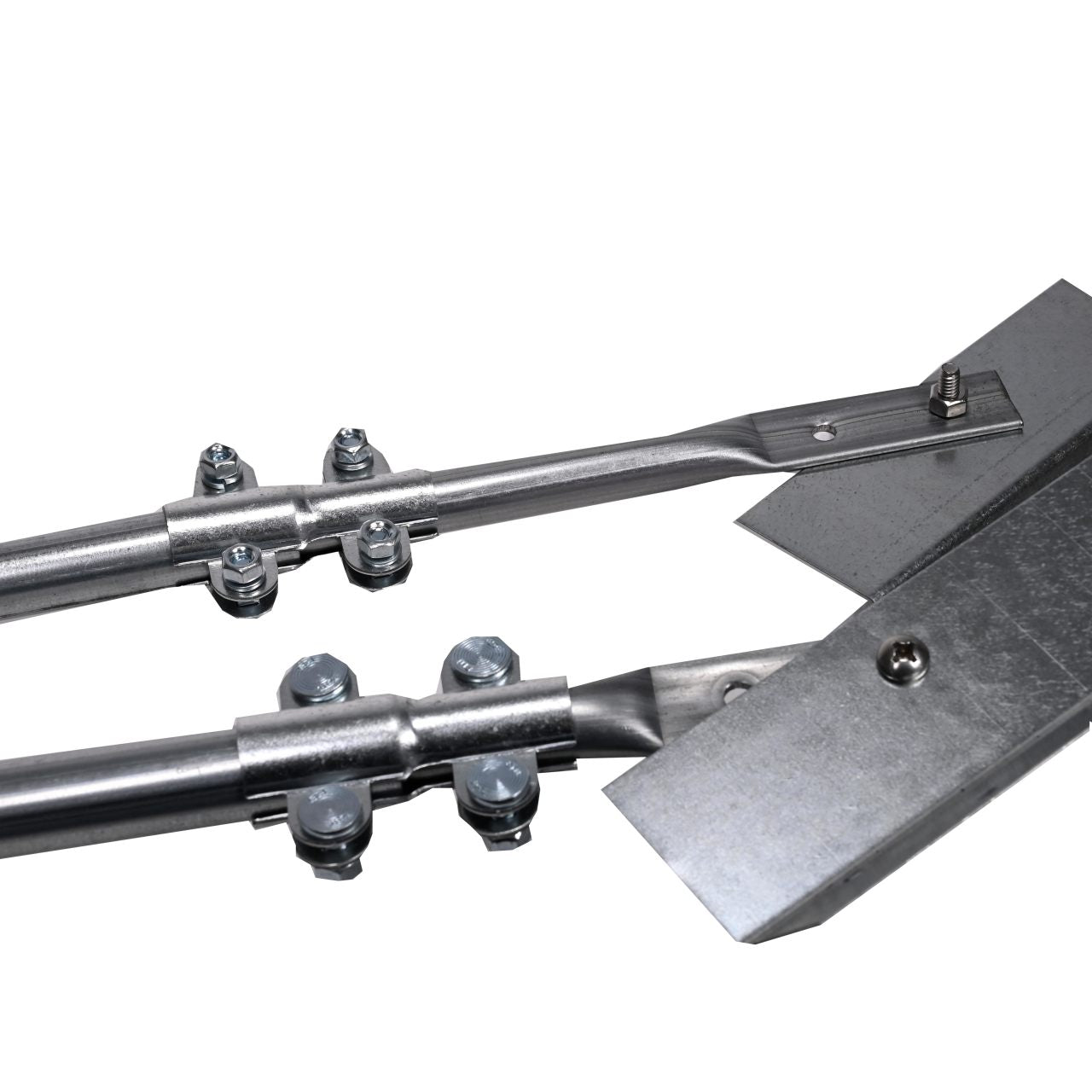

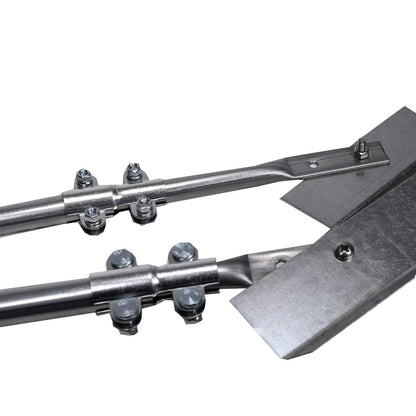

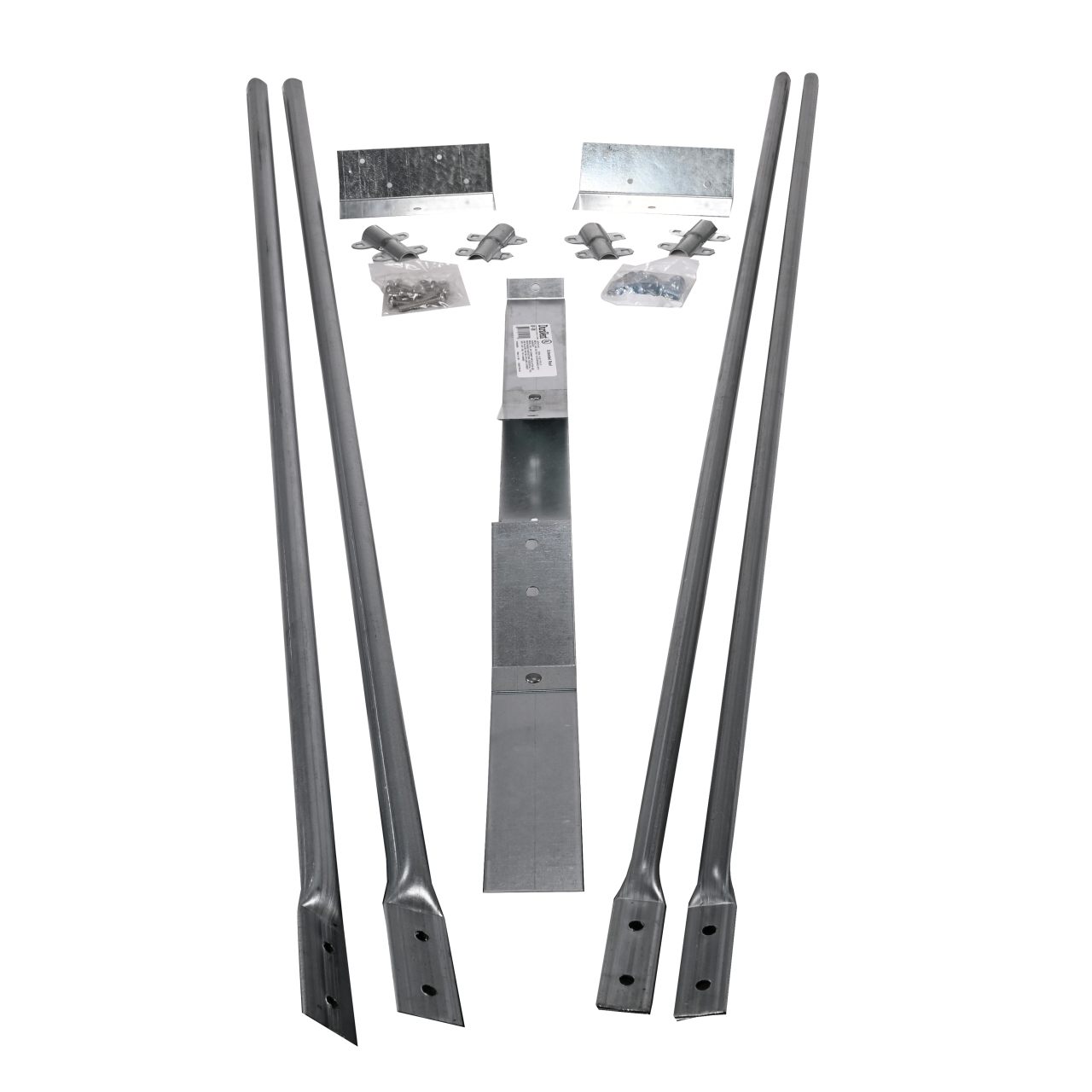

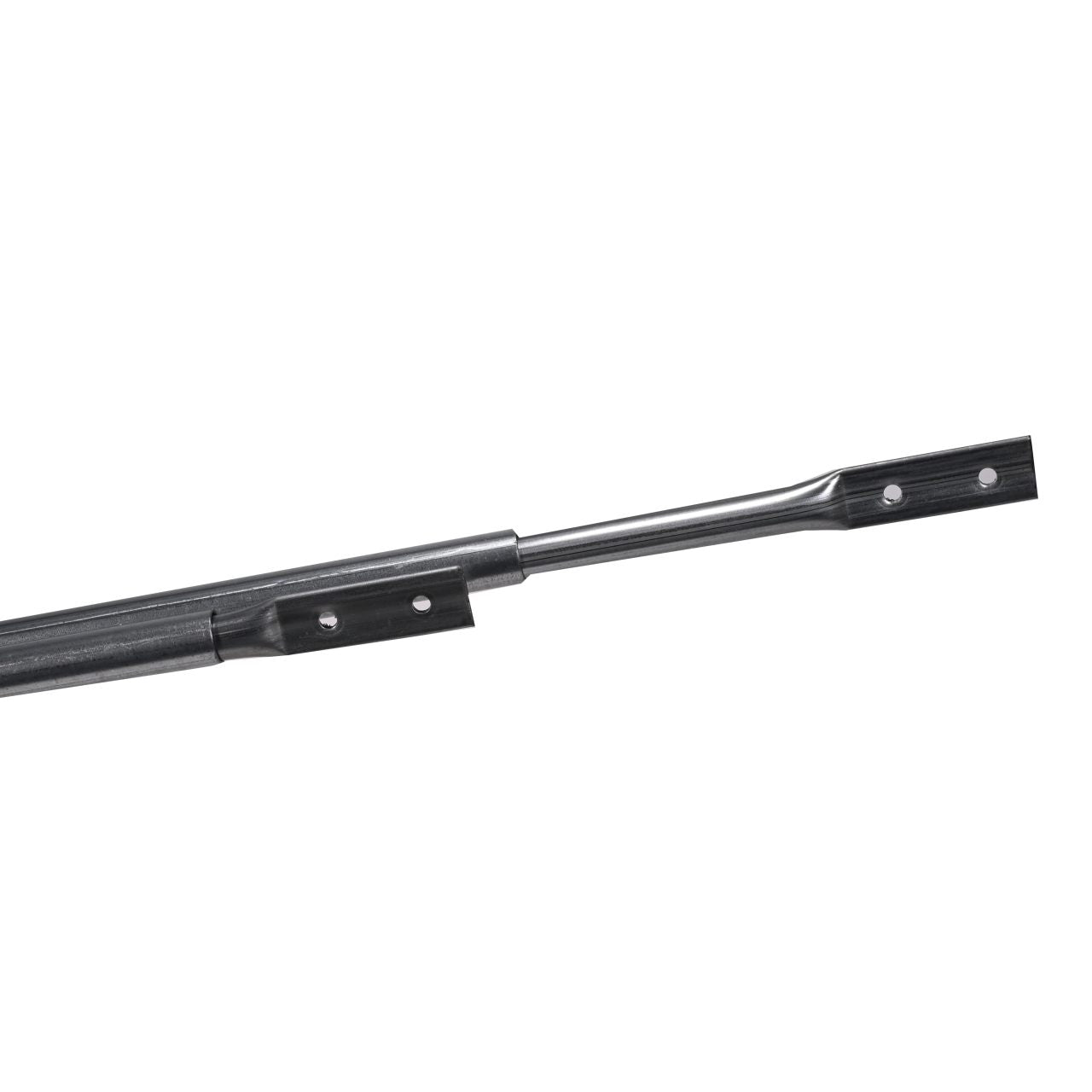

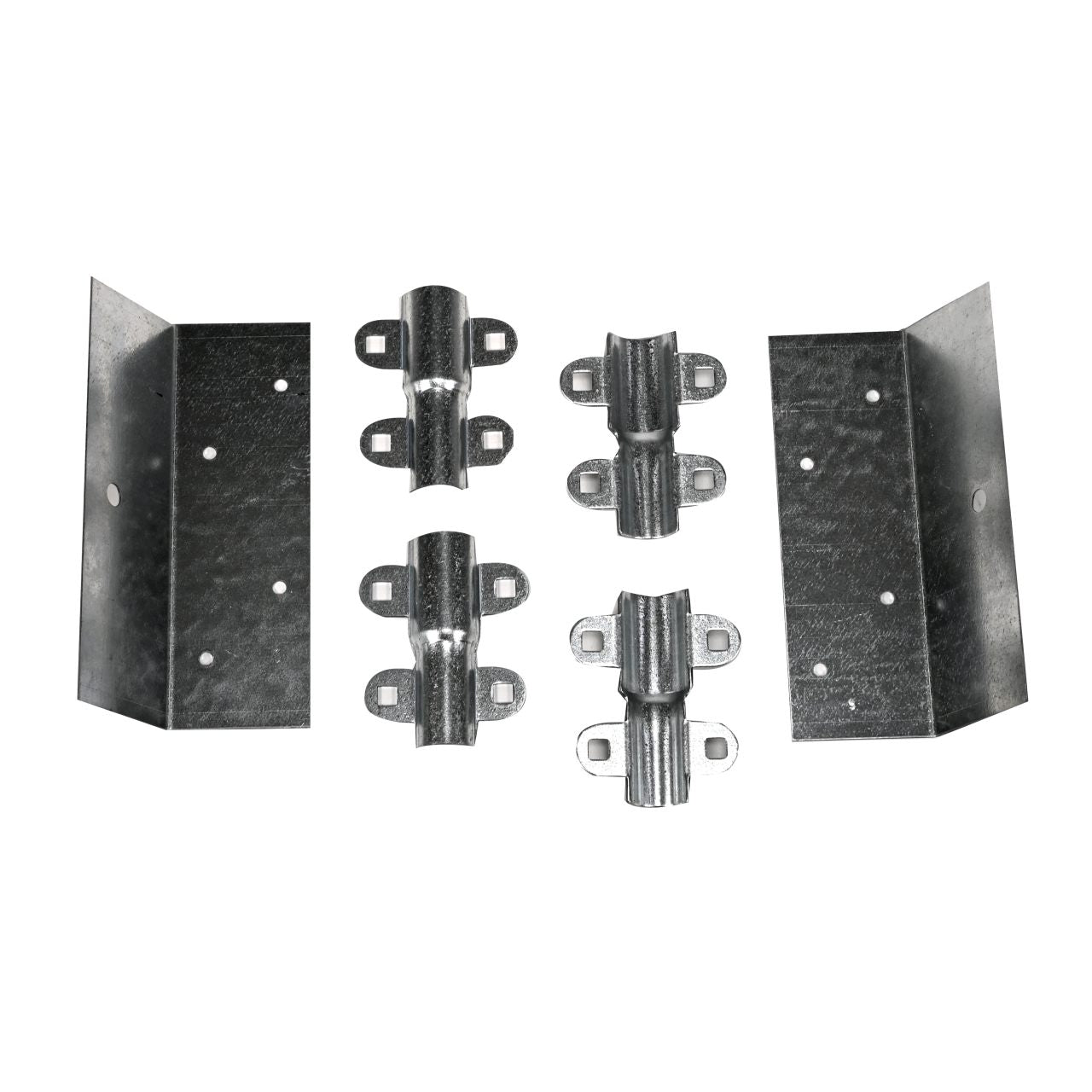

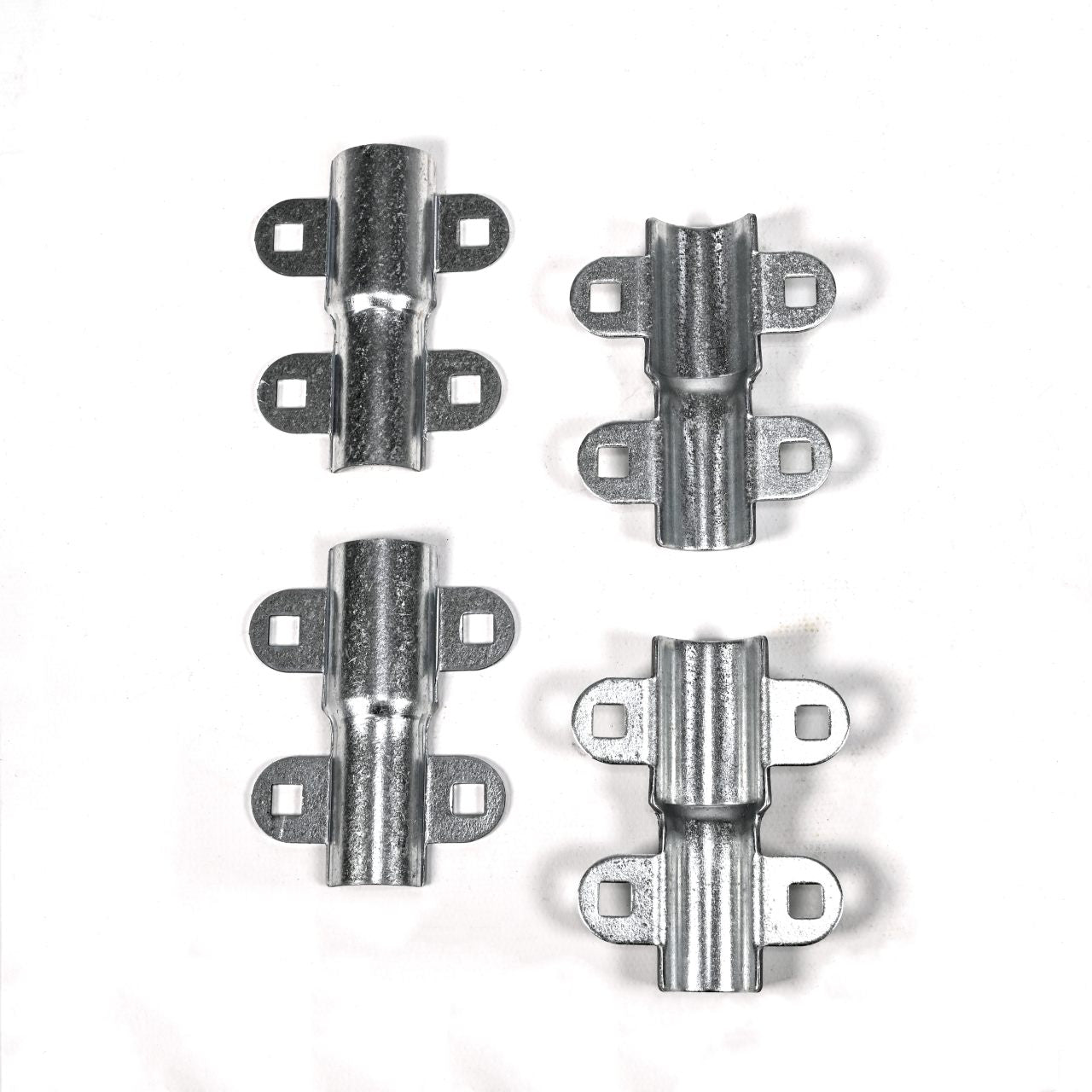

- Mounting brackets and adjustable legs included
What is the difference between chimney pipe and stove pipe?
Many confuse the terms. Stove pipe is usually painted black galvanized steel and is used in the interior on the home until you transition through a wall or ceiling then class A chimney pipe is used thereon. Stove pipe, black pipe, single wall pipe all refers to the same thing. Chimney pipe, class A pipe, triple-wall pipe, and insulated pipe all refers to class A chimney pipe.
For any additional information, remember to check out the Resources and Help Articles on our page
WARNING: This product can expose you to chemicals including Chromium, which is known to the State Of California to cause cancer and birth defects or other reproductive harmFor more information go to http://www.P65Warnings.ca.gov.
- Diameter: 6"
- Construction materials: Galvalume
- Clearance: 2"
- Listings: UL listed to UL 103 (MH7399)
- Use to support the chimney when it extends more than 4' above the roof
- Provides stability to the chimney against wind and snow
- Mounting brackets and adjustable legs included
