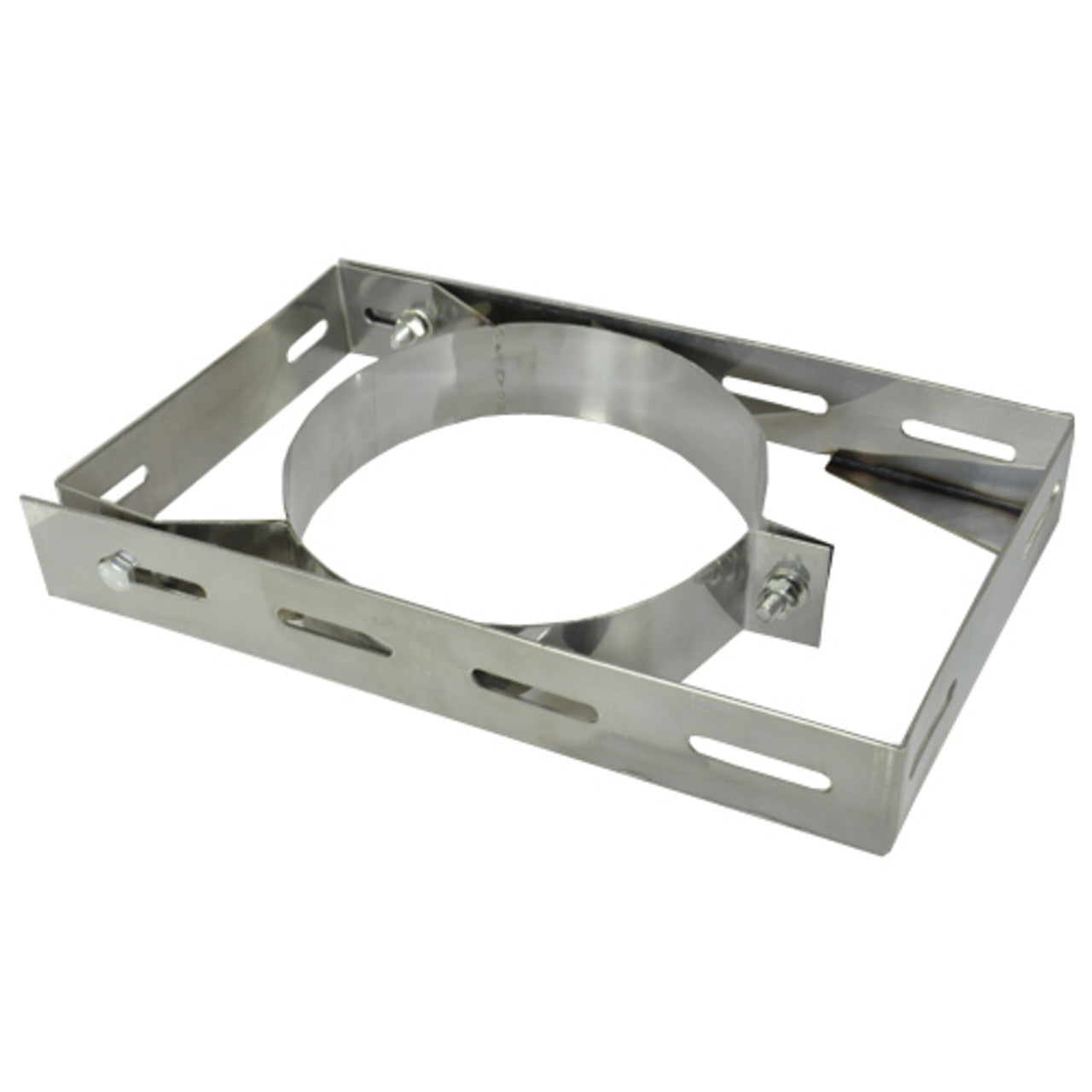

Shasta Vent 6 Inch Adjustable Wall Bracket

The Adjustable Wall Bracket helps to secure the chimney in place when mounted to a structure or wall. Adjustable Wall Brackets are required at least every 10-feet, unless the chimney is otherwise held in place by a Ceiling Support Box, Tee Support, or passing through a Firestop Radiation Shield. The Adjustable Wall Bracket provides lateral stability, but does not support the weight of the chimney system. Adjustable Wall Brackets provide between 2" to 8" of adjustment between the chimney pipe and the wall.

Additional Information:

Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

  ShastaVent Catalog

  Installation Instructions
