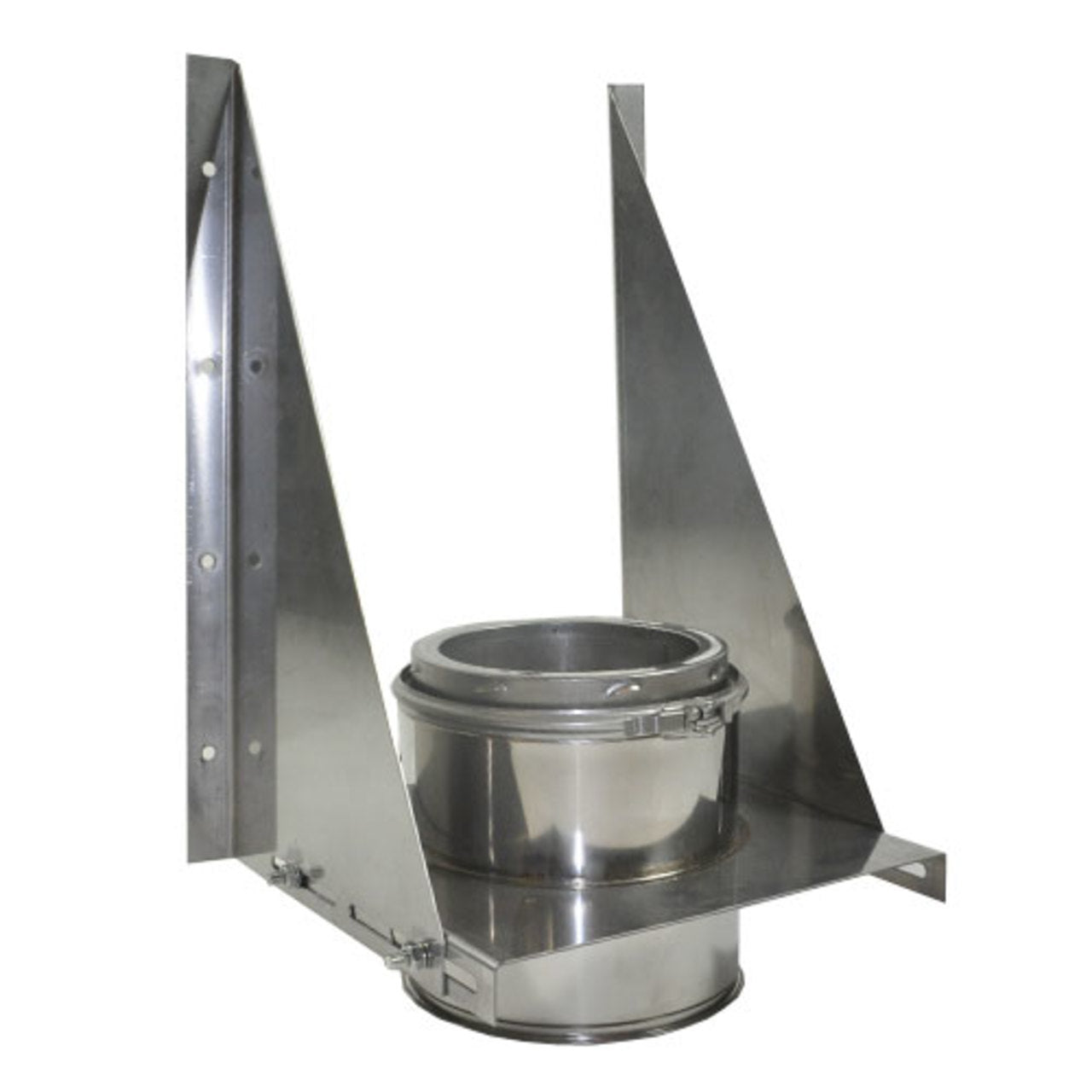

Shasta Vent 6 Inch Tee Support

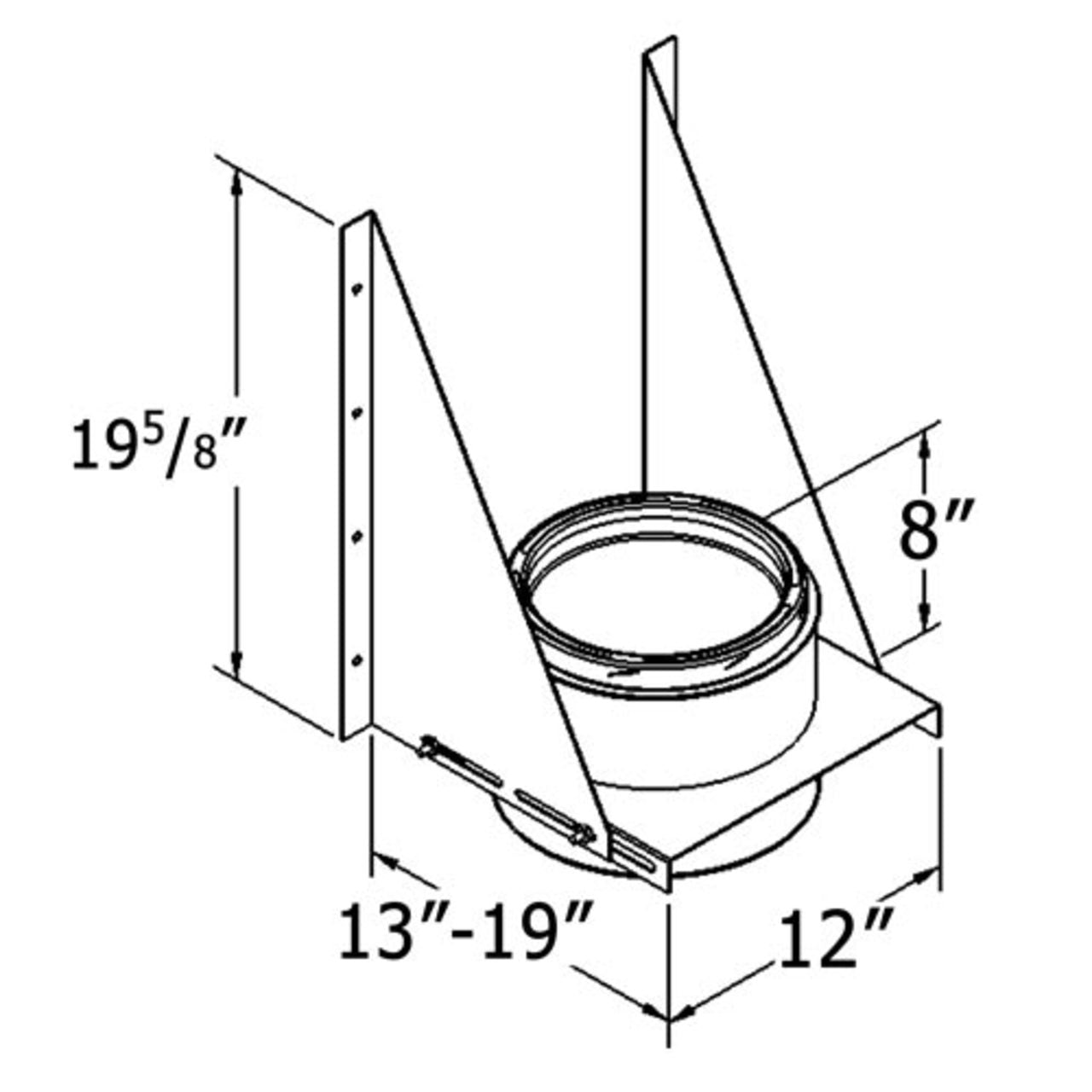

The Tee Support is used to support the chimney system when installing a through-the-wall system. The Tee Support is adjustable and provides a range of 2"-8" between the chimney pipe and the wall. The Tee Support can support a maximum of 50-ft of chimney pipe. An additional Tee Support can be used to help support a taller system.

Additional Information:

Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire

  ShastaVent Catalog

  Installation Instructions
