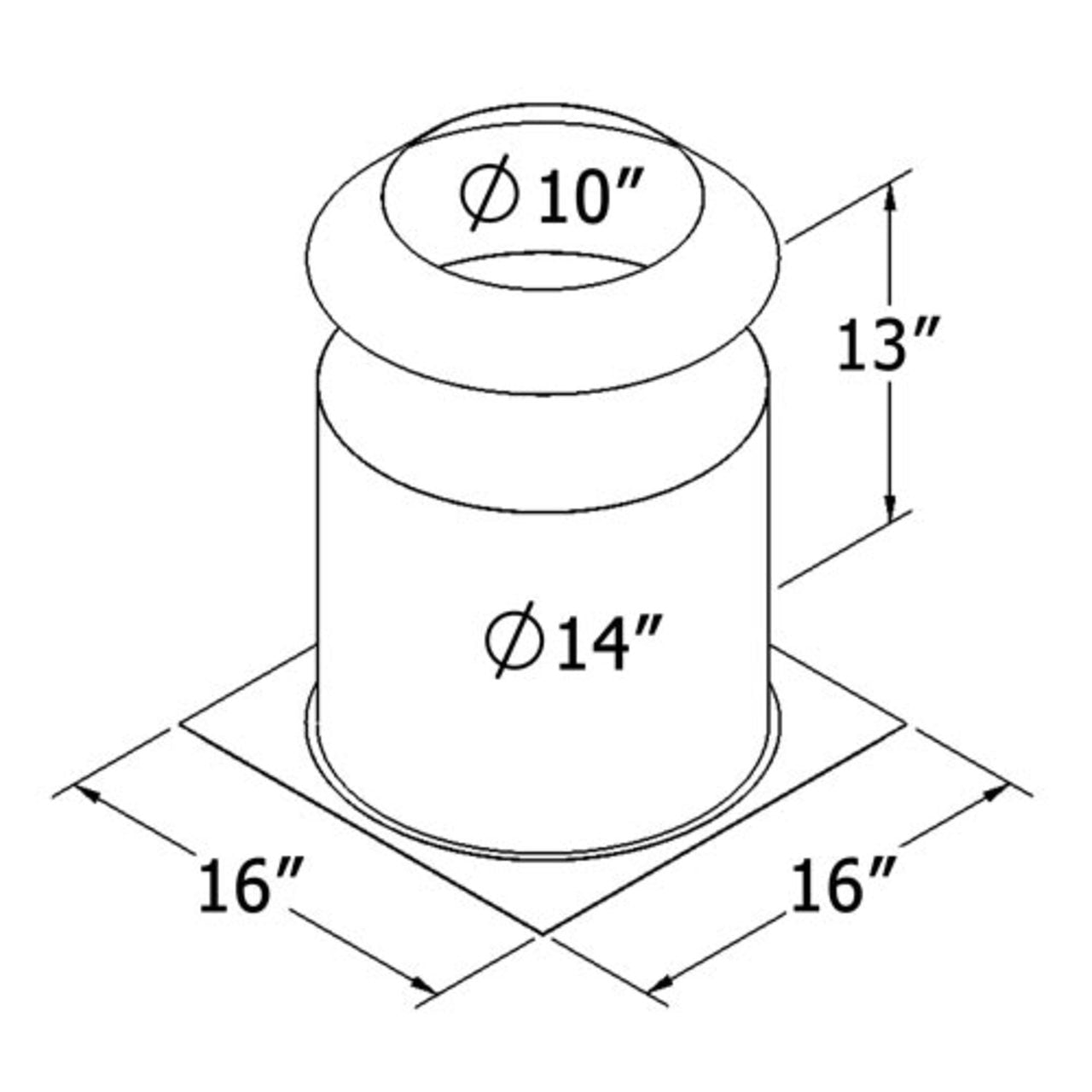

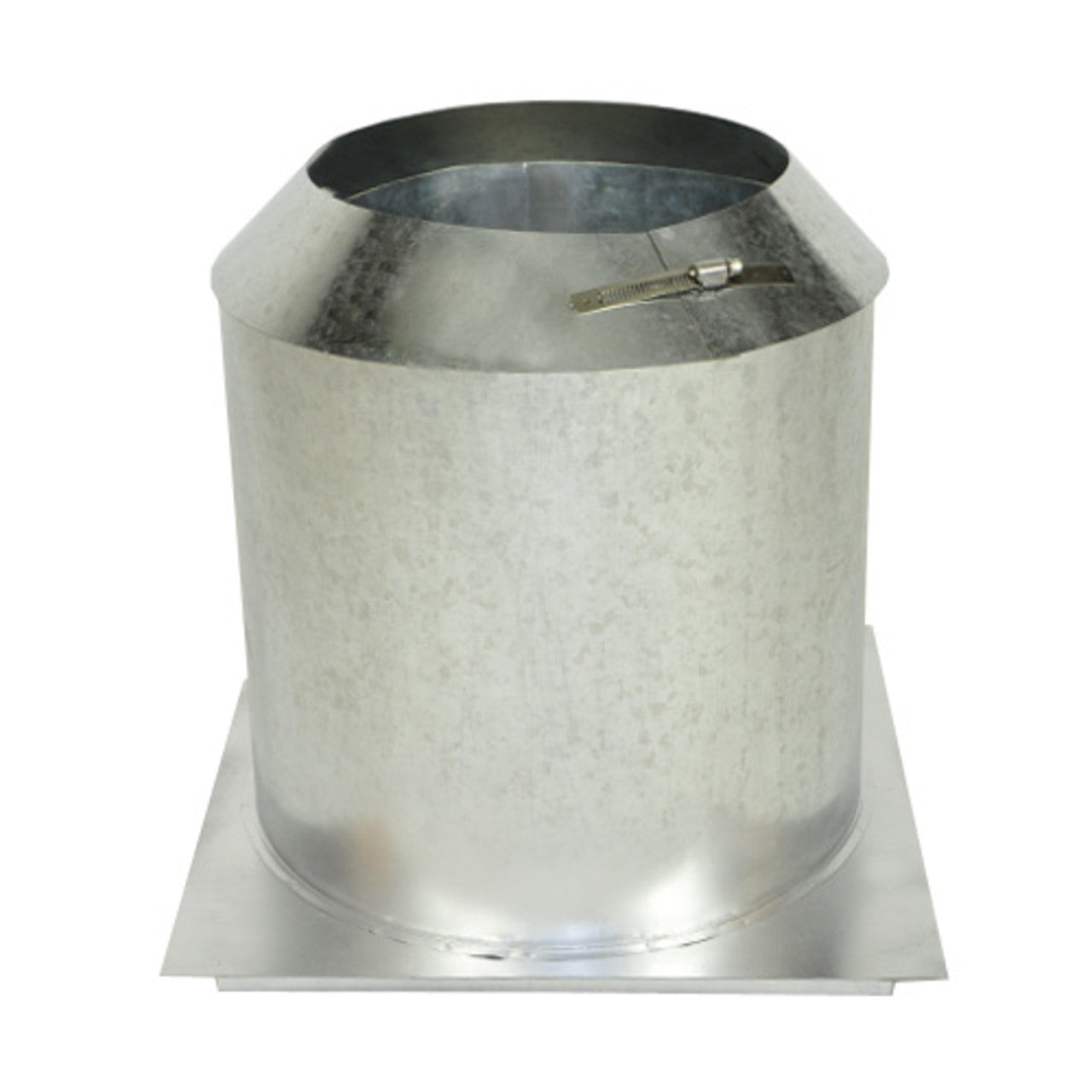

Shasta Vent 8 Inch Insulation Shield

The Insulation Shield prevents building insulation and other debris from contacting the Chimney. The Insulation Shield is required either in the attic or another location where the Chimney pipe could contact building insulation or debris, and is a critical component for a safe installation. Typically, the Insulation Shield is placed on top of the framing of the last floor level before the chimney exits through the roof. The Insulation Shield is not required if the chimney is fully enclosed in a chase in the attic space.

Additional Information:

Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire
