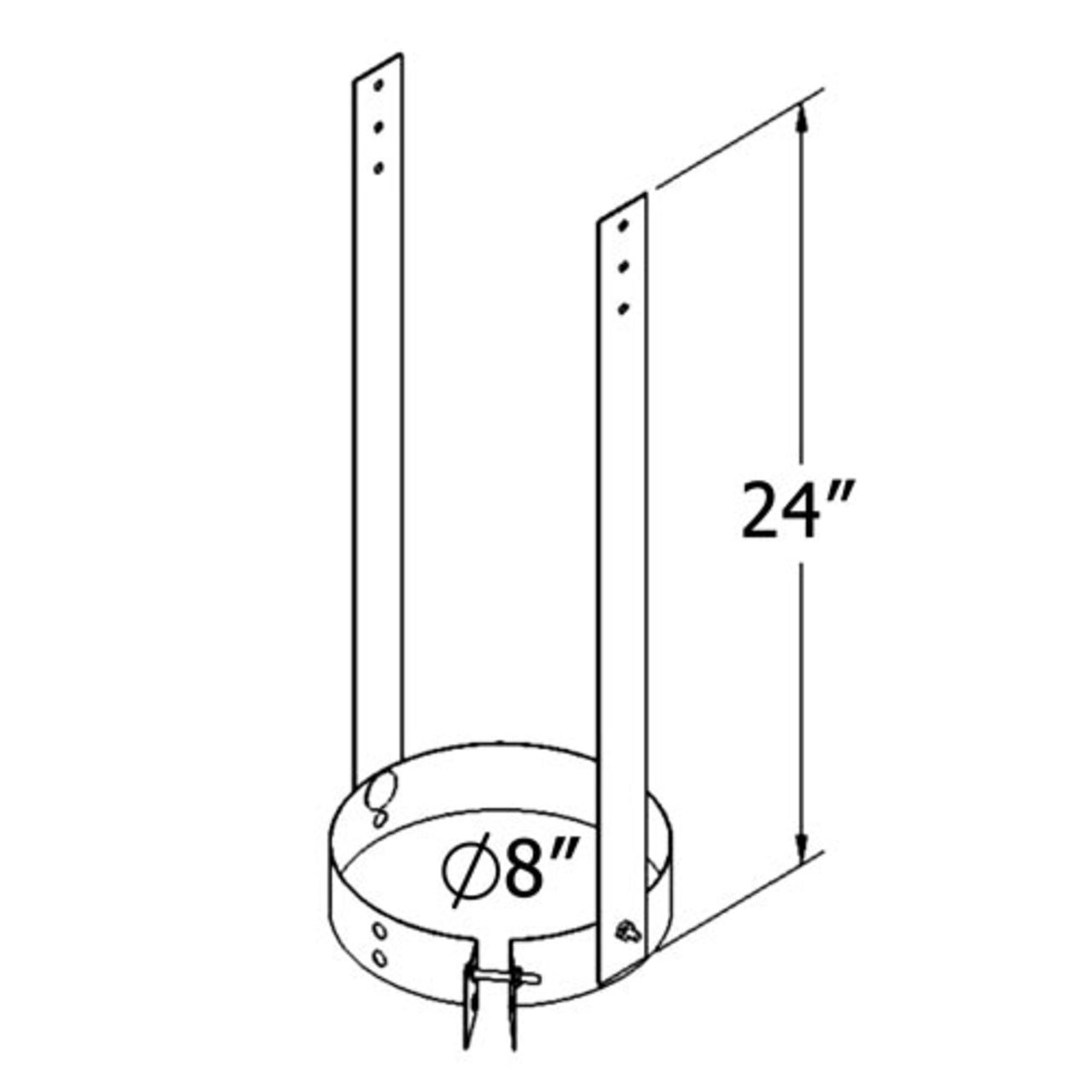

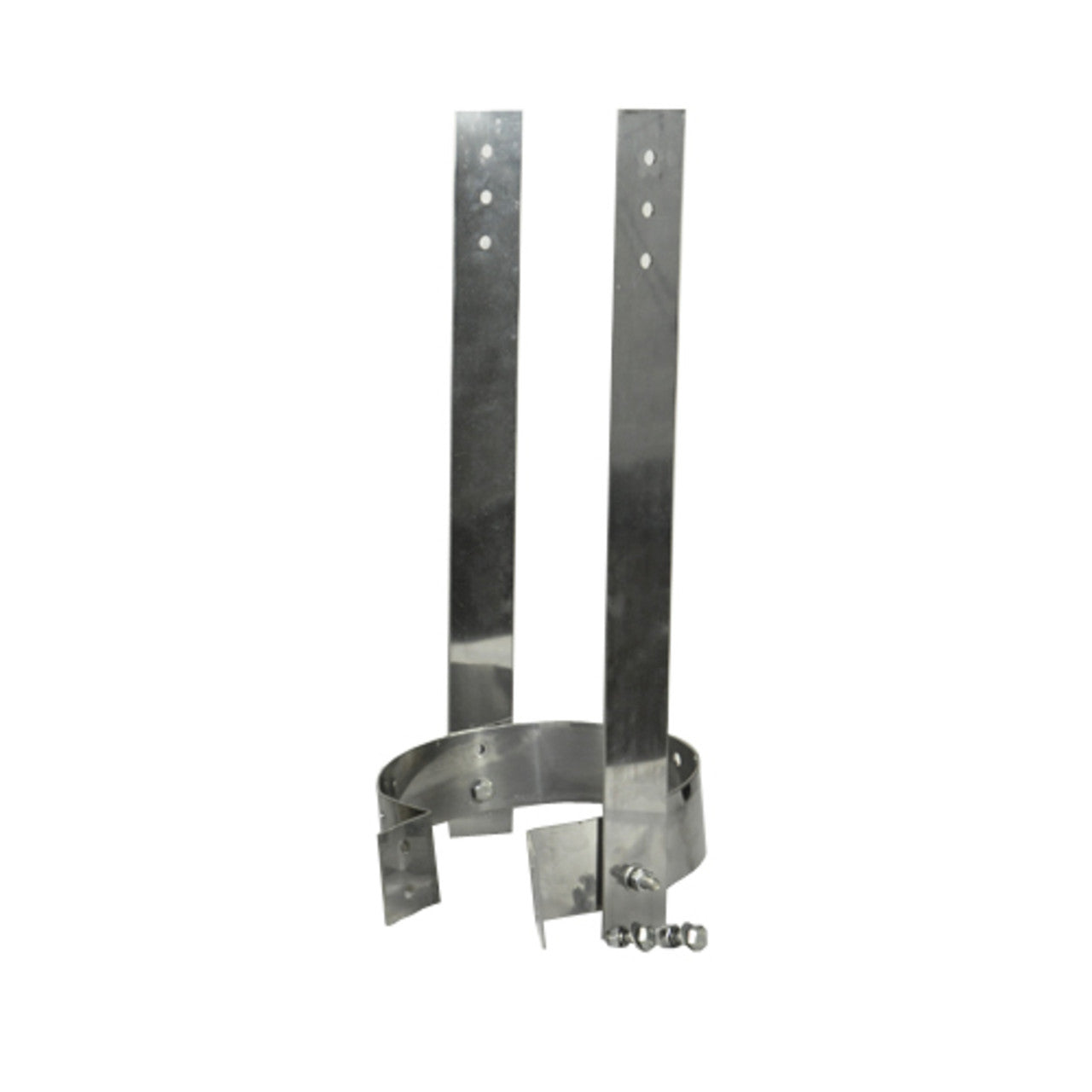

The Elbow Support Bracket is designed to transfer the weight of a chimney offset to nearby structural members. One or more Elbow Supports are required whenever an offset is made in the chimney system. The Elbow Support Bracket is also used as a lateral support when the chimney extends more than 5-ft above the roof if the chimney is not otherwise secured.
Additional Information:
Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between stainless steel walls to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall.
- Diameter: 6''
- Construction Material: .020'' type 304 Stainless Steel inner and outer walls
- Clearance: 2" clearance to combustibles
- Listings: ETL Listed by Intertek to the HT requirements of UL 103
- Twist-lock joints for ease of assembly and Locking Bands for securityHigh-Temperature, thin-fiber ceramic insulation blanket maintains superior draft performance
- Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire
